4.9.5.2.2TV Adjust
Note
This function is for some series only.
Here is for you to adjust TV output setup. See Figure 4- 202.
Please drag slide bar to adjust each item.
Click Apply or Save to complete setup.

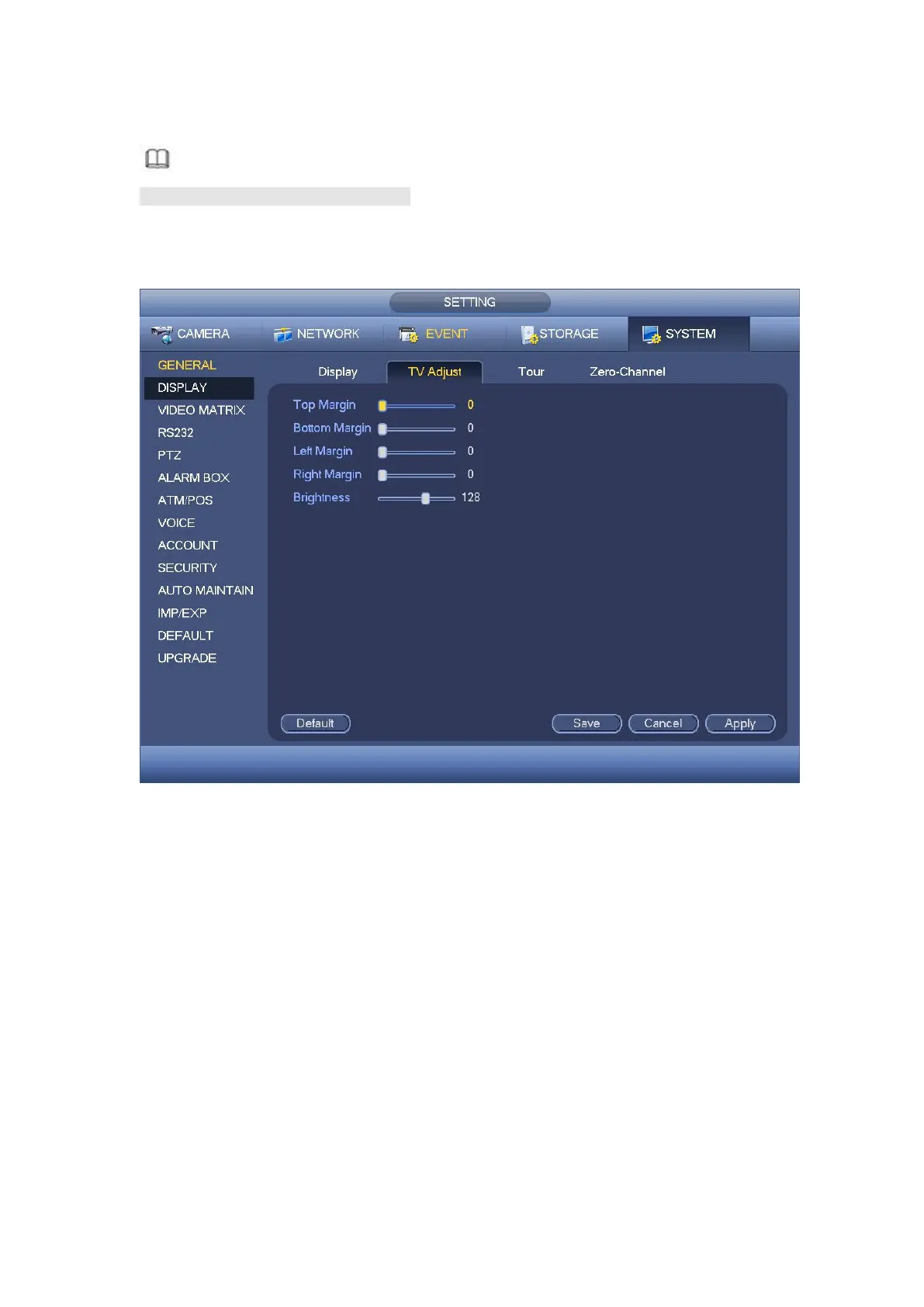

Figure 4- 202
4.9.5.2.3Tour
Here you can activate tour function. Click Setup button, you can see an interface shown
as in Figure 4- 203

Enable tour: Highlight box here to enable this function.

Interval: System supports 1/8/-window tour. Input proper interval value here. The
value ranges from 5-120 seconds. It is for schedule tour/alarm/motion detect tour.

Split: You can select window split mode from the dropdown list.

Channel group: It is to display all channel groups on current split mode. You can edit
and delete a channel group here. Double click an item in the list; you can edit its
channel group setup. Right now system max supports 32.

Add: Under specified window split mode, click it to add channel group.

Delete: Click it to remove selected channel group.

Move up: Click it to move current selected channel up.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
