Dahua XVR5116HS User Manual

463

Move down: Click it to move current selected channel down.

Default: Click it to restore default setup.
Tips:

Use mouse or Shift button to switch and button to enable /disable tour.
means the tour funciton is enabled and meas tour funciton is disabled.

On the navigation bar, click or to enable/disable tour function.

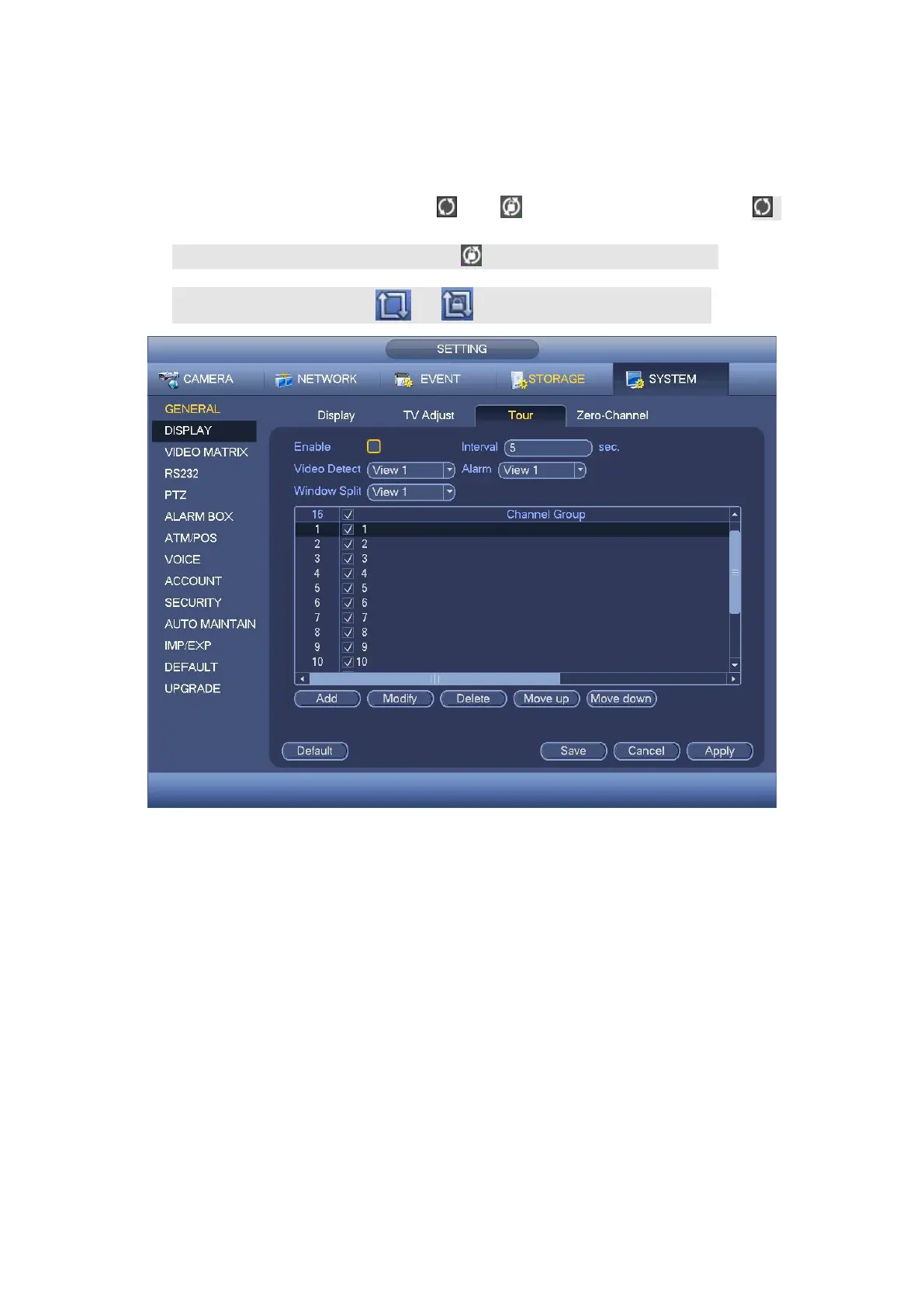

Figure 4- 203
4.9.5.2.4Zero-channel Encoding
Click zero-channel encoding button, you can go to the following interface. See Figure
4- 204. Here you can enable and set zero-channel encoding function so that you can view
several video sources at one channel.

Enable: This function is disabled by default. Check the box here to enable this
function so that you can control the zero-channel encoding function at the WEB.

Compression: System default setup is H.264. You can set according to device
capability.

Resolution: The resolution value may vary due to different device capabilities. Please
select from the dropdown list.

Frame rate: The frame rate value may vary due to different device capabilities.
Please select from the dropdown list.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
