Dahua XVR5116HS User Manual

547

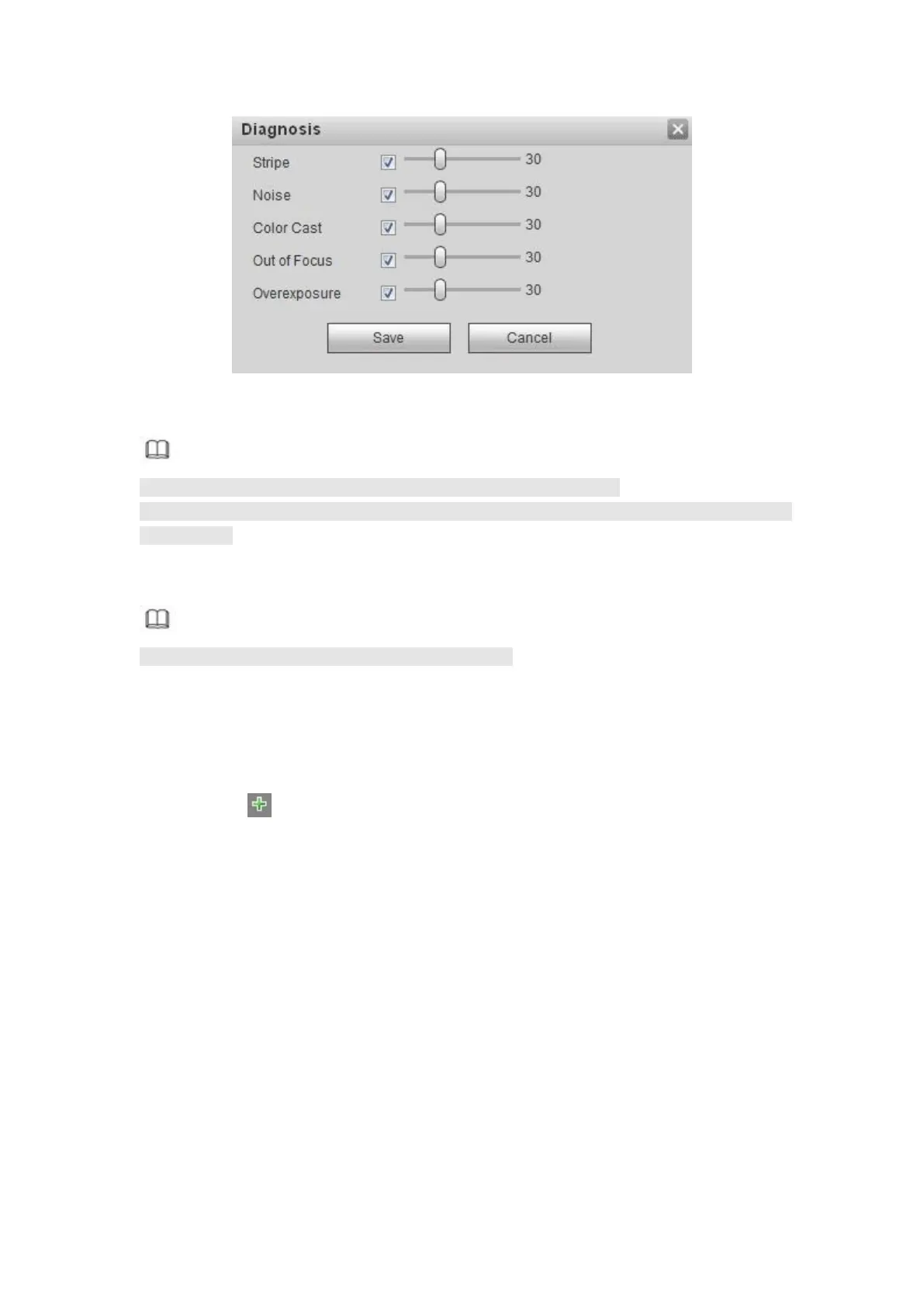

Figure 5- 76
Note
Video diagnosis alarm can trigger PTZ preset, tour, and pattern.
For detailed setups, please refer to chapter 5.10.3.1.1 motion detect for detailed
information.
5.10.3.2 IVS (Optional)
Note
Right now, the IVS function max supports 10 rules.
Once any object violate the rule, the DVR can trigger an alarm and alert you as the
specified alarm mode.
From main menu->Setup->Event->IVS, enter IVS interface. See Figure 5-77.
Please follow the steps listed below.
Step 1 Please select a channel from the dropdown list.
Step 2 Click and then select corresponding rule.
Step 3 Set rule type and set corresponding parameters.
Step 4 Check the box to enable the rule.
Step 5 Click OK button to save current setup.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
