Daikin ACS320 - Parameter Descriptions; Group 99: Start-Up Data

Parameter Descriptions
Parameter data is specic to ACS320 rmware version 4.01C.
Group 99: Start-Up Data
This group denes special Start-up data required to:
• Set up the drive.
• Enter motor information
NOTE: Parameters checked under the heading “S” can be
modied only when the drive is stopped.
Table 22: Group 99: Start-Up Data
Code Description Range Resolution Default S
9901 LANGUAGE 0...13 1 0 — — — —
Selects the display language.
0= ENGLISH 1= ENGLISH (AM) 2= DEUTSCH 3= ITALIANO 4= ESPAÑOL 5= PORTUGUES 6= NEDERLANDS 7= FRANCAIS 8= DANSK;
9= SUOMI 10= SVENSKA 11= RUSSKI 12= POLSKI 13= TÜRKCE 14= CZECH 15= MAGYAR
9902 APPLIC MACRO -1…15 1 1

Daikin uses the "HVAC" macro
9905 MOTOR NORM VOLT
115...345V
(200V, US)
230...690V
(400V, US)
288...862V
(600V, US)
1V
1V
1V
230V
460V
575V

Denes the nominal motor voltage.
• Must equal the value on the motor rating plate.
• Sets the maximum drive output voltage supplied to the motor.
• The ACH550 cannot supply the motor with a voltage greater than the mains voltage.
9906 MOTOR NOM CURR
0.15*
I
2N…
1.5*
I
2N
0.1 A 1.5*
I
2N

Denes the nominal motor current.
• Must equal the value on the motor rating plate.
• Range allowed: (0.2…2.0) · IN (where IN is drive current).
9907 MOTOR NOM FREQ
10.0…500
Hz
0.1 Hz
60 Hz
(US)

Denes the nominal motor frequency.
• Range: 10…500 Hz (typically 50 or 60 Hz)

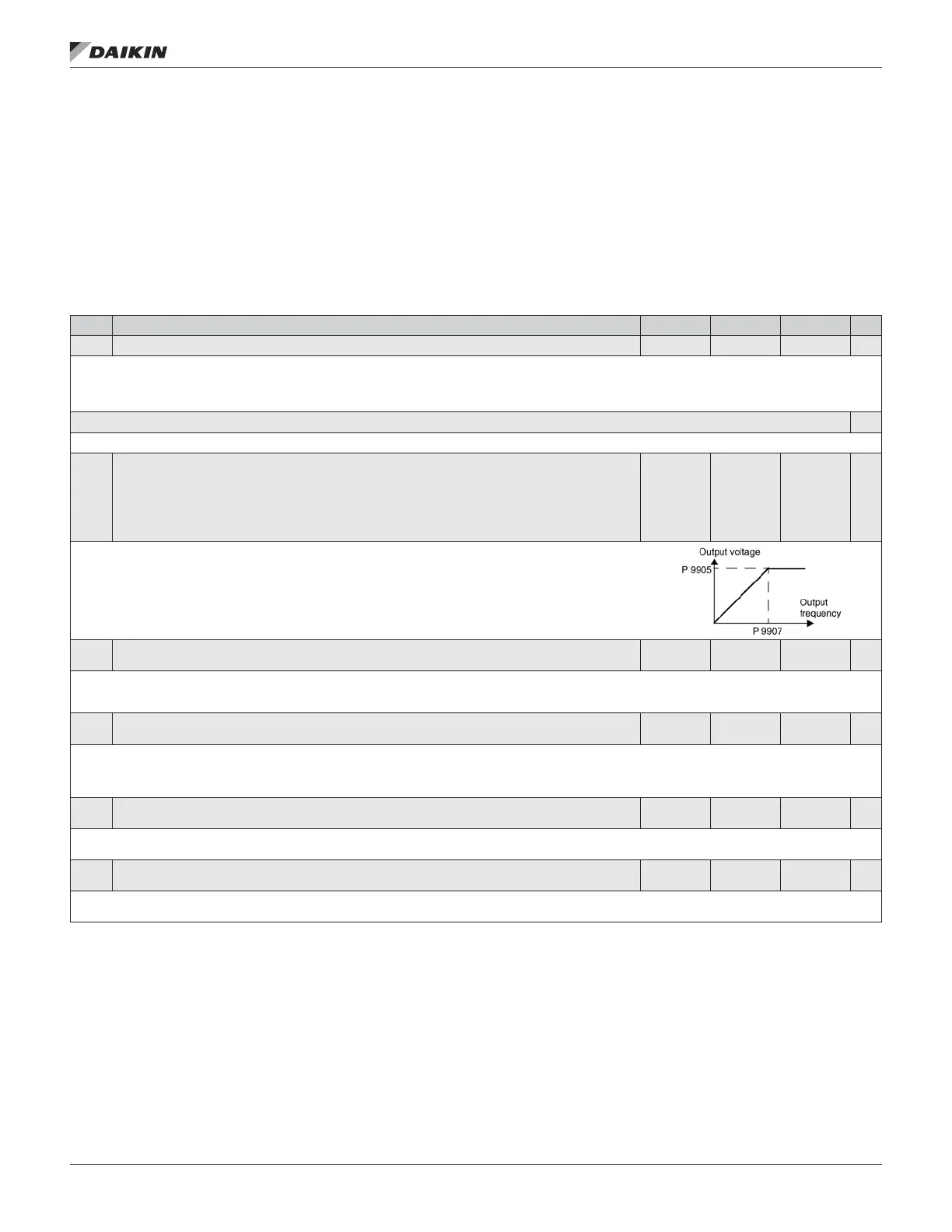

• Sets the frequency at which output voltage equals the MOTOR NOM VOLT.
• Field weakening point = Norm freq * Supply Volt / Mot Nom Vol
9908 MOTOR NOM SPEED
50…30000
rpm
1 rpm
Size
dependent

Denes the nominal motor speed.
• Must equal the value on the motor rating plate.
9909 MOTOR NOM POWER 0.15…1.5*P
N
0.1 Hp
0.2 HP
(US)

Denes the nominal motor power.
• Must equal the value on the motor rating plate.
