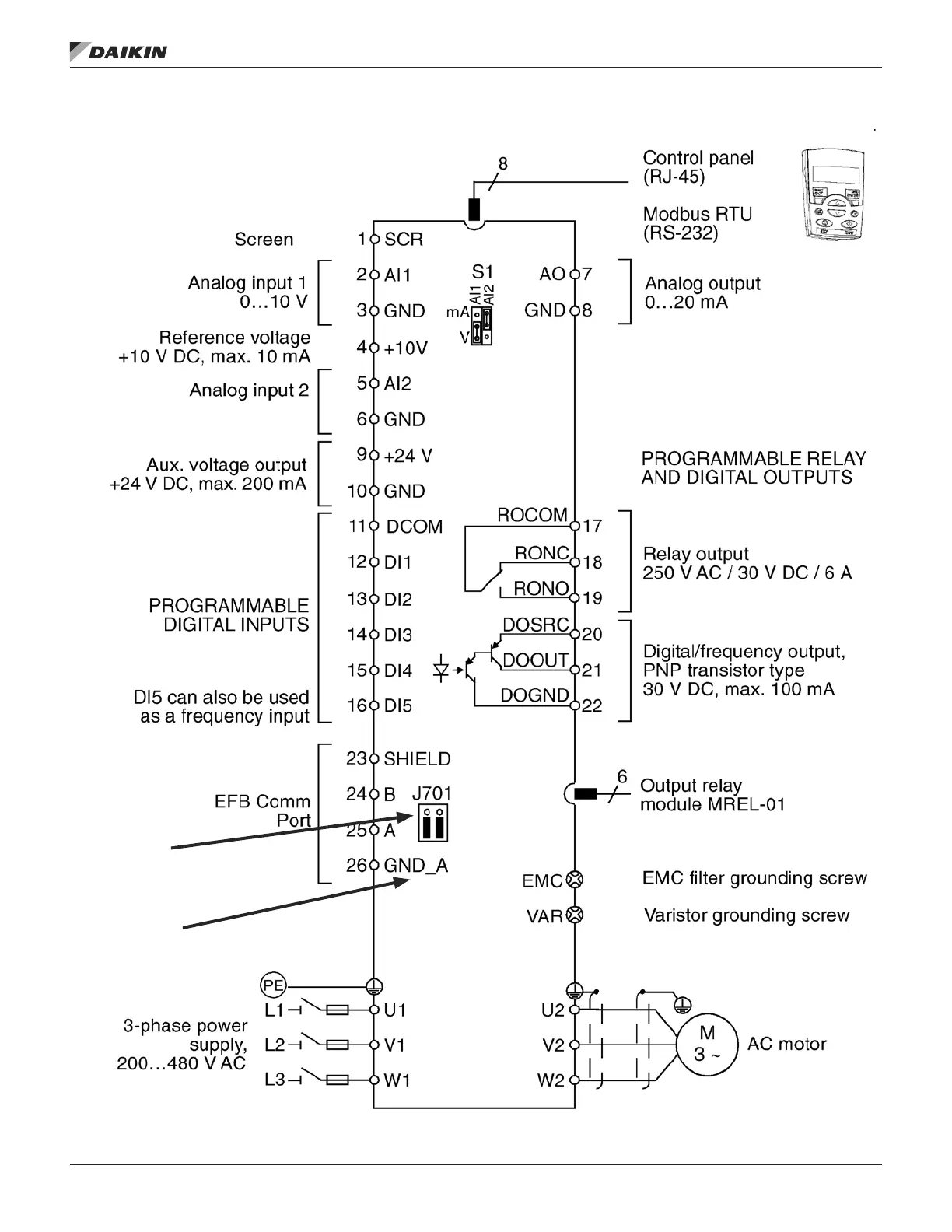

Figure 3: Overview of connections
J701 Switch
Termination
for RS-485
Communication
GND A for RS-485 Shield
Wire Termination in 2-Wire
Shielded Cable System
Wiring
operaTIon prInCIple/Hardware desCrIpTIon
www.DaikinApplied.com 9 OM 1190-1 • MD4 VFD
