Xtium-CLHS PX8 User's Manual Technical Specifications
79
DH40-27S Cable to Blunt End (OR-YXCC-27BE2M1, Rev B1)
Cable assembly consists of a 2000 mm (~6 ft.) blunt end cable to mate to Xtium external
connector J1. Note: The applicable wiring color code table is included with the printed Product
Notice shipped with the cable package — no other wiring table should be used.
Important: Cable part number OR-YXCC-27BE2M0 rev.3 is obsolete and should not be used with
any Xtium series boards.

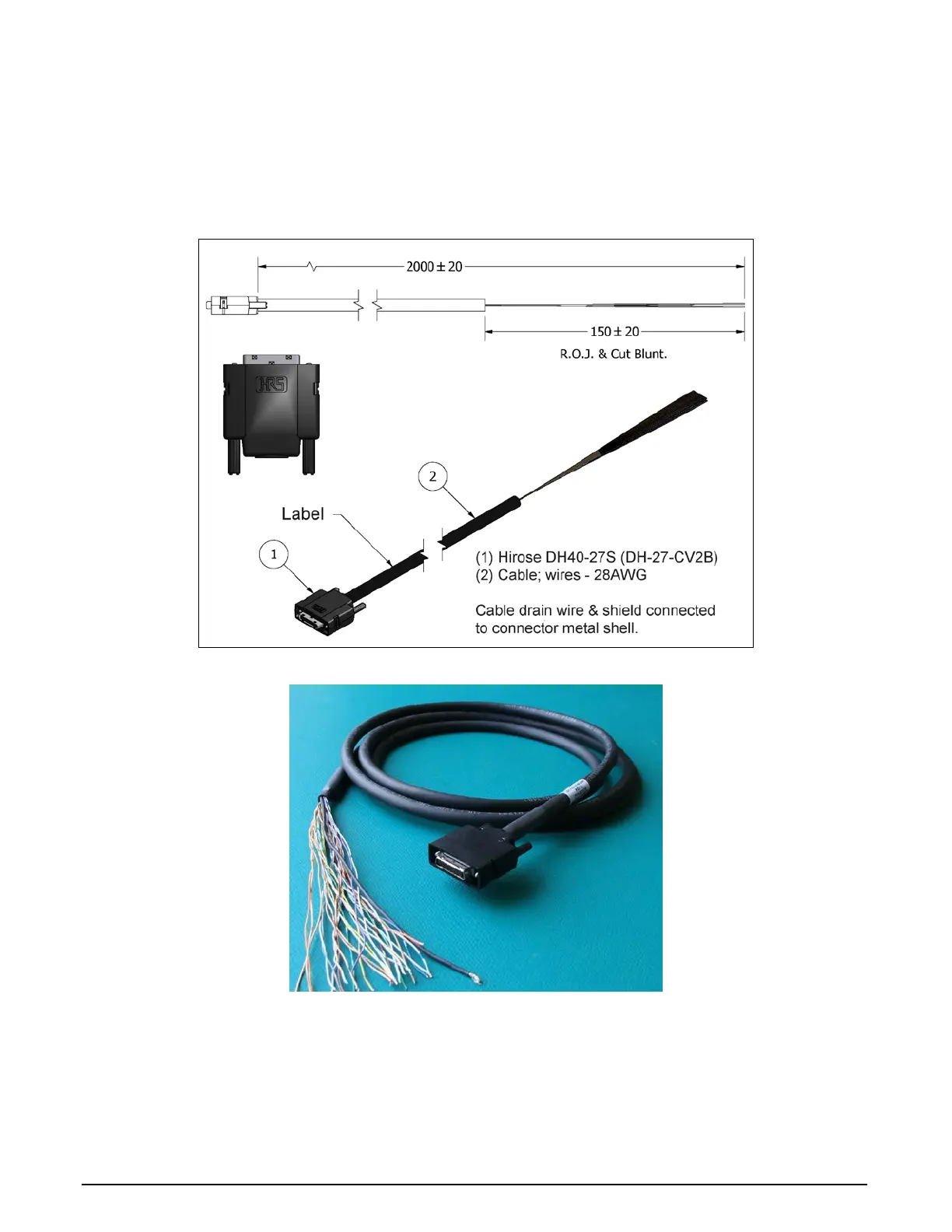

Figure 32: DH60-27P Cable No. OR-YXCC-27BE2M1 Detail
Figure 33: Photo of cable OR-YXCC-27BE2M1
