Xtium-CLHS PX8 User's Manual Technical Specifications
83
Power Cable Assembly OR-YXCC-PWRY00
When the Xtium-CLHS PX8 supplies power to external devices via the J1 I/O connector, PC power
must be connected to the Xtium external power source connector (J7).
Recent computer power supplies provide multiple 6-pin power source connectors for PCI Express
video cards, where one is connected to J7 on the Xtium-CLHS. But if the computer is an older
model, this power supply adapter converts 2 standard 4-pin large power connectors to a 6-pin
power connector.

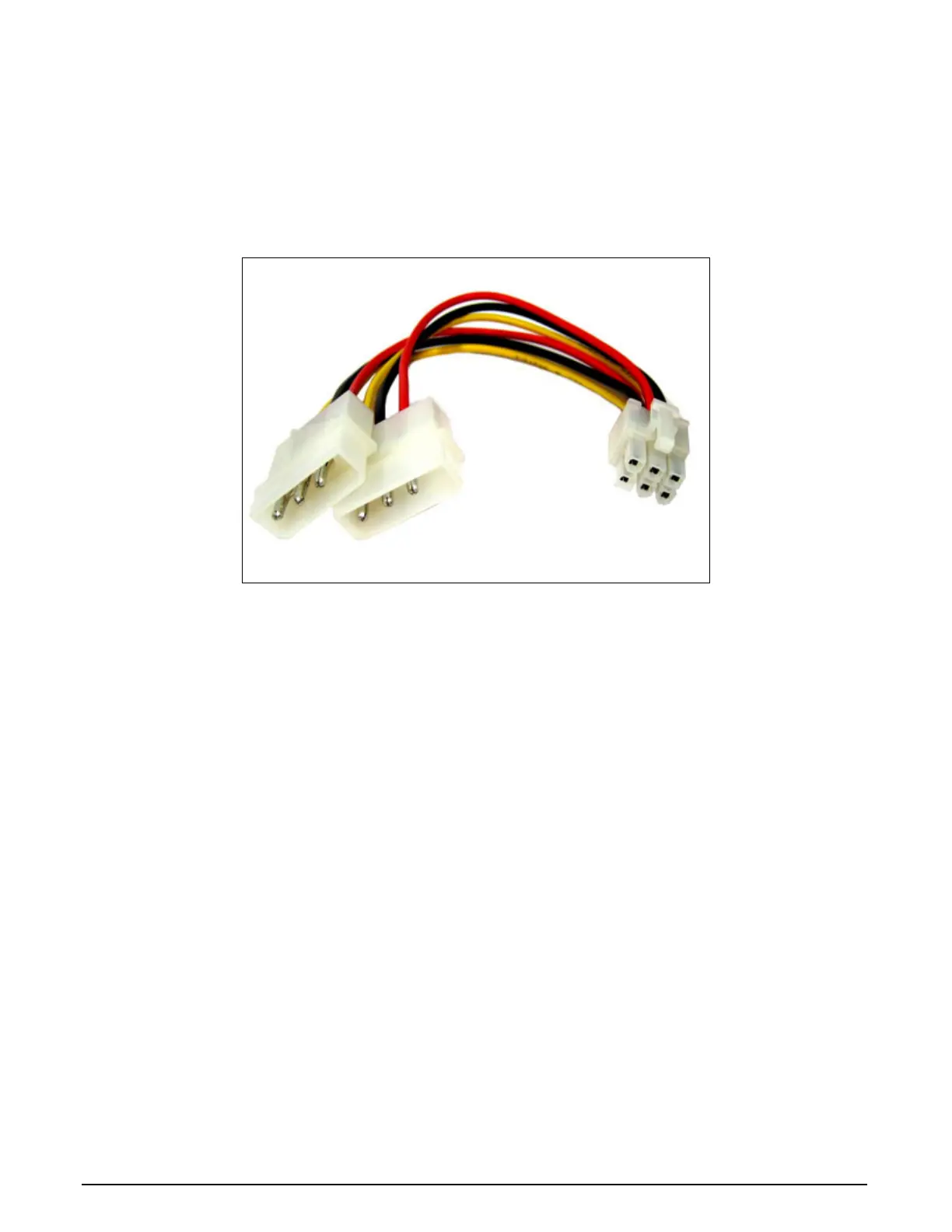

Figure 36: Photo of cable assembly OR-YXCC-PWRY00
This is an industry standard adapter cable which can be purchased from Teledyne DALSA.
