Technical Specifications Xtium-CLHS PX8 User's Manual
Board Sync Cable Assembly OR-YXCC-BSYNC40
This cable connects 3 to 4 Xtium boards for the board sync function as described in section J5:
Multi-Board Sync / Bi-directional General I/Os. For a shorter 2 board cable, order cable assembly
OR-YXCC-BSYNC20.
For a third part source of cables, see http://cloud.samtec.com/catalog_english/FFSD.PDF.

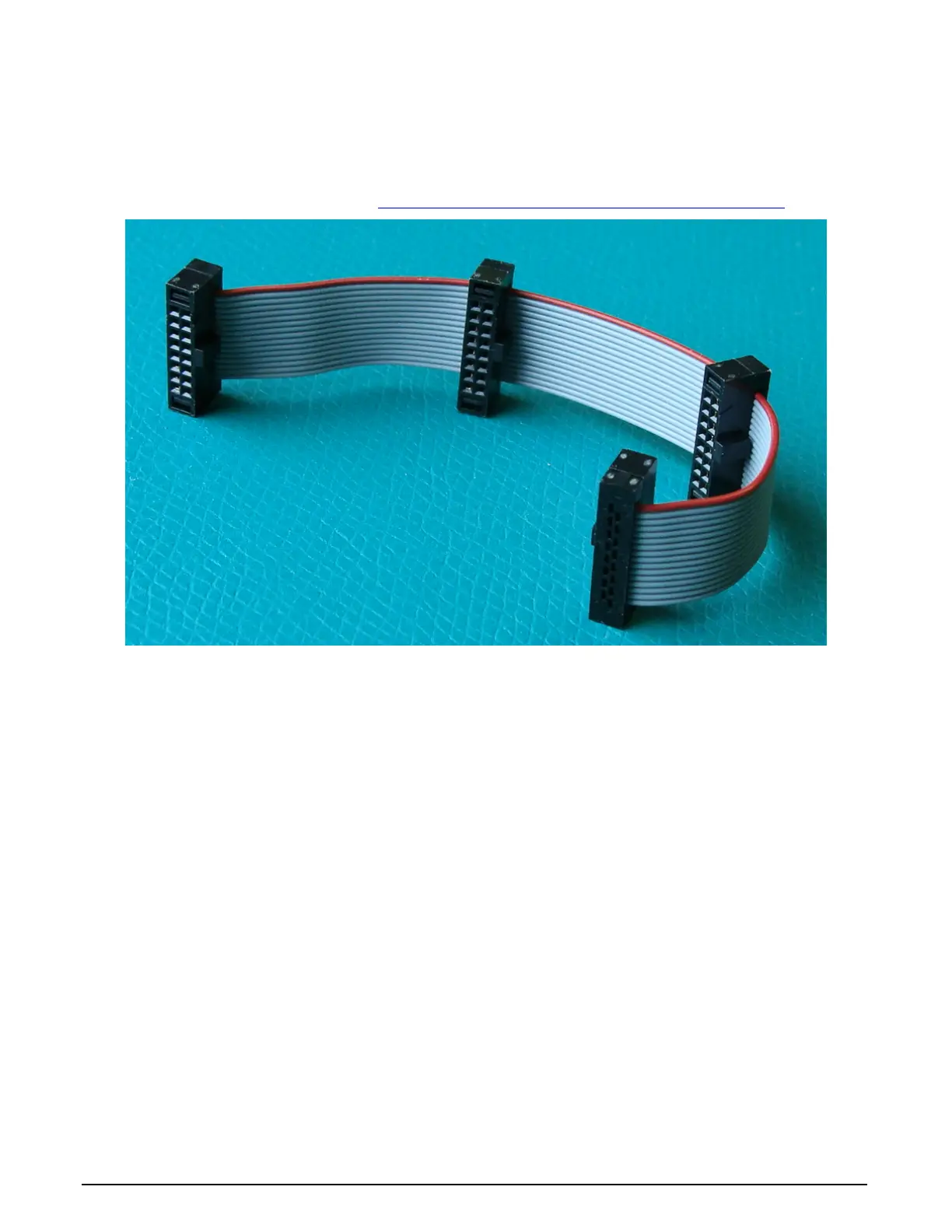

Figure 35: Photo of cable OR-YXCC-BSYNC40
