RS.8D.M1.22 AK2-SC 255 Reference Manual 111

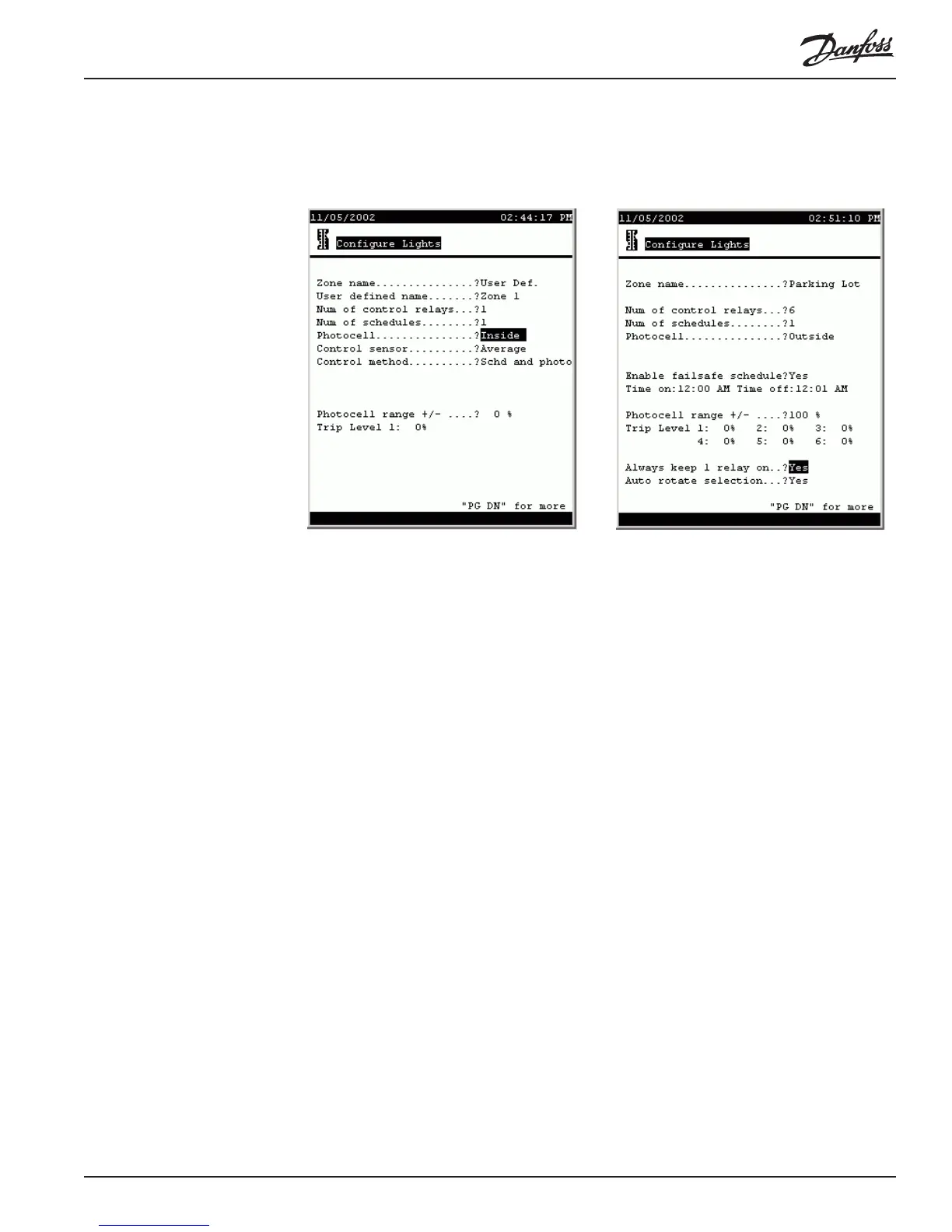

press enter. The first page of the setup screen is shown in the illustrations below: on
the left for an inside photocell, and on the right for an outside photocell. In the screen
on the left, a user-defined zone name has been chosen. On the right, one of the listed
zone names has been chosen.
Zone name (List box: ) A great variety of typical names are
included in the box that pops up, plus “User Def.” that
allows the next line.
User defined name (Label box; any 11 characters)
Num of control relays (0 to 6) The number of relays controlled by the lighting
point.
Num of schedules (0 to 8) The number of schedules for this point.
Photocell (List box:)
Inside: The point’s photocell(s) are indoors.
Outside: A single photocell is located outdoors.
None: This point has no photocell.
Control sensor (List box:)
Min: The lowest-reading photocell at any given time
will be used as the control sensor.
Max: The highest-reading photocell at any given
timewill be used as the control sensor.
Average: All photocells are averaged, and the aver-
age value is used as the control sensor value.
Photocell ID#1 (etc.): If any specific photocell is
selected , its value alone will be used as the control
sensor value.
Control method (List box:)
Schd and photo: For this point to be on, two condi-
tions have to be satisfied: (1) the schedule must be
true; and (2) the photocell must be above trip level.
Once those two conditions are satisfied, the pre-delay
