The setpoints for the embedded Bitzer alarms are fixed in the compressor electronics
and are only monitored for occurrence by the SC 255. The alarms are virtually self-
explanatory. For further information, consult literature supplied by the compressor
manufacturer.
HVAC alarm

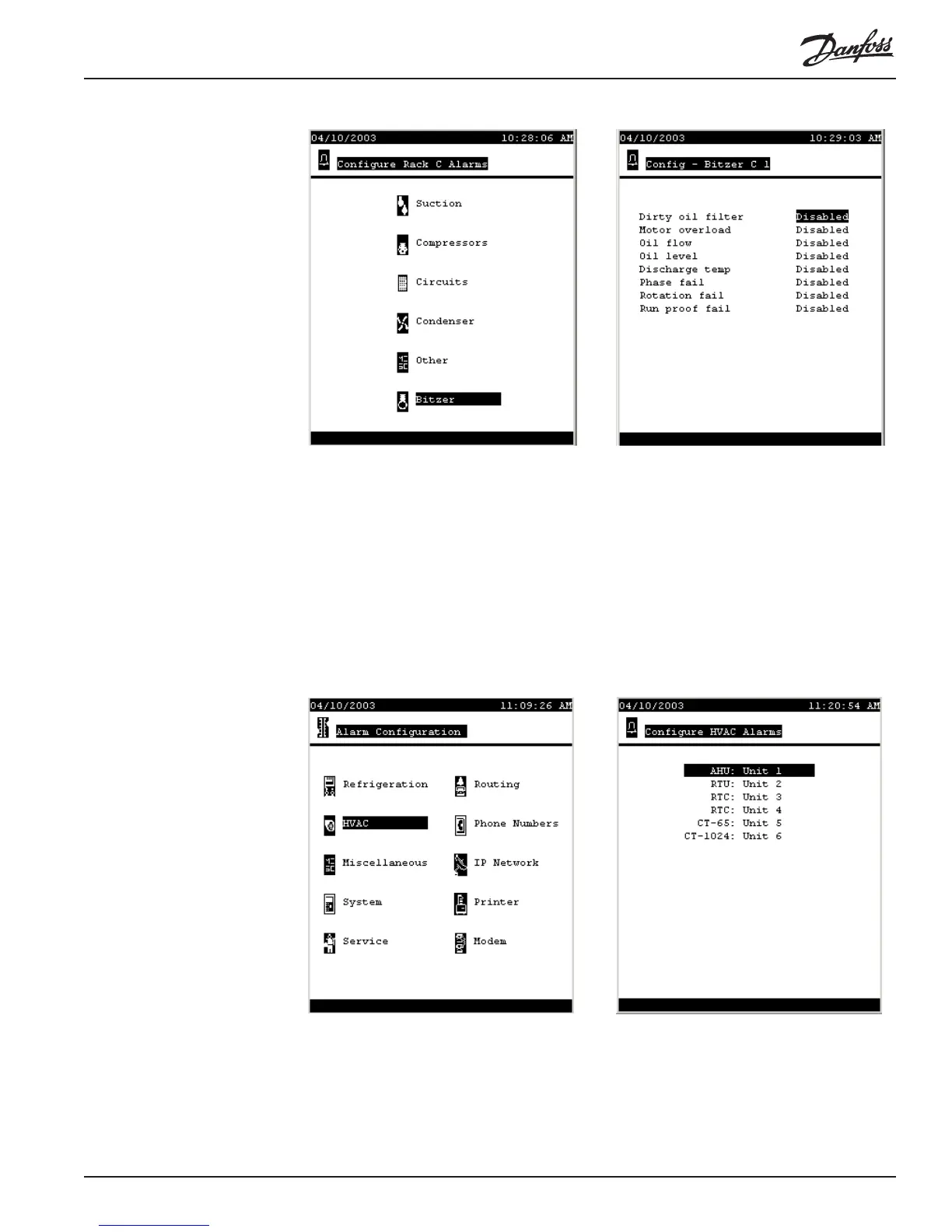

configuration The navigational route to HVAC alarm configuration is as follows: from the Main
Menu, select Configuration, then Alarms, then HVAC. The alarm configuration
menu is shown at left below. When you select HVAC from the alarm configuration
menu, a list menu headed Configure HVAC Alarms will appear. It will list every
HVAC unit that you have configured. Such a list screen appears at right below. For
this very unlikely store we have configured one unit of every type.
The unit types listed are as follows:
AHU Air handling unit. A built-up system.
RTU Rooftop unit. A packaged rooftop unit.
RTC Rooftop controller. Any HVAC system
controlled by a Danfoss (networked or
standalone) RTC board.
