RS.8D.M1.22 AK2-SC 255 Reference Manual 57
AKC 16x circuits

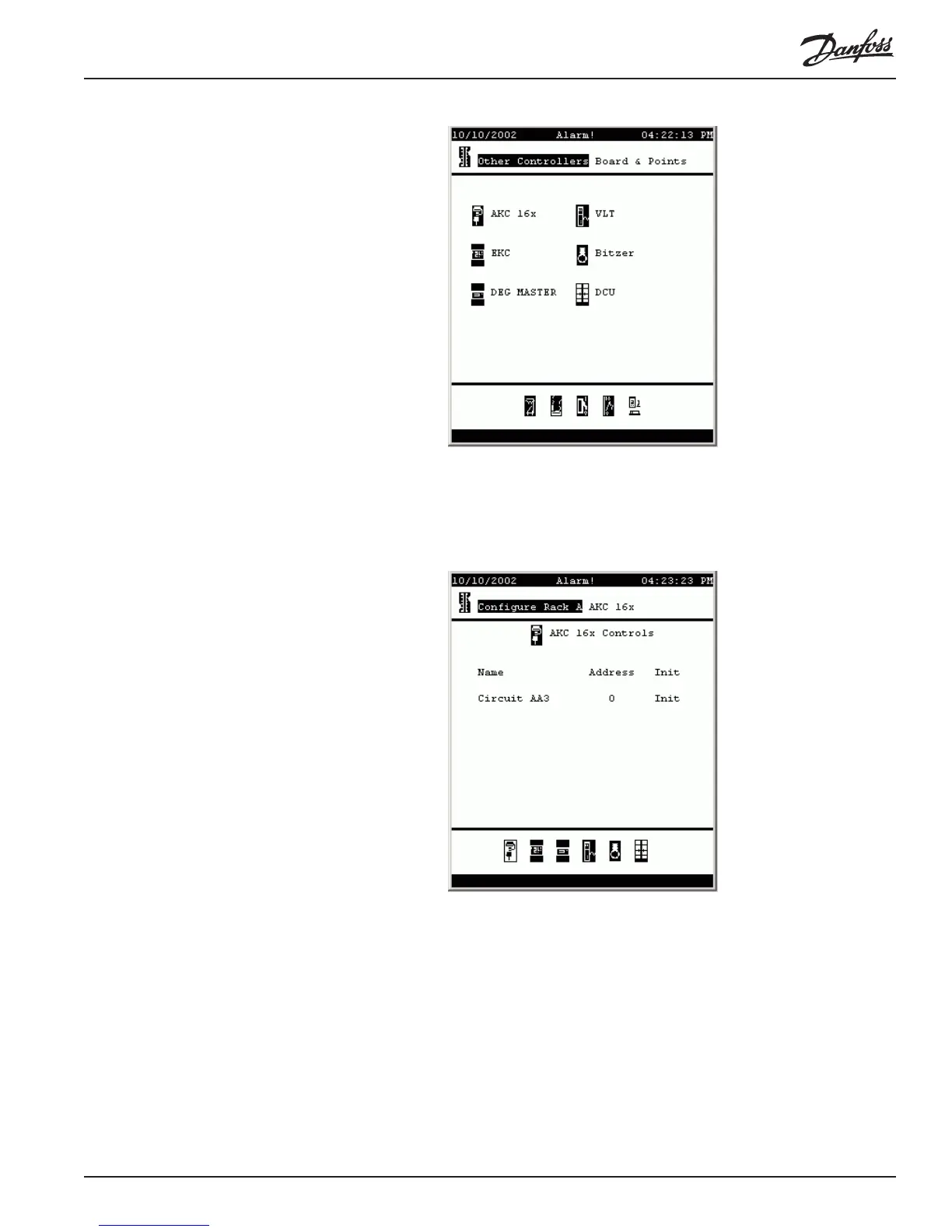

Board & Points You will also see these icons at the bottom of any of the Other Controllers screens.
Selecting the first one, whether from the menu or from the bottom of the screen,
produces the related configuration screen. Here’s the one for AKC 16x Smart Case
Controllers:
The fields and contents are:
Name (Label field; any 15 characters) The name of the
evaporator being controlled by the AKC 16x. (AKC
16x refers to AKC 161, AKC 164, or AKC 165
controllers, whichever is configured on each node.)
The default names for the AKC 16x circuits automati-
cally added during configuration of refrigeration are
shown, and will suffice in many applications. They can
be edited character by character (put the cursor on the
field, press +/- to change to edit mode; then use the left
