RS.8D.M1.22 AK2-SC 255 Reference Manual 51

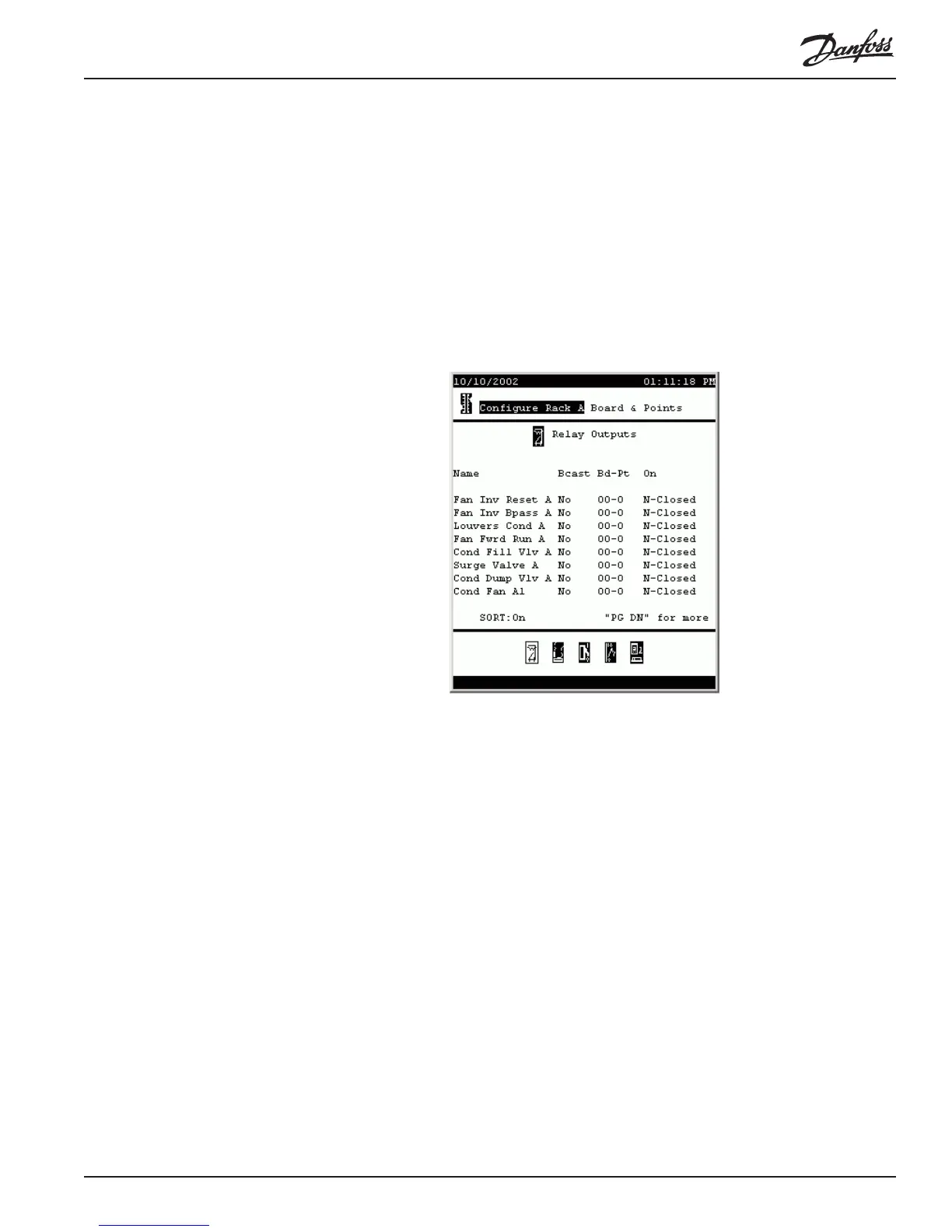

Navigation Notice that at the bottom of each of the Board & Points screens there is a row of
icons. Select one of these and you will be taken to the Board & Point configuration
page for a particular type of input or output. From left to right, the icons represent the
following:
Digital outputs (relay outputs)
Analog inputs (sensor inputs)
Digital inputs (on-off inputs)
Analog outputs (variable outputs)
Other controllers (AKC 16x, EKC, Degree Master, and DCU
case controllers; VLT drives and Bitzer compressor interface)
Board & Points
Relay outputs
(Digital outputs) Name (15 characters, any) The name of the load connected
to the digital output (relay output). The default names
for the outputs automatically added during configura-
tion of refrigeration are shown, and will suffice in many
applications. They can be edited character by charac-
ter (put the cursor on the field, press +/- to enter edit
mode; then use the left and right arrow keys to move
from space to space and the up and down arrow keys
to select the character for that space. When the name
appears as you want it, press ENTER).
Bcast (List box:)
No: The value of the point will not be broadcast to be
used in logic on other controllers.
Send: The value of the point (whether it is ON or
OFF) will be available on the host network for use by
other controllers. Be sure that each sending Board-
Point combination is unique throughout the system. (If
the controller at address #01 is sending from its Bd-Pt
address 1-02, then no other controller can have an
output at its Bd-Pt address 1-02 sending.
