RS.8D.M1.22 AK2-SC 255 Reference Manual 175
Defrost: The circuit is undergoing a scheduled defrost.
Manual: The circuit has been set manually on or manually off
by means of the service screen.
Shutdown: The circuit is in a scheduled shutdown.
The remaining fields are self-explanatory.

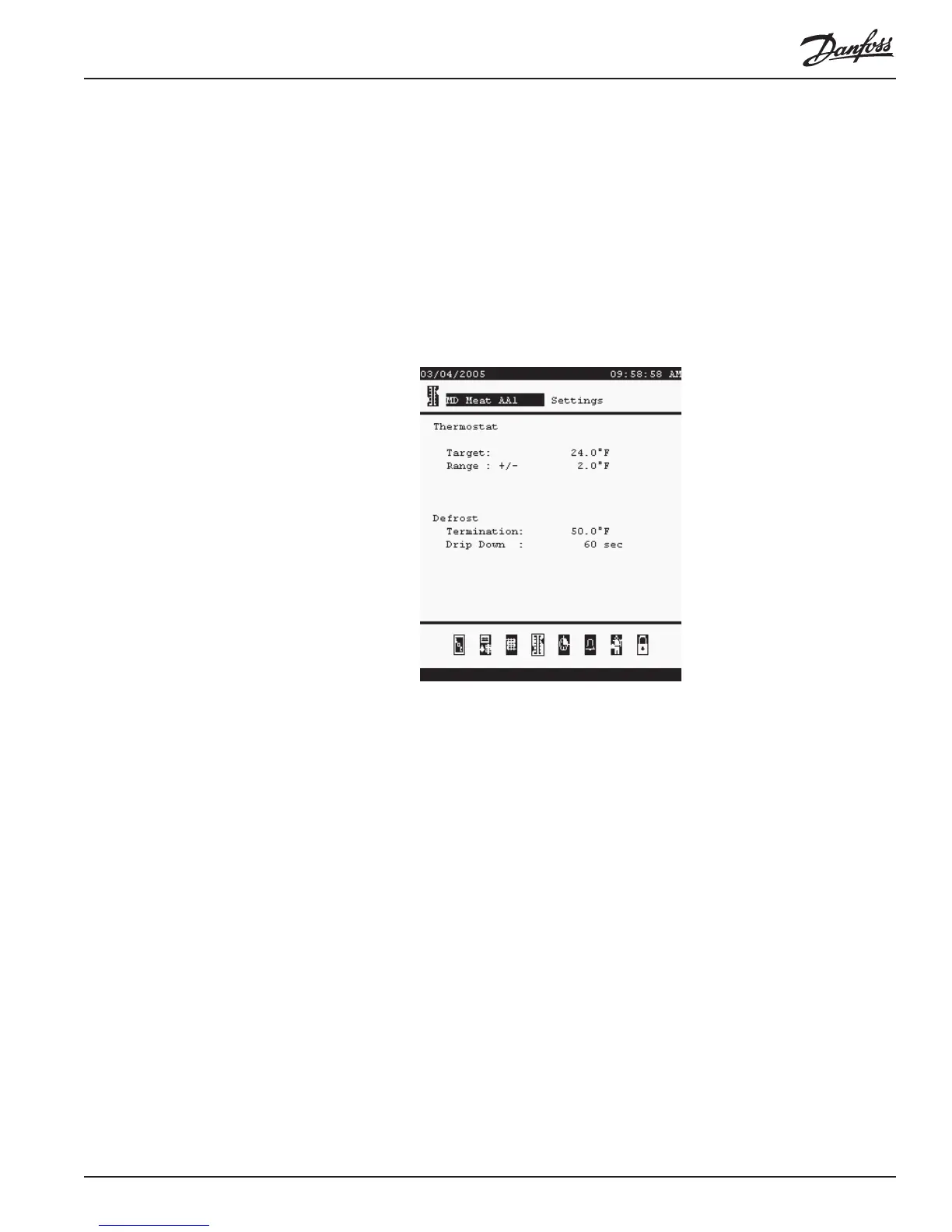

Evaporator Settings
Screen The settings screen, reached by selecting the settings icon at the bottom of the screen,
shows and allows changes to settings for refrigeration and defrost:
Evaporator Schedules
Screen The evaporator schedules screen shows defrost schedule information and allows
changes to number of defrosts, duration, and start times.
Evaporator Alarms
Screen The evaporator alarms screen lists all active alarms for the circuit.
Evaporator Service
Screen The evaporator service screen is covered in
