RS.8D.M1.22 AK2-SC 255 Reference Manual 125

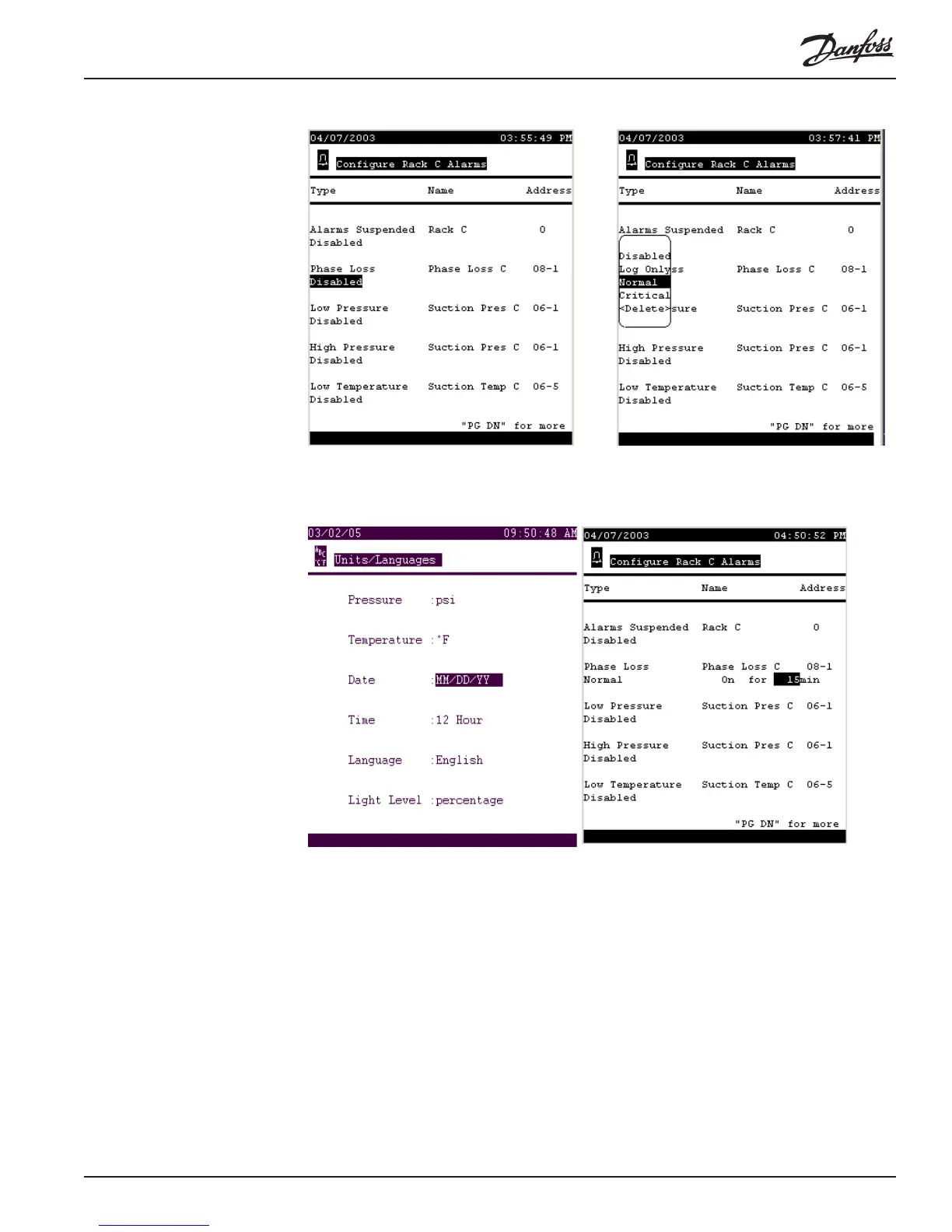

Notice that in the screen at right (above), we have moved the cursor to Normal in
the list box. When we press ENTER, the level selection is complete, and a condition
appears under the name of the alarm, as seen at left below.
After choosing an action level for the alarm, move the cursor to the next changeable
field. Because we are configuring a digital alarm that is constrained to a value of On,
the only remaining fields we can change are for the time. The numeric value can be
set to any number from 1 to 9999, and in our example we have entered 1. The field
for the time units has a list box (as seen below) from which you can choose sec, min,
or hour. For the Phase Loss alarm, 1 minute is an appropriate setting, so we leave the
field reading min.
