54 AK2-SC 255 Reference Manual RS.8D.M1.22
CPC501-1121 CPC type 501-1121 temperature
sensor.
Elm Elm temperature sensor.
HGM CHAN Provides channel information for a
multi-zone Yokogawa leak detector.
HGM LEAK Provides refrigerant ppm for the
channel given by HGM CHAN.
10A CT Danfoss 10A current transformer.
150A CT Danfoss 150A current transformer.
200A CT Danfoss 200A current transformer.
Percent Any 1 to 10 Vdc sensor (readout 0 to 100%).
Leak Danfoss leak sensor.
SORT At the bottom of the body of the screen (above the
icons, on the same line as “PG DN” for more is the
SORT field. By default, sort mode is on, and entries
will be sorted by Bd-Pt address; if sort mode is turned
off, points will be listed from then on in the order in
which they were created. The sorting occurs when you
press EXIT and will be apparent the next time you
enter the screen.

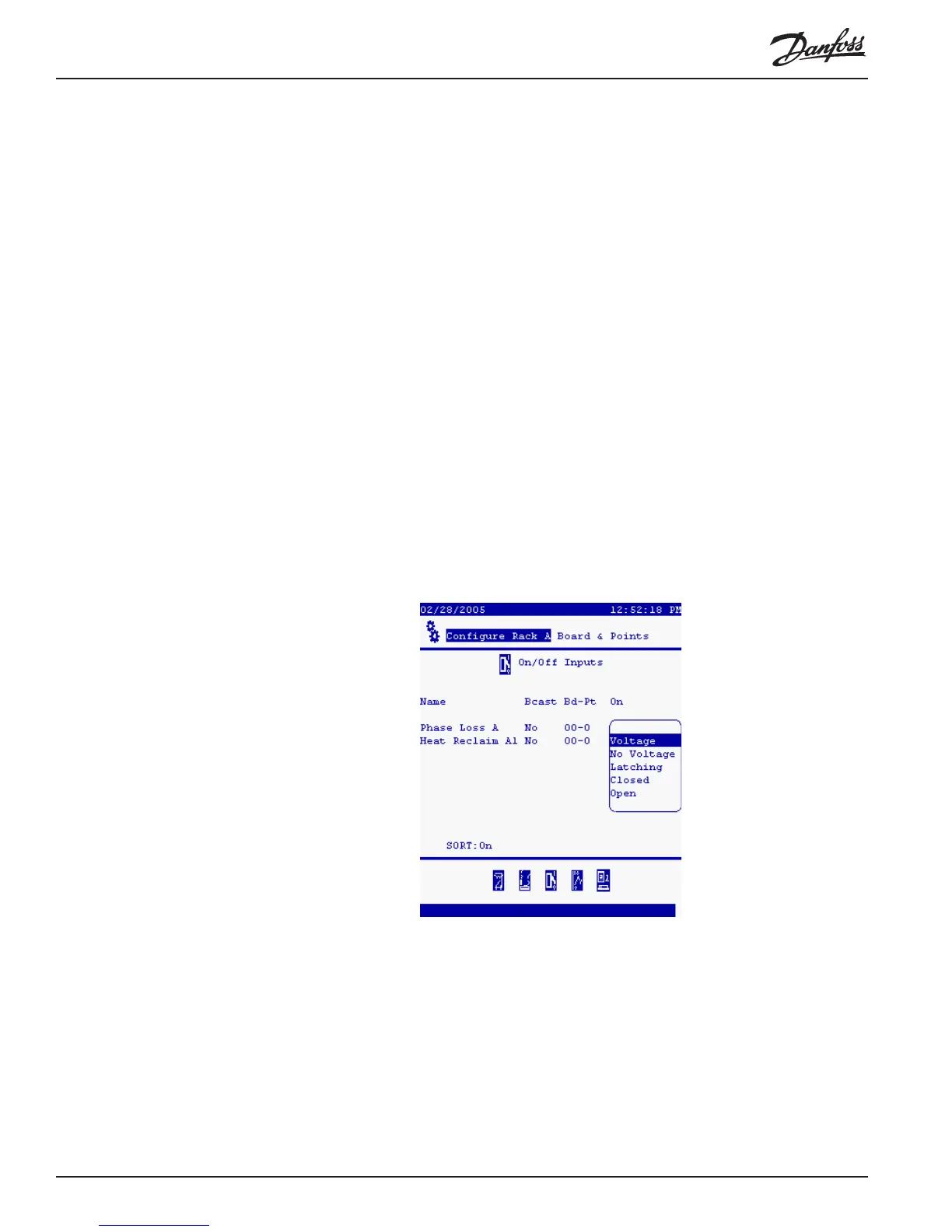

Board & Points
On-off inputs
(Digital inputs)
Name (Label field; any 15 characters) The name of the load
sensed by the digital input (on-off input). The default
names for the inputs automatically added during
configuration of refrigeration are shown, and will
suffice in many applications. They can be edited
character by character (put the cursor on the field,
press +/- to change to edit mode; then use the left and
right arrow keys to move from space to space and the
up and down arrow keys to select the character for
that space. When the name appears as you want it,
