Rec: The value of the point is being received from
another controller on the host network. You must enter,
in the Bd-Pt fields, the Bd-Pt address of the sending
point.
Bd-Pt First enter the address of the RO board and point to
which the load is wired, or, in the case of a received
broadcast point, enter the board and point address of
the sending point.
On (List box:)
N-Closed The load on this point is wired through its
normally closed contacts.
N-Open The load on this point is wired through its
normally open contacts.
SORT At the bottom of the body of the screen (above the
icons, on the same line as “PG DN” for more is the
SORT field. By default, sort mode is on, and entries
will be sorted by Bd-Pt address; if sort mode is turned
off, points from then on will be listed in order of
creation. The sorting occurs when you press EXIT and
will be apparent the next time you enter the screen.

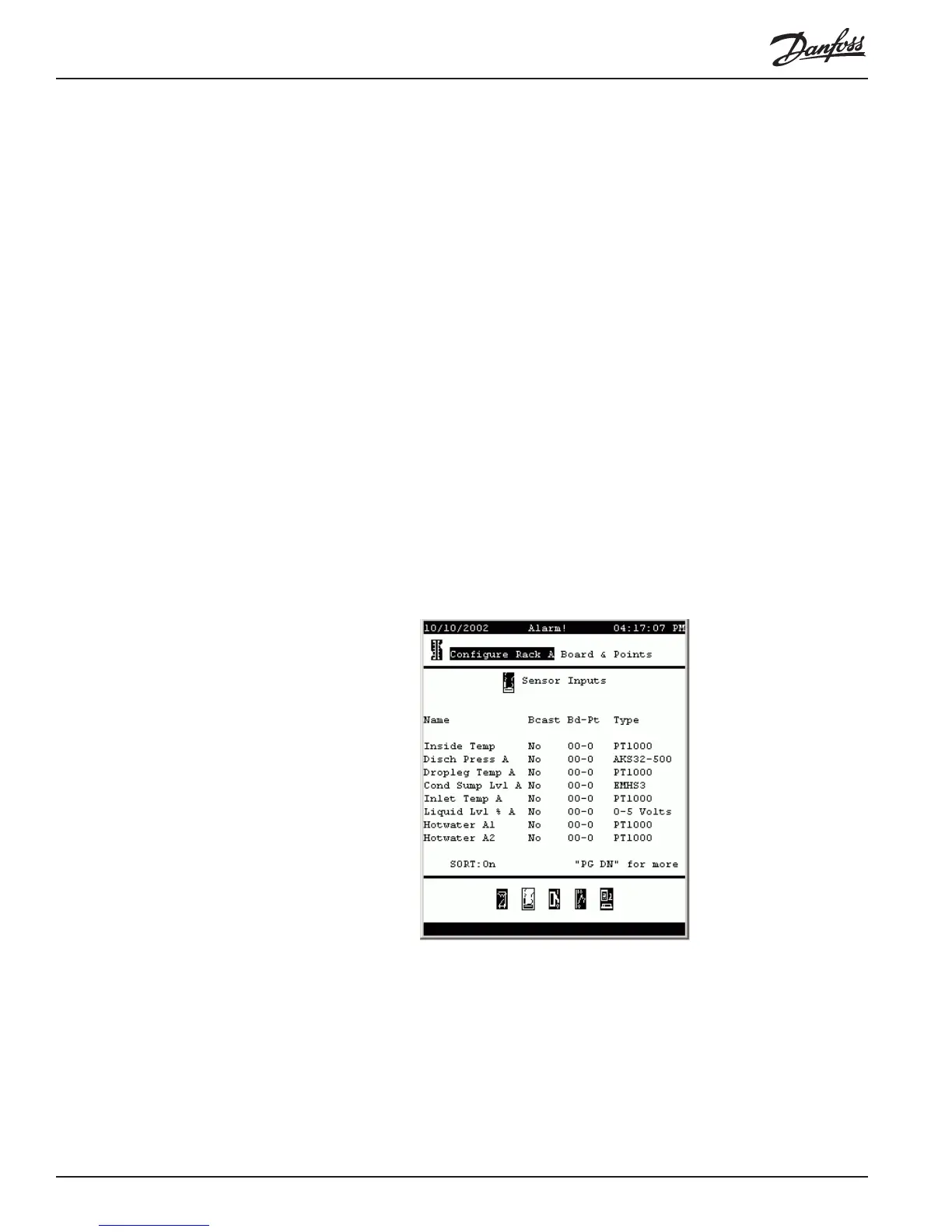

Board & Points
Sensor inputs
(Analog inputs)
Name (Label field; any 15 characters) The name of what is
being measured by the analog input (sensor input).
The default names for the sensors automatically added
during configuration of refrigeration are shown, and
will suffice in many applications. They can be edited
character by character (put the cursor on the field, and
press +/- to enter edit mode; then use the left and right
arrow keys to move from space to space and the up
and down arrow keys to select the character for that
To Next Page
