152 AK2-SC 255 Reference Manual RS.8D.M1.22

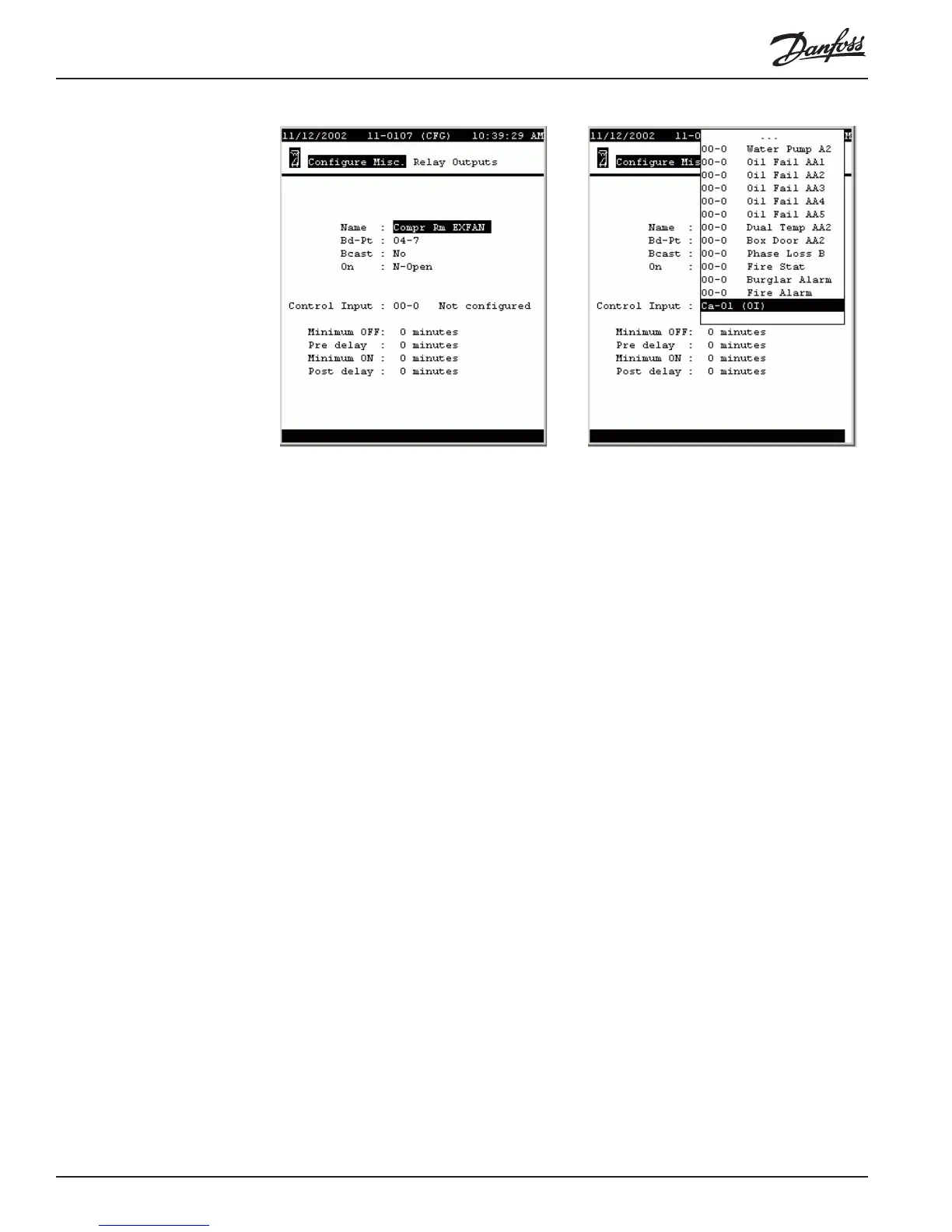

It is not necessary to change anything in the top half of this screen, which repeats the
configuration we entered on the previous page (though we could change it here if we
wanted). There are two things to add to configuration here.
Control Input (List box: all configured OIs) Our new calculated OI
is found at the bottom of the list. (Use the three dots at
the top or bottom to move up or down the list.) a page
at a time.
The other fields on the screen are timers. To keep the exhaust fan from cycling too
rapidly when the temperature is hovering near the setpoint, we will set a 10 minute
post delay. The finished screen looks like this:
