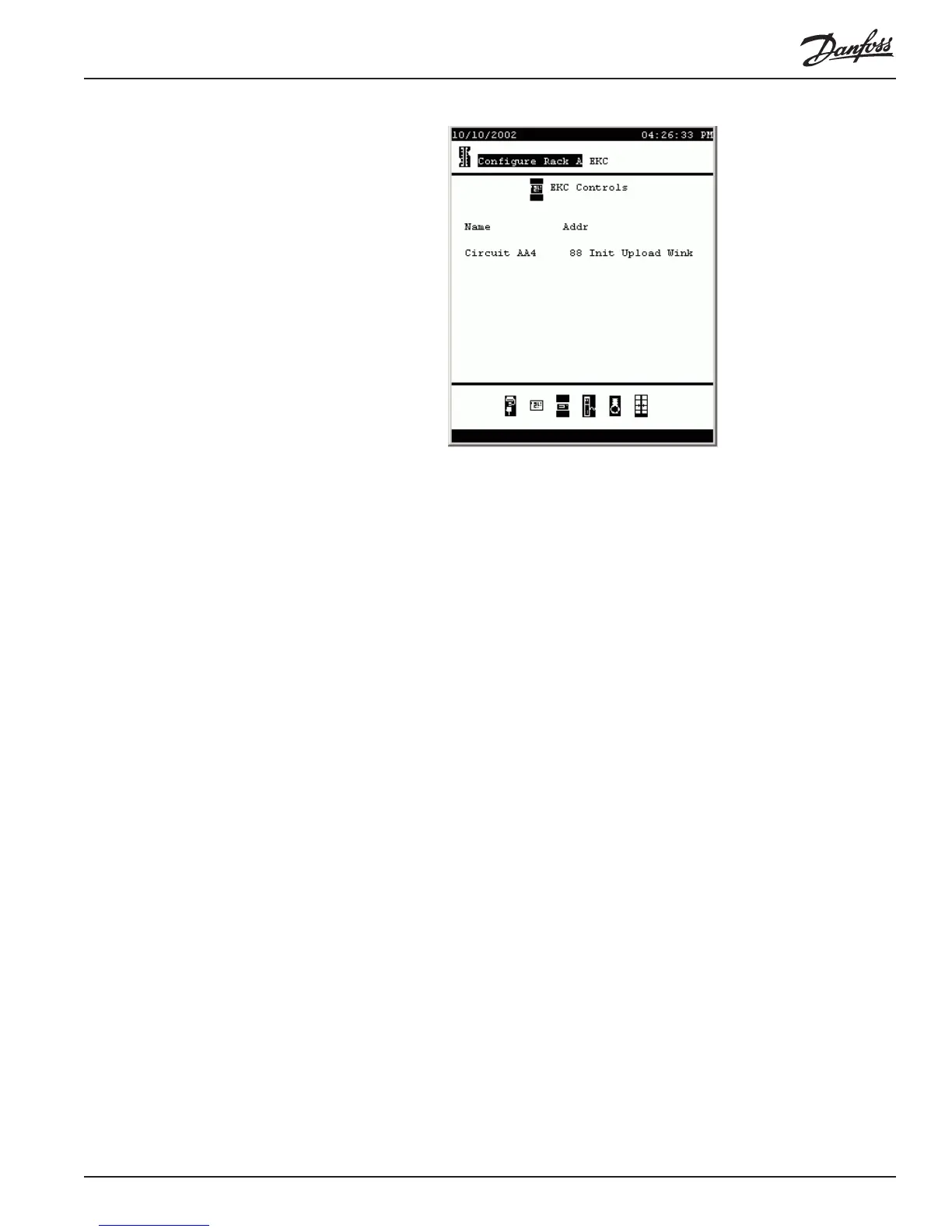

The fields and contents are:
Name (Label field, any 15 characters) The name of the
evaporator being controlled by the EKC. The default
names for the EKC circuits automatically added during
configuration of refrigeration are shown, and will
suffice in many applications. They can be edited
character by character (put the cursor on the field,
press +/- to change to edit mode; then use the left and
right arrow keys to move from space to space and the
up and down arrow keys to select the character for
that space. When the name appears as you want it,
press ENTER).
Address (0 to 99) The address set on the EKC. EKC ad-
dresses are set using the buttons on the EKC. The
installer should provide a list with the address for each
fixture. If such information is not available, obtain the
address at the fixture from the EKC by using the
buttons.
Init (Init button field) Use in accordance with the following
explanation of network re-scan and initialization.
Network Re-scan
and Initialization After the EKCs have been configured and addressed, you need to re-scan the
network so that they are recognized, then initialize them. You must perform the
following steps:
1. From the Main Menu, select Communications.
2. From the Communications Menu, select I/O Network.
3. From the I/O Network Menu, select Re-scan. Re-scanning the network
can take several minutes. After the re-secan, return (via the Main Menu)
to the EKC Board & Points Configuration Screen, and
4. Put the cursor on the Init field and press ENTER.
