RS.8D.M1.22 AK2-SC 255 Reference Manual 79
No of return sensors (0 to 5) The number of return air temperature sensors.
Controlling sensor (List box:)
Min Temp: Control will be based on the lowest value
of all of the return air temperature sensors.
Max Temp: Control will be based on the highest
value of all of the return air temperature sensors.
Average: Control will be based on the average of all
the return air sensors.
Return Air 1-1 (etc.): (each return air temperature
sensor will be available as a choice in the list) Control
will be based on the single selected sensor.
No of supply sensors (0 to 5) The number of supply air temperature sen-
sors.
Controlling sensor (List box:)
Min Temp: Control will be based on the lowest value
of all of the supply air temperature sensors.
Max Temp: Control will be based on the highest
value of all of the supply air temperature sensors.
Average: Control will be based on the average of all
the supply air sensors.
Supply Air 1-1 (etc.): (each supply air temperature
sensor will be available as a choice in the list) Control
will be based on the single selected sensor.
AHU outside air coil

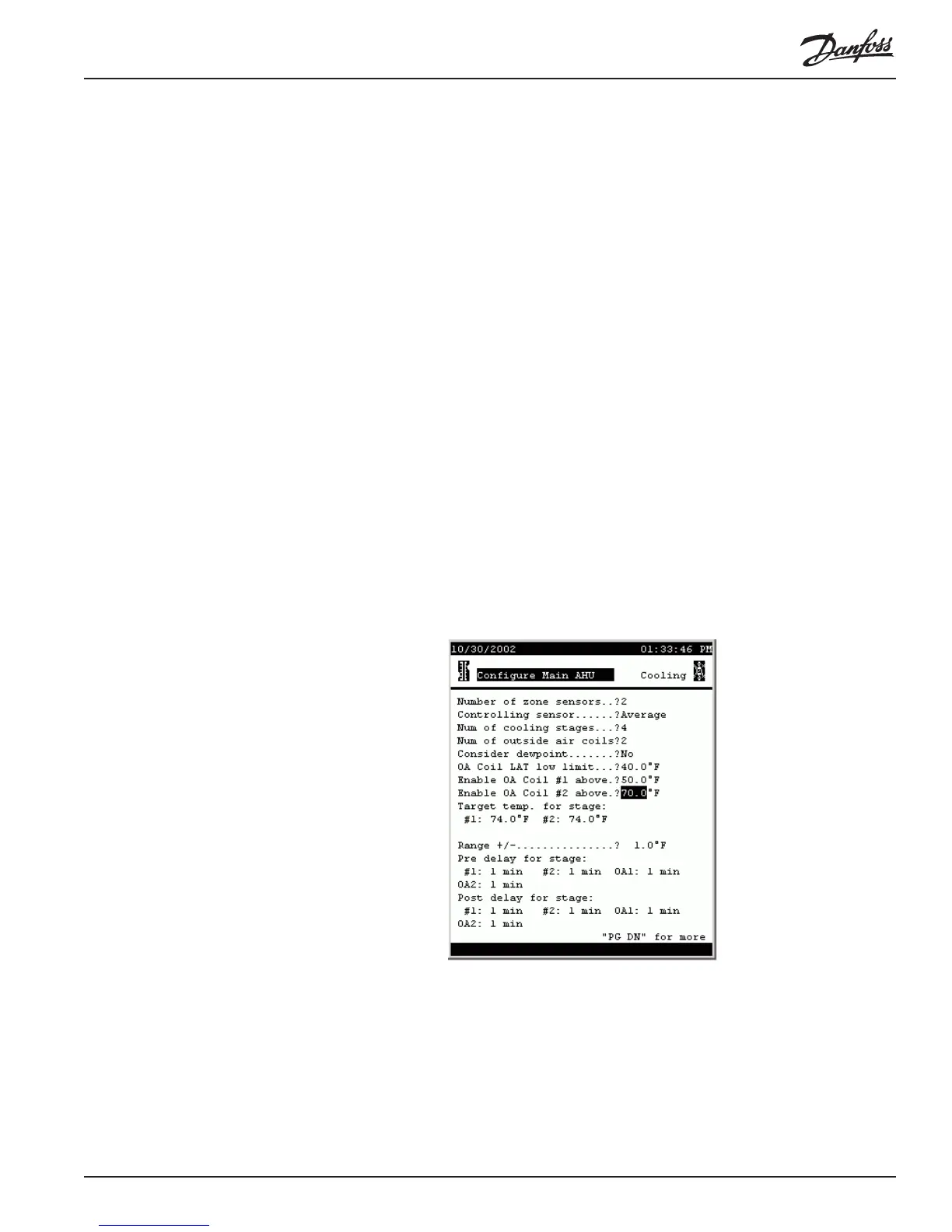

configuration When outside air coils are configured, the first cooling screen looks like this:
Number of zone sensors (0 to 5) The number of zone sensors in the area of the
store served by this HVAC unit.
Controlling sensor (List box)
Min Temp: Control will be based on the lowest value
of all temperature sensors in the unit’s zone.
Max Temp: Control will be based on the highest
value of all of the temperature sensors in the unit’s
zone.
