Danfoss TTS700 User Manual

17. Slideoutallthree(3)InverterCopperTubes.

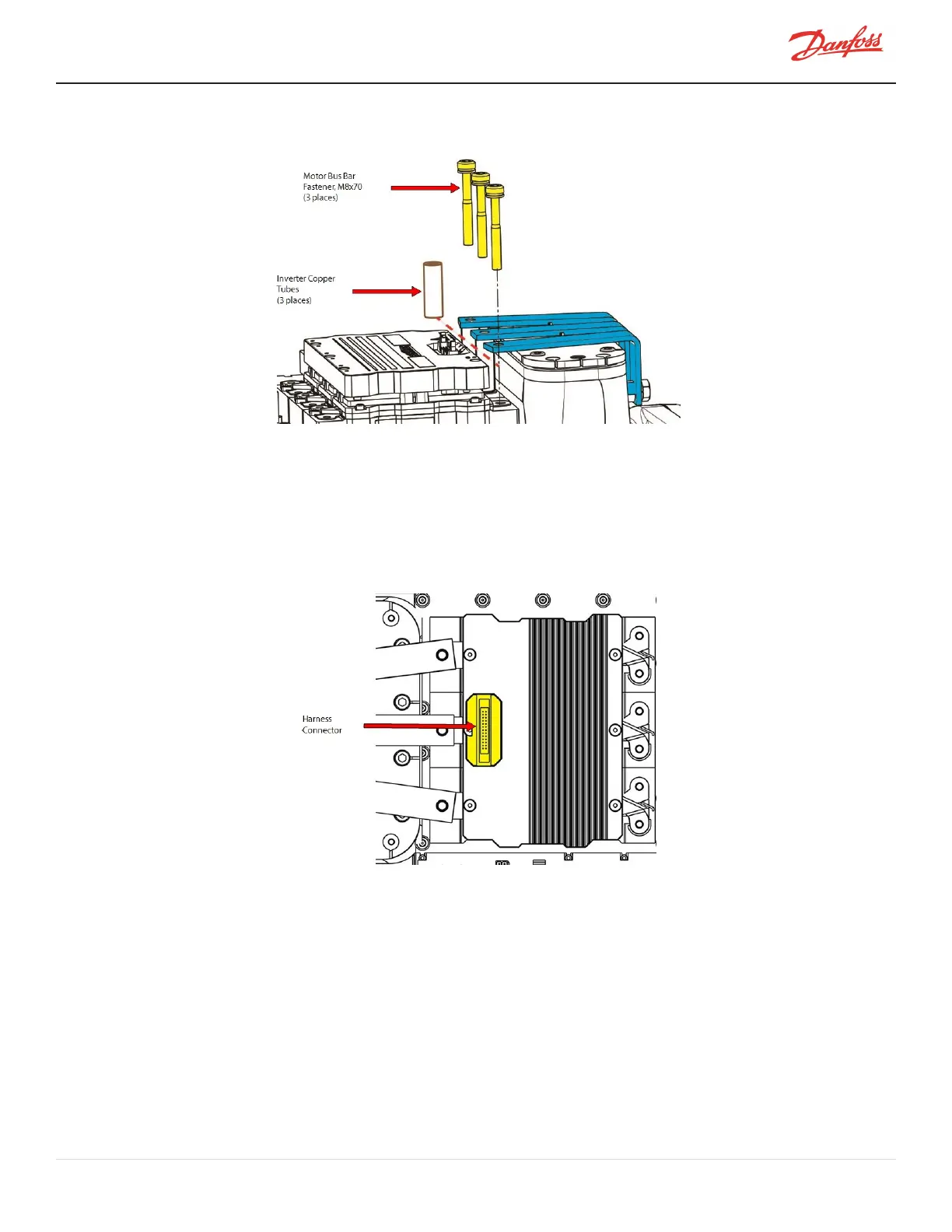

Figure 4-201 Inverter Copper Tube Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
18. Removetheupperhalfofthecompressorcableharness.RefertoSection4.5.2CompressorController
CableHarnessRemovalandInstallationonpage68.
19. RemovetheSCRCoolingManifold.RefertoSection4.19.3SCRCoolingManifoldSpecificRemovalSteps
-TTS/TGS/TTH/TGH(ExceptTTS300/TGS230)onpage159.
20. RemovetheInvertercableharnessfromthetopoftheInverter.RefertoFigure4-202InverterHarness
Removal-TTS/TGS/TTH/TGH(ExceptTTS300/TGS230).
Figure 4-202 Inverter Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)

21. RemovetheDC-DCfromtheInverterHeatSinkPlate.RefertoSection4.24.3DC-DCRemovaland
Installationonpage206.
22. DisconnectthewiresfromtheMotorWindingSensor.RefertoFigure4-203MotorWindingSensor
Removal.

M-SV-001-EN Rev. H-1/23/2023 Page 183 of 294
