130BF362.10

290 (11.4)

0.0

257 (10.1)

309 (12.1)

0.0

2

1

3

1 Brake terminals 3 Motor terminals

2 Mains terminals – –

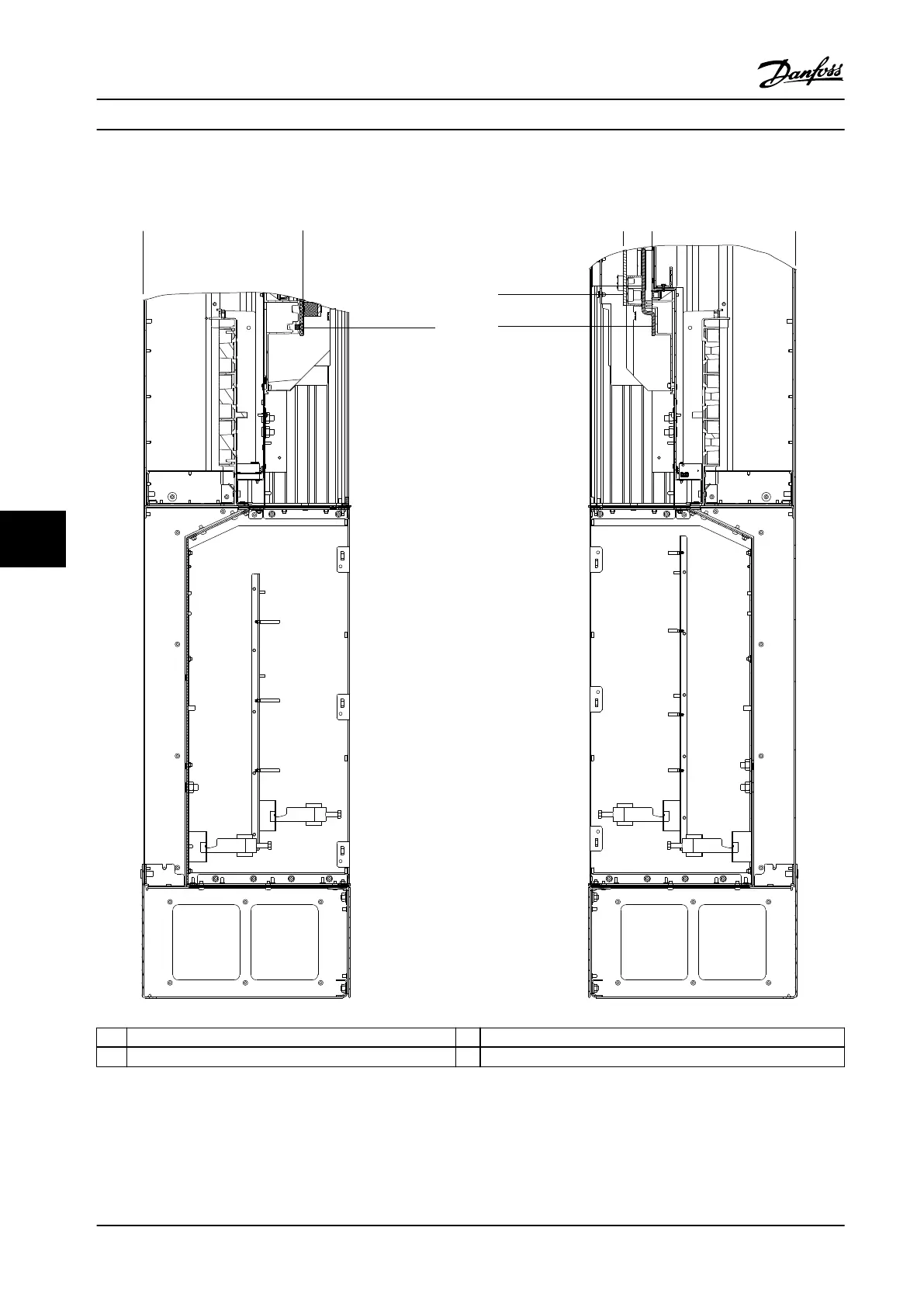

Figure 8.57 D7h Terminal Dimensions with Brake Option (Side Views)
