8.8.2 D8h Terminal Dimensions
69 (2.7)
0.0
123 (4.9) 177 (7.0) 238 (9.4)
292 (11.5) 346 (13.6)
49 (1.9)
378 (14.9)
198 (7.8)
378 (14.9)
0.0
418 (16.5)
898 (35.3)
401 (15.8)
521 (20.5)
95 (3.7)
151 (5.9)
130BF367.10
1
2
3
4
5
1 Mains terminals 4 TB6 terminal block for contactor
2 Brake terminals 5 Motor terminals
3 Ground terminals – –

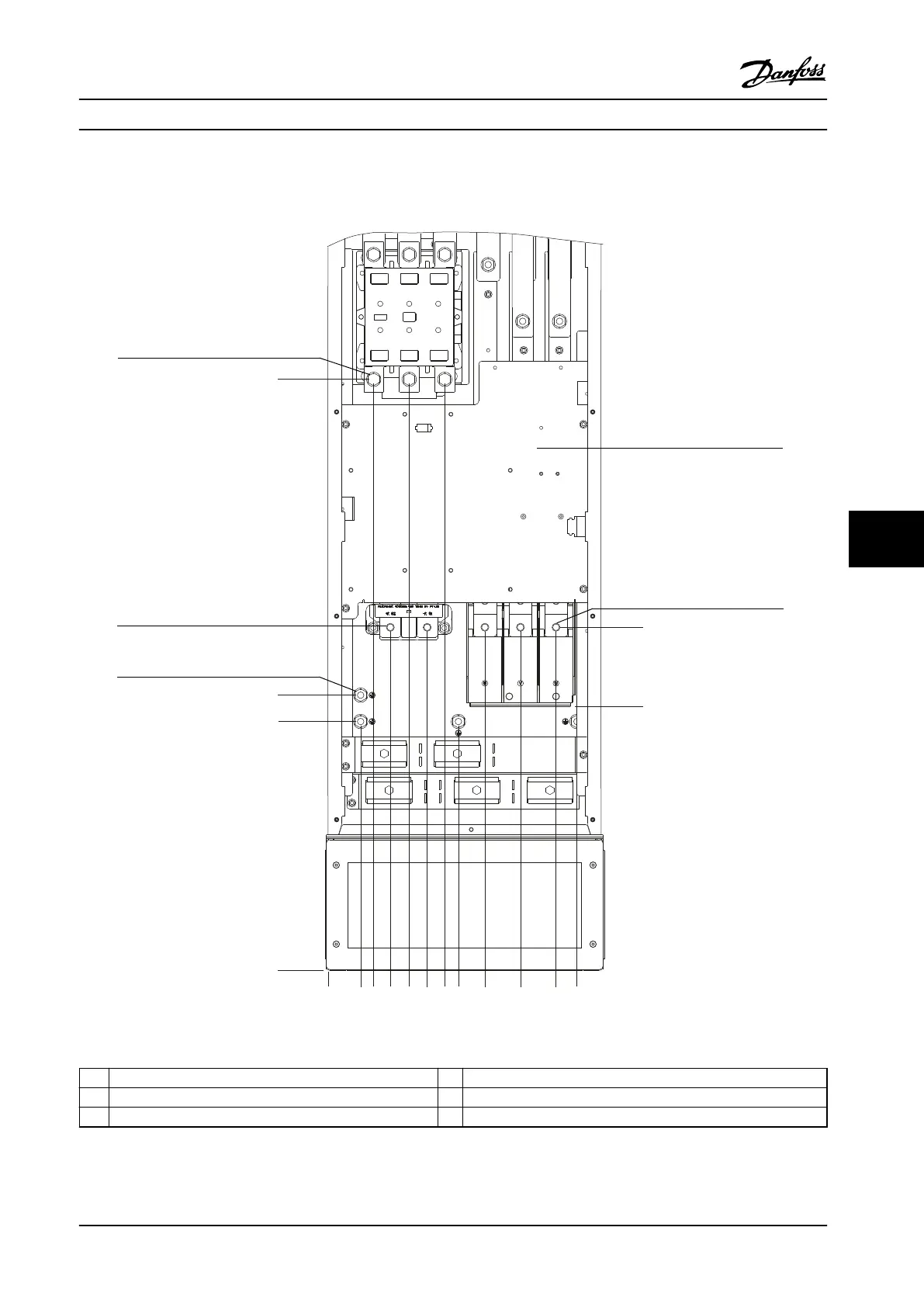

Figure 8.64 D8h Terminal Dimensions with Contactor Option (Front View)
Exterior and Terminal Dimen... Design Guide
MG22B222 Danfoss A/S © 01/2018 All rights reserved. 117
