Danfoss VLT AQUA Drive FC 202 Design Manual

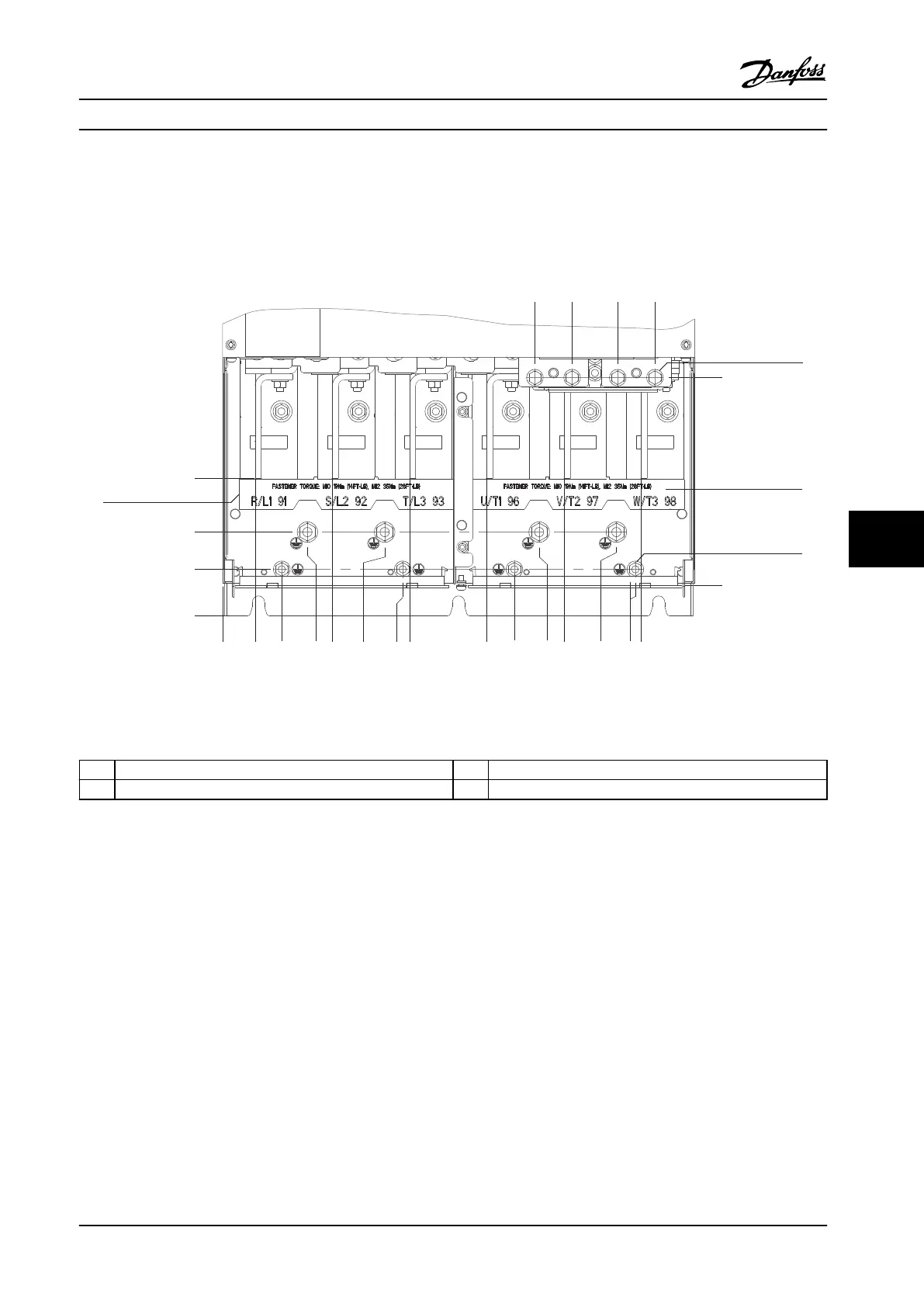

8.11.2 E3h Terminal Dimensions
130BF660.10
336 (13.2) 425 (16.7) 376 (14.8) 465 (18.3)
256 (10.1)
33 (1.3)
6X 148 (5.8)
90 (3.5)
50 (2.0)
0 (0.0)
0 (0.0)
64 (2.5) 35 (1.4) 91 (3.6)
118 (4.6) 194 (7.6) 174 (6.9) 201 (7.9)
284 (11.2) 340 (13.4) 314 (12.3) 367 (14.4) 444 (17.5) 423 (16.7) 450 (17.7)
2
3
4
1
1 Mains terminals 3 Motor terminals
2 Brake or regen terminals 4 Ground terminals, M8 and M10 nuts
Figure 8.86 E3h Terminal Dimensions (Front View)
Exterior and Terminal Dimen... Design Guide
MG22B222 Danfoss A/S © 01/2018 All rights reserved. 139
8 8
