Danfoss VLT AQUA Drive FC 202

130BF665.10
18 (0.7)
48 (1.9)
508
(20.1)
254
(10.0)
168 (6.6)
1335 (52.5)
168 (6.6)
136 (5.4)
39 (1.5)
22 (0.9)
263 (10.4)
4X 457 (18.0)
744 (29.3)
4X 74 (2.9)
560 (22.0)
526 (20.7)
154 (6.1)
1
1 Heat sink access panel (optional)

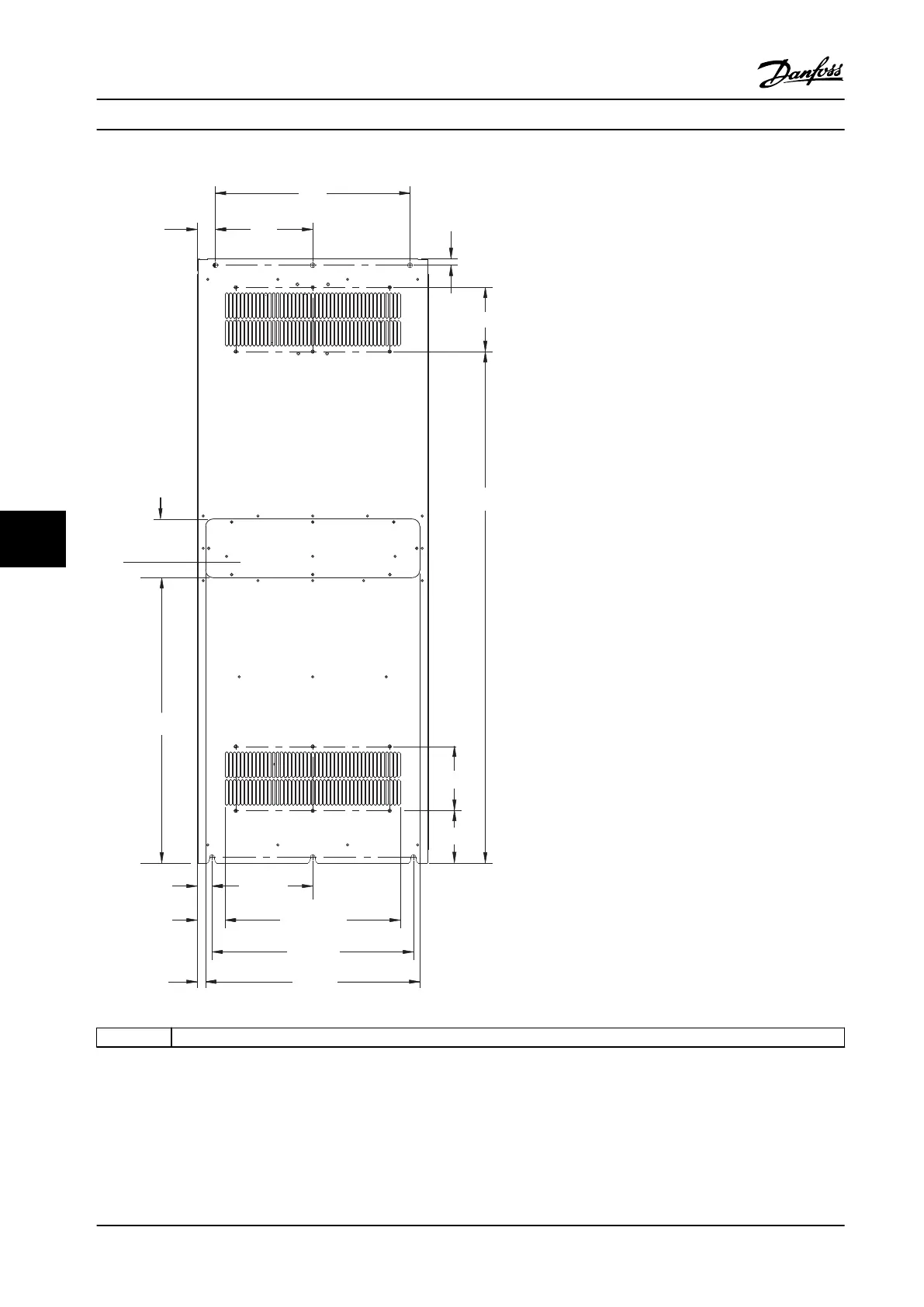

Figure 8.91 Back View of E4h
Exterior and Terminal Dimen...
VLT
®
AQUA Drive FC 202
