8.5.2 D5h Terminal Dimensions
130BF349.10
0.0
0.0
45 (1.8) 46 (1.8) 99 (3.9)
153 (6.0) 146 (5.8) 182 (7.2) 193 (7.6) 249 (9.8) 221 (8.7)
260 (10.2)
118 (4.6)
148 (5.8)
90 (3.6)
196 (7.7)
227 (9.0)
221 (8.7)
3
4
2
1
1 Mains terminals 3 Brake terminals
2 Ground terminals 4 Motor terminals

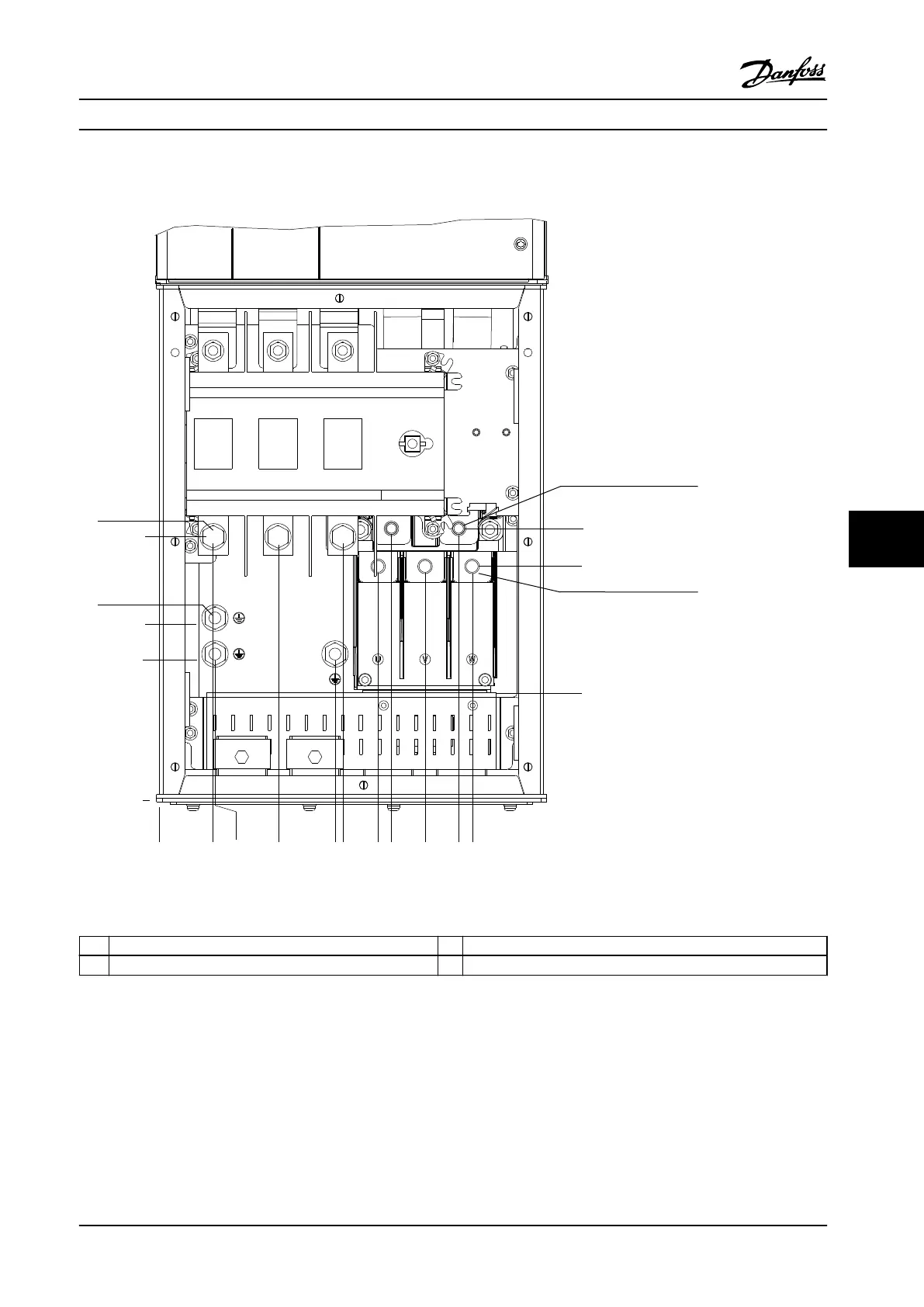

Figure 8.31 D5h Terminal Dimensions with Disconnect Option (Front View)
