Danfoss VLT AQUA Drive FC 202

130BF669.10
404 (15.9)
298 (11.7)
105

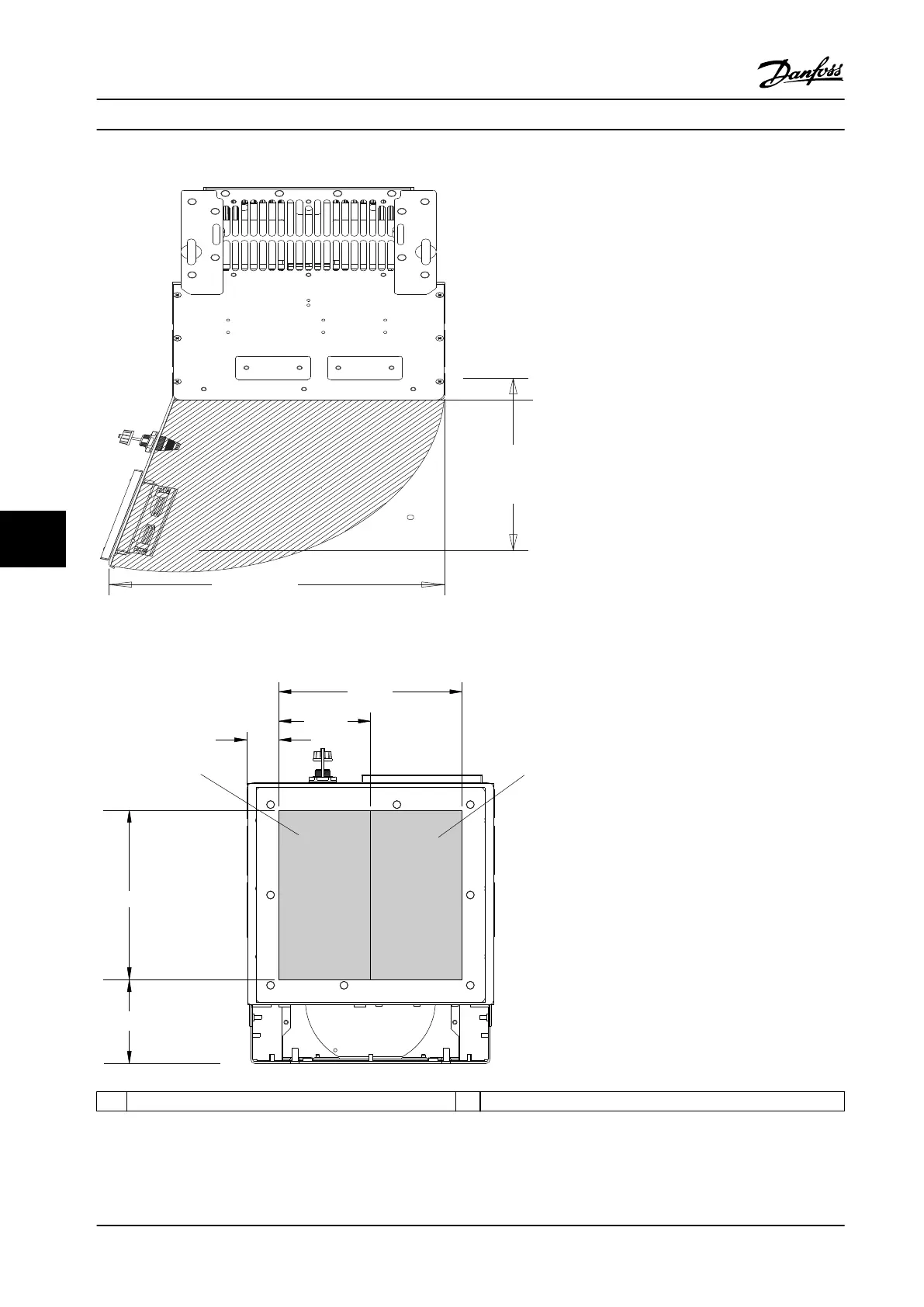

Figure 8.29 Door Clearance for D5h
111 (4.4)
224 (8.8)
242 (9.5)
121 (4.8)
43 (1.7)
1 2
130BF609.10
1 Mains side 2 Motor side
Figure 8.30 Gland Plate Dimensions for D5h
Exterior and Terminal Dimen...
VLT
®
AQUA Drive FC 202
