Danfoss VLT AutomationDrive FC 301 Design Guide

L1 91
L2 92
L3 93
L1 91
L2 92
L3 93
U 96
V 97
W 98
DC-88
DC+89
R-81
R+82
130BA714.10
95
99

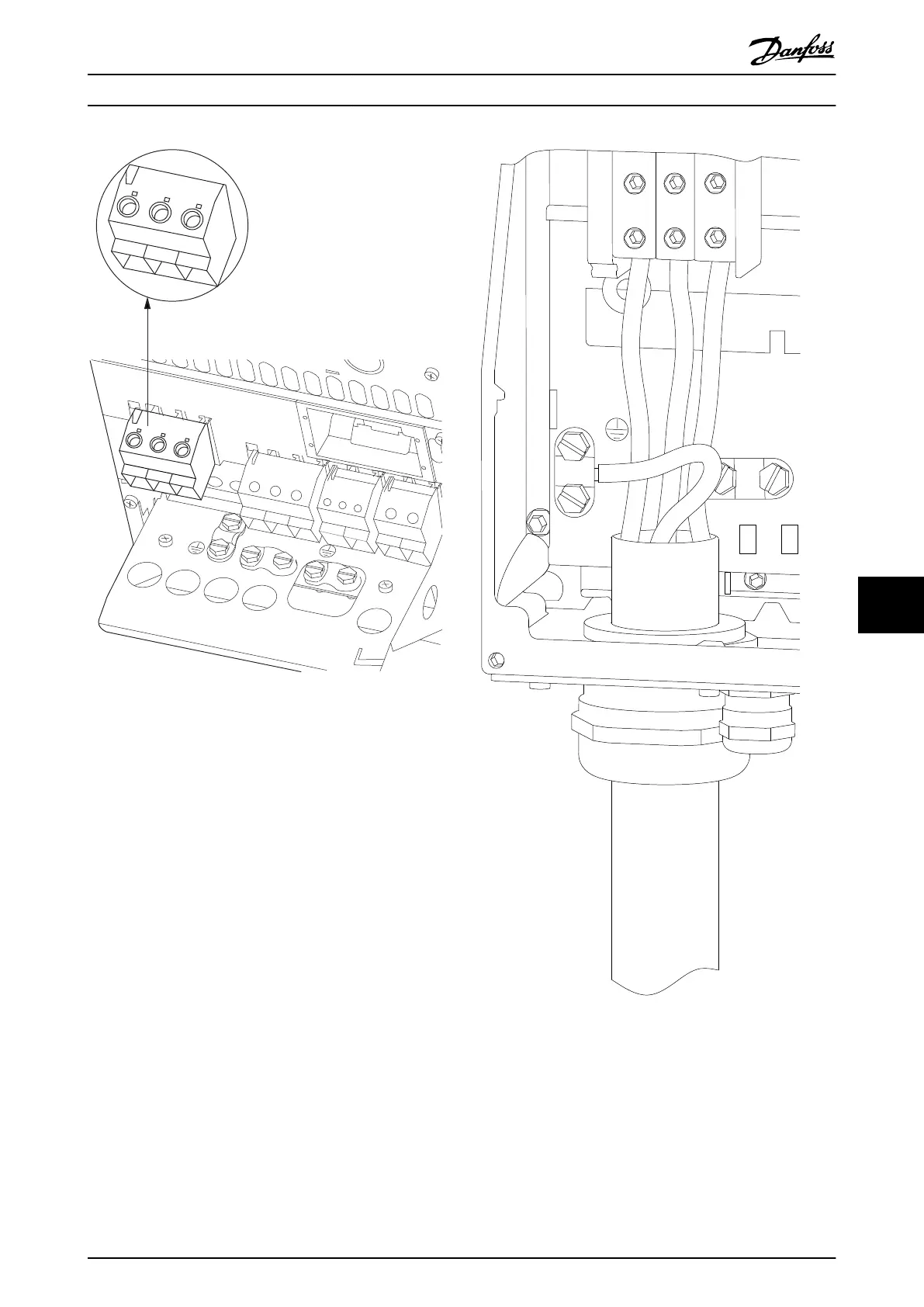

Illustration 9.25 Mains Connection Enclosure B4
130BA389.10
95
91
L1
92
L2
93
L3
Illustration 9.26 Mains Connection Enclosures C1 and C2 (IP21/
NEMA Type 1 and IP55/66/NEMA Type 12).
Electrical Installation
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 121
9 9
