Danfoss VLT AutomationDrive FC 301 Design Guide

When option module A and/or option module B is/are
used, the brim (B) must be fitted to the top cover (A).
NOTICE
Side-by-side installation is not possible when using the
IP21/IP4X/TYPE 1 Enclosure Kit

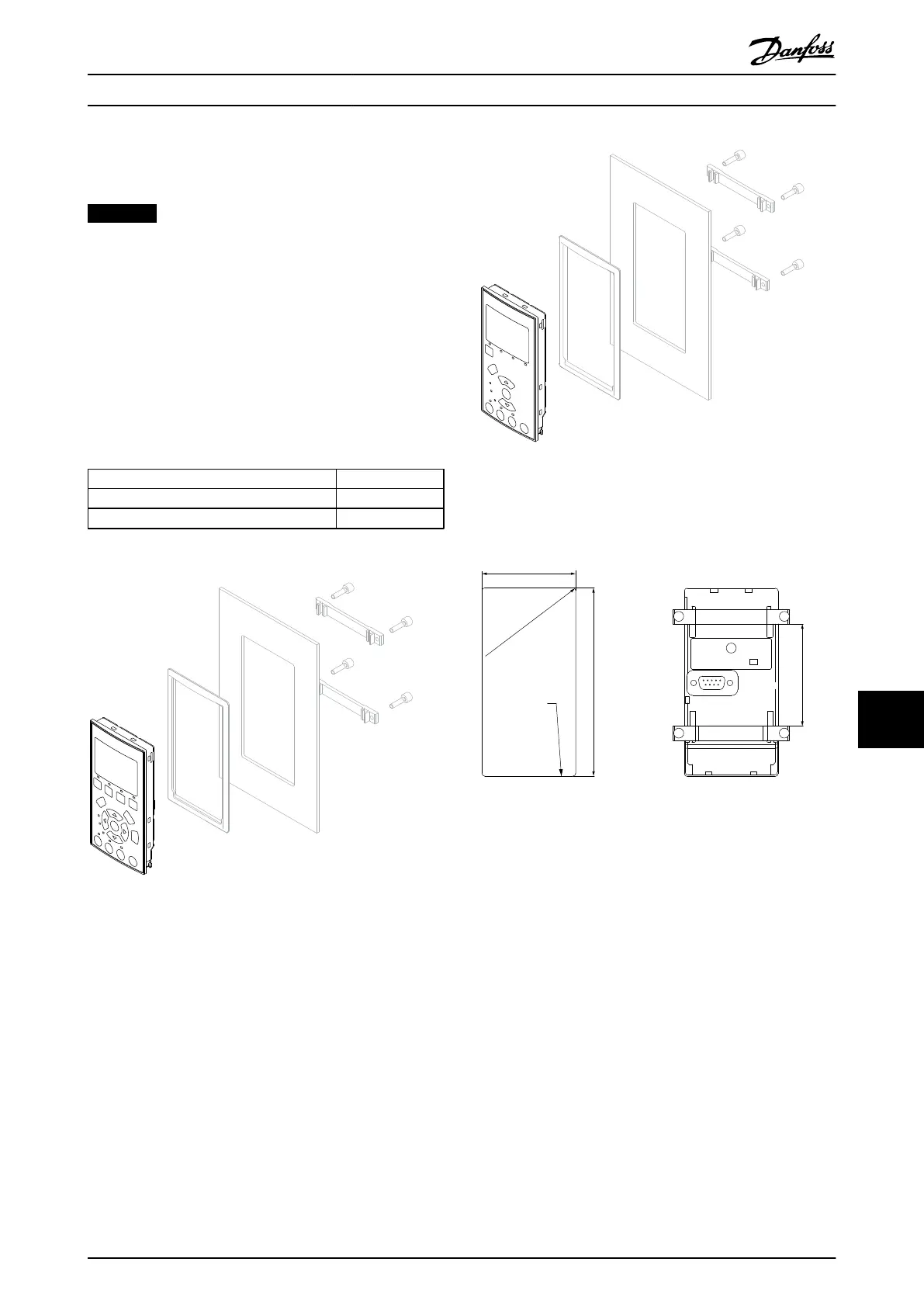

11.4.7 Remote Mounting Kit for LCP
The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is the IP66. The
fastening screws must be tightened with a torque of max.
1 Nm.
The LCP enclosure is rated IP66
Enclosure IP66 front
Max. cable length between and unit 3 m
Communication std RS-485
Table 11.15 Technical Data
130BA138.10
Illustration 11.27 LCP Kit with Graphical LCP, Fasteners, 3 m
Cable and Gasket
Ordering No. 130B1113
130BA200.10
Illustration 11.28 LCP Kit with Numerical LCP, Fasteners and
Gasket
Ordering no. 130B1114
Max R2(0.08)
Panel
cut out
Min 72(2.8)
130BA139.11
129,5± 0.5 mm
64,5± 0.5 mm
(2.54± 0.04 in)
(5.1± 0.04 in)
Illustration 11.29 Dimensions
Options and Accessories
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 173
11 11
