Danfoss VLT AutomationDrive FC 301

Enclosure type
Height A
[mm]
Width B
[mm]
Depth C*
[mm]
A2 372 90 205
A3 372 130 205
B3 475 165 249
B4 670 255 246
C3 755 329 337
C4 950 391 337
Table 11.13 Dimensions
* If option A/B is used, the depth increases (see
chapter 8.2.1 Mechanical Dimensions for details)
E
F
D
C
B
A
130BT620.12

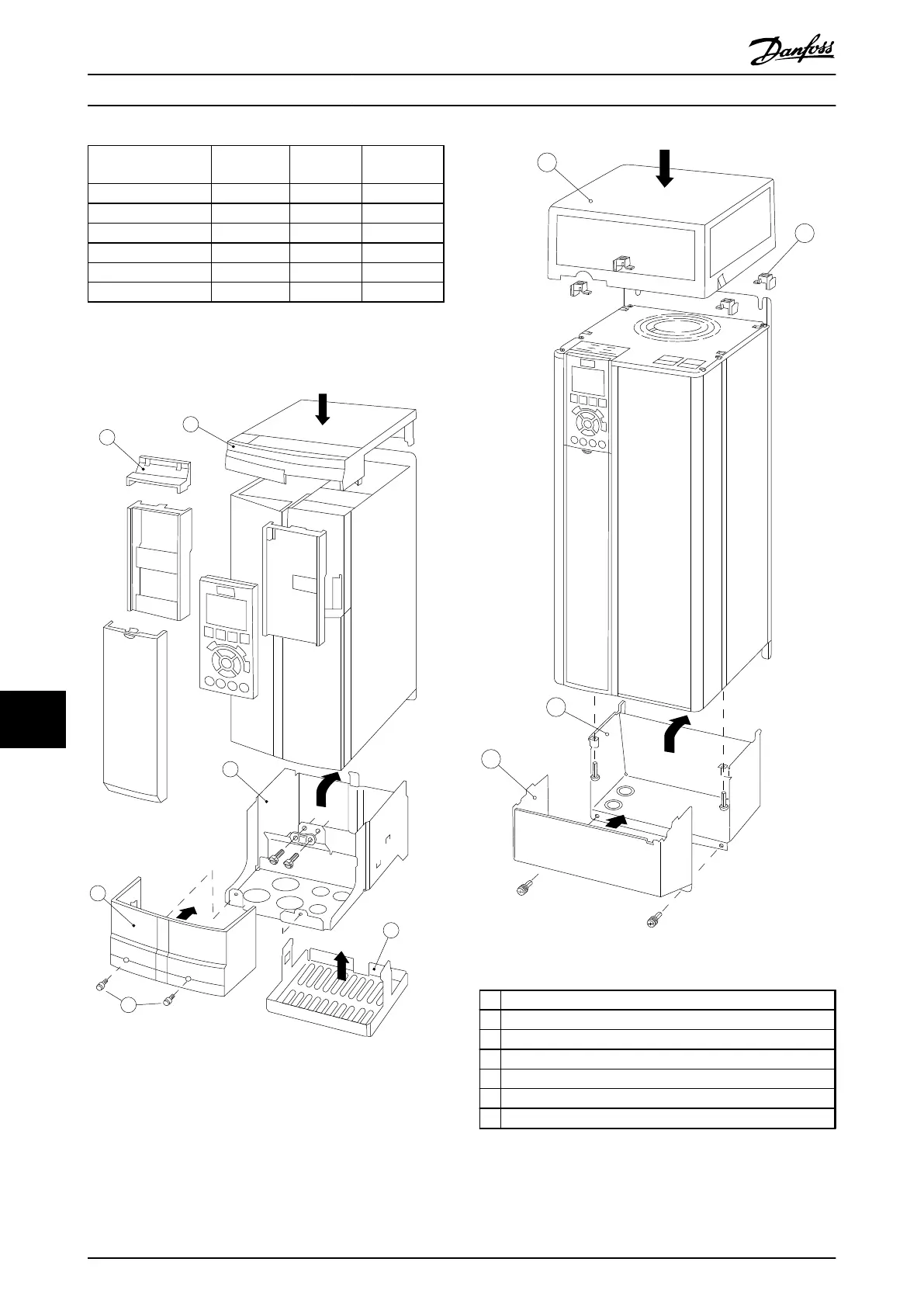

Illustration 11.25 Enclosure Type B3
130BT621.12
D
C
A
G
Illustration 11.26 Enclosure Types B4 - C3 - C4
A
Top cover
B Brim
C Base part
D Base cover
E Screw(s)
F Fan cover
G Top clip
Table 11.14 Legend to Illustration 11.25 and Illustration 11.25
