Danfoss VLT AutomationDrive FC 301

11 Options and Accessories
11.1 Communication Options
•
VLT
®
PROFIBUS DP V1 MCA 101
•
VLT
®
DeviceNet MCA 104
•
VLT
®
CAN Open MCA 105
•
VLT
®
EtherCAT MCA 124
•
VLT
®
PROFIBUS Converter MCA 114
•
VLT
®
PROFINET MCA 120
•
VLT
®
EtherNet/IP MCA 121
•
VLT
®
Modbus TCP MCA 122
•
VLT
®
POWERLINK MCA 122
•
VLT
®
DeviceNet Converter MCA 194
11.2 I/O, Feed-back and Safety Options
11.2.1
VLT
®
General Purpose I/O Module
MCB 101
MCB 101 is used for extension of digital and analog inputs
and outputs of FC 301 and FC 302.
Fit MCB 101 into slot B in the VLT
®
AutomationDrive.
Contents:
•
MCB 101 option module
•
Extended fixture for LCP
•
Terminal cover
General Purpose I/O
SW. ver. XX.XX
MCB 101
FC Series
Code No. 130BXXXX
B slot
X30/
AIN4
7 8654321 9 10 11 12
AIN3 GND(2) 24V AOUT2 DOUT4 DOUT3 GND(1) DIN7
COM
DIN DIN8 DIN9
130BA208.10

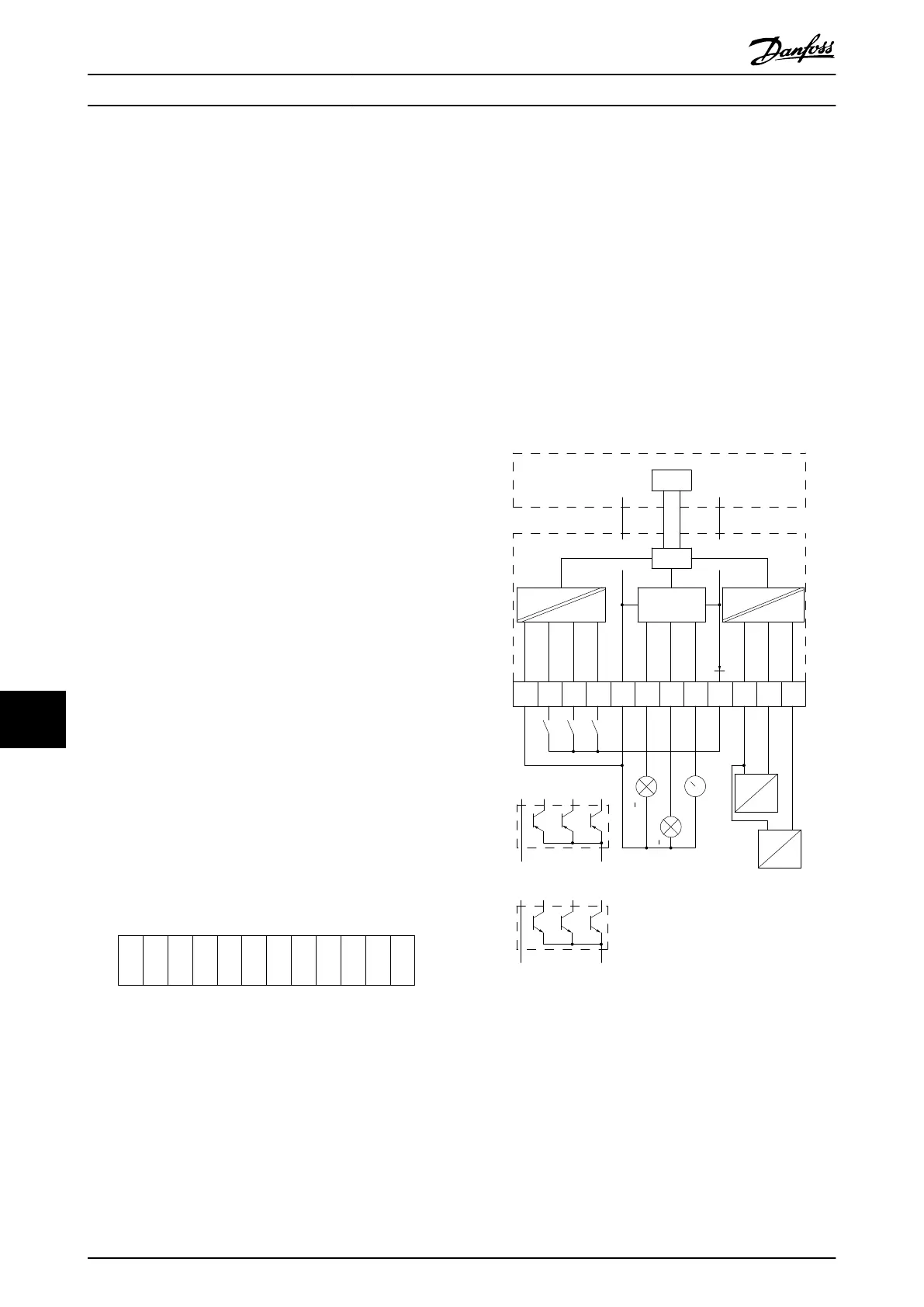

Illustration 11.1 MCB 101 Option
11.2.1.1 Galvanic Isolation in MCB 101
Digital/analog inputs are galvanically isolated from other
inputs/outputs on the MCB 101 and in the control card of
the frequency converter. Digital/analog outputs in the MCB
101 are galvanically isolated from other inputs/outputs on
the MCB 101, but not from these on the control card of
the frequency converter.
If the digital inputs 7, 8 or 9 are to be switched by use of
the internal 24 V power supply (terminal 9), establish
connection between terminals 1 and 5, see Illustration 11.2.
130BA209.10
1
2 3
4 5
6
7
8
9 10
11
12
COM DIN DIN7 DIN8 DIN9 GND(1) DOUT3 0/24VDC DOUT4 0/24VDC AOUT2 0/4-20mA 24V GND(2) AIN3 AIN4
RIN=
5kohm
RIN=
10kohm
0-10
VDC
0-10
VDC
0V 24V
0V 24V
24V DC0V
0V24V DC
<500 ohm >600 ohm
>600 ohm
X30/
DIG IN
DIG &
ANALOG
OUT
ANALOG
IN
CPU
CAN BUS
CPU
Control card (FC 100/200/300)
General Purpose
I/O option MCB 101
PLC
(PNP)
PLC
(NPN)
Illustration 11.2 Principle Diagram
