All types of 3-phase asynchronous standard motors can be
connected to the frequency converter. Normally, small
motors are star-connected (230/400 V, Y). Large motors are
normally delta-connected (400/690 V, Δ). Refer to the
motor name plate for correct connection mode and
voltage.
MOTOR
MOTOR
U V W
99
130BT302.12

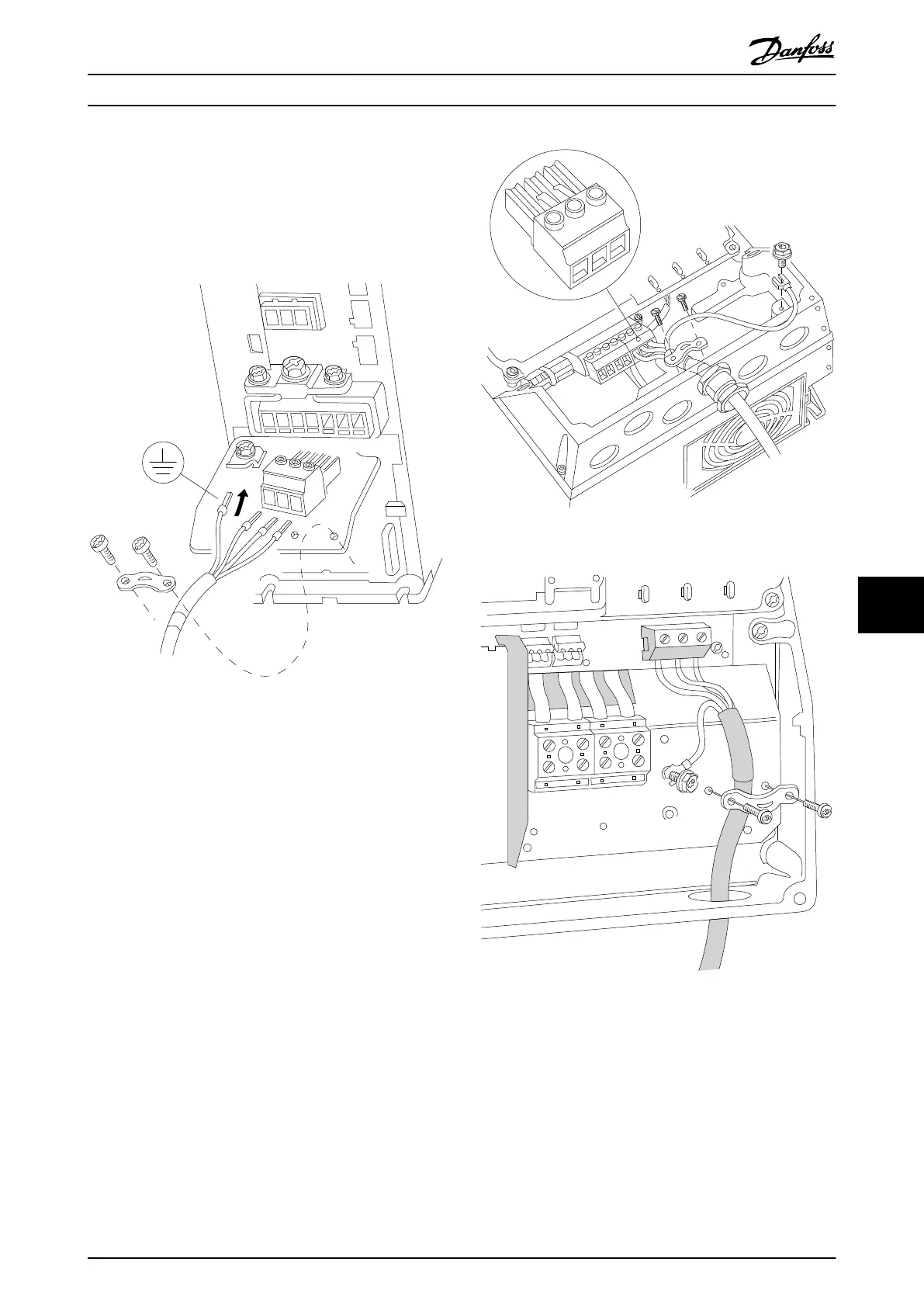

Illustration 9.30 Motor Connection for Enclosures A1, A2 and
A3
U
V
W
96
97
98
130BT337.10
Illustration 9.31 Motor Connection for Enclosures A4/A5
130BT333.10
Illustration 9.32 Motor Connection for Enclosures B1 and B2
Electrical Installation
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 133
9 9
