130BA029.12
Relay2
Relay1
35 36

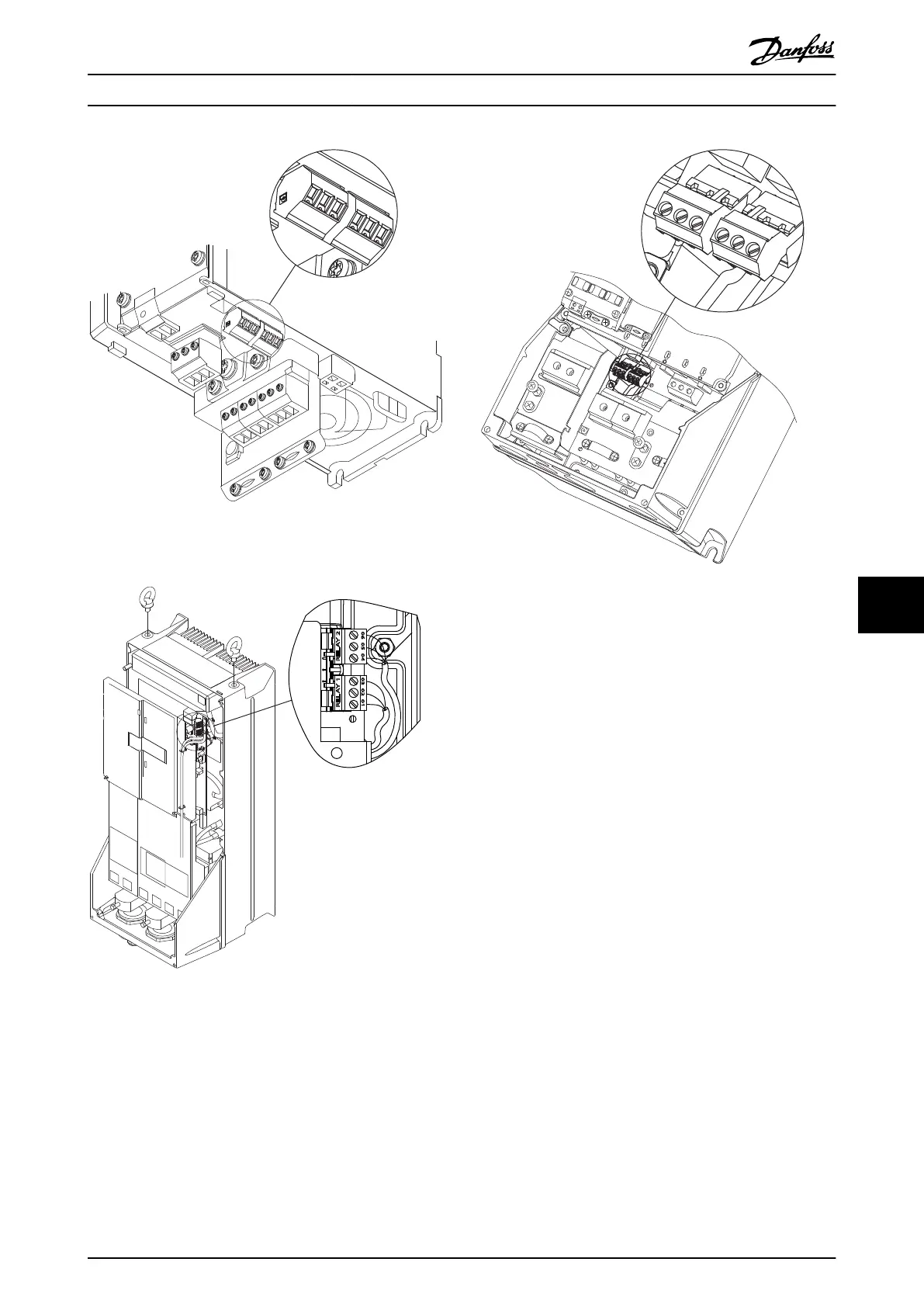

Illustration 9.42 Terminals for Relay Connection
(Enclosure Types A1, A2 and A3).
130BA391.12
RELAY 1 RELAY 2
06 05 04 03 02 01
DC+
Illustration 9.43 Terminals for Relay Connection
(Enclosure Types C1 and C2).
311
130BA215.10
RELAY 1
RELAY 2
9
9
6
03 02 01
90 05 04
Illustration 9.44 Terminals for Relay Connection
(Enclosure Types A5, B1 and B2).
Electrical Installation
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 137
