Danfoss VLT AutomationDrive FC 301 Design Guide

130BD529.11
1
2
3
4
5
6
7
8
PE
U
V
W
9
L1
L2
L3
PE
10
11
1 PLC 7 Motor, 3-phase and PE (screened)
2 Frequency converter 8 Mains, 3-phase and reinforced PE (not screened)
3 Output contactor 9 Control wiring (screened)
4 Cable clamp 10
Potential equalisation min. 16 mm
2
(0.025 in)
5 Cable insulation (stripped)
11
Clearance between control cable, motor cable and mains cable:
Min. 200 mm
6 Cable gland

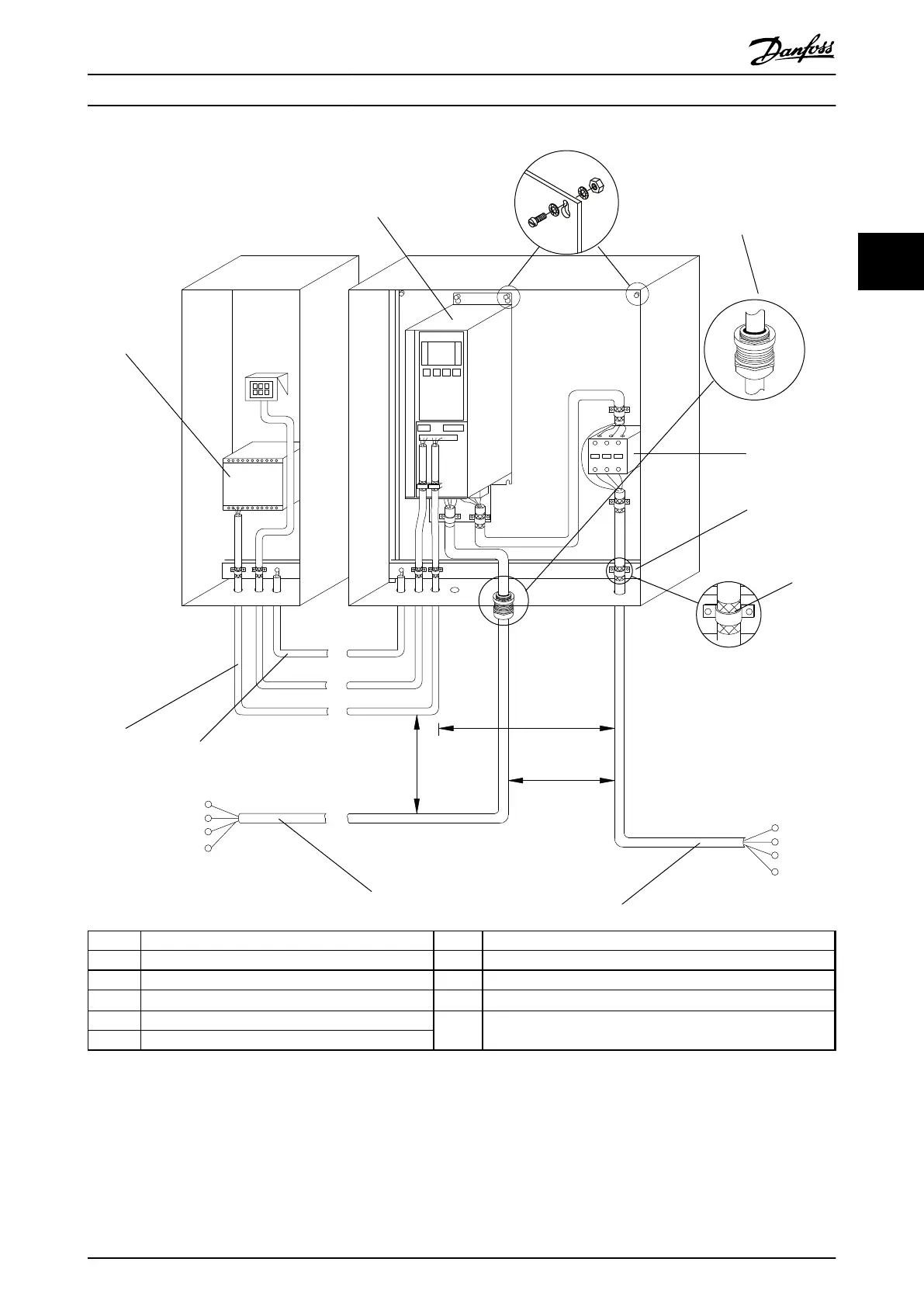

Illustration 3.3 EMC-compliant Electrical Connection
For more information about EMC, see chapter 4.1.15 EMC Compliance
