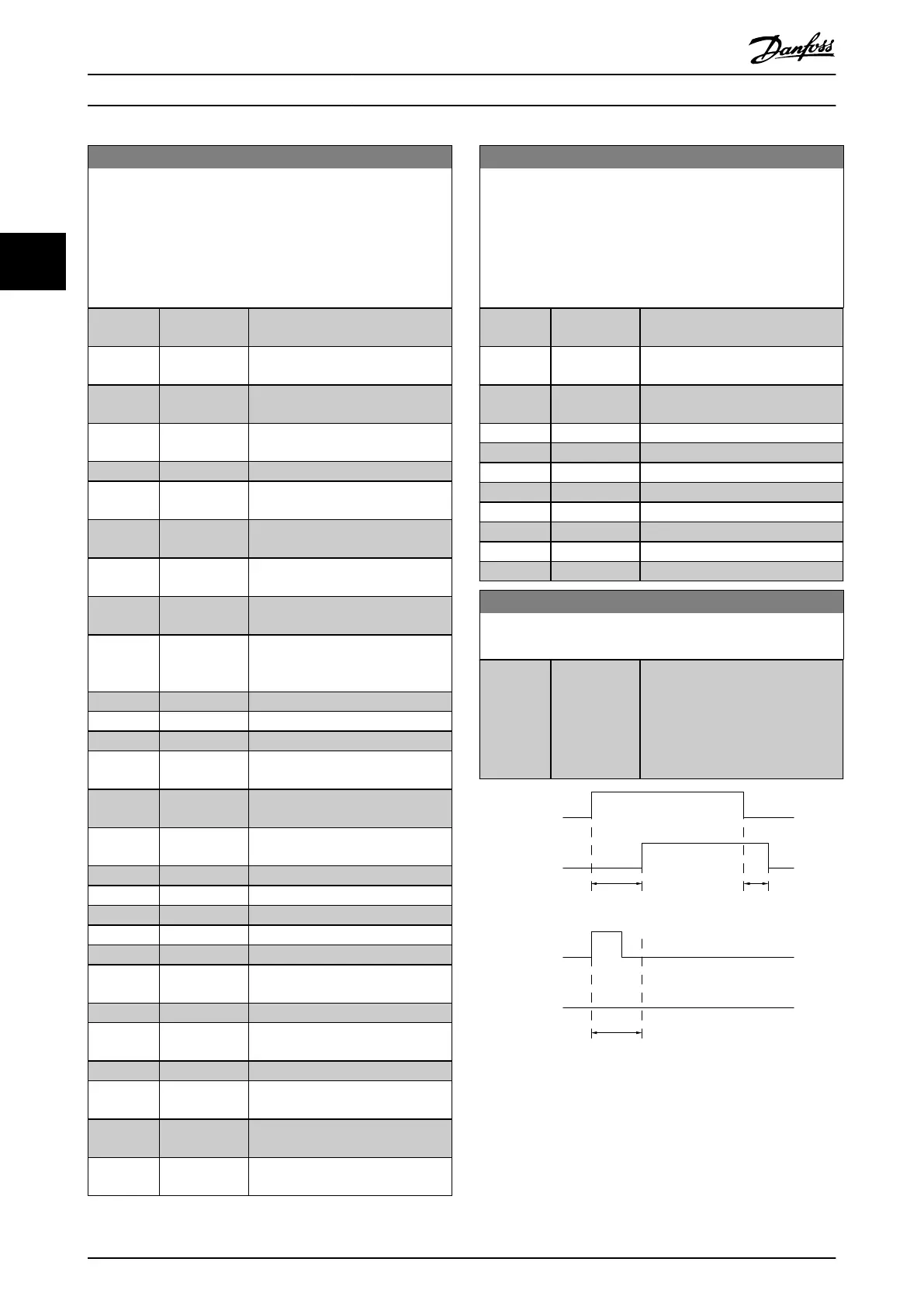

5-40 Function Relay
Array [8]
(Relay 1 [0], Relay 2 [1]
Option MCB 105: Relay 7 [6], Relay 8 [7] and Relay 9 [8]).
Select options to dene the function of the relays.
The selection of each mechanical relay is realized in an array
parameter.
Option: Function:
[151] ATEX ETR cur.
alarm
[152] ATEX ETR freq.
alarm
[153] ATEX ETR cur.
warning
[154] ATEX ETR freq.
warning
[160] No alarm
[161] Running
reverse
[163] Pressure
Sensor
[165] Local ref
active
[166] Remote ref
active
[167] Start
command
activ
[168] Hand / O
[169] Auto mode
[180] Clock Fault
[181] Prev.
Maintenance
[188] AHF Capacitor
Connect
[189] External Fan
Control
[190] No-Flow
[191] Dry Pump
[192] End Of Curve
[193] Sleep Mode
[194] Broken Belt
[195] Bypass Valve
Control
[196] Fire Mode
[197] Fire Mode was
Act.
[198] Drive Bypass
[211] Cascade Pump
1
[212] Cascade Pump
2
[213] Cascade Pump
3
5-40 Function Relay
Array [8]
(Relay 1 [0], Relay 2 [1]
Option MCB 105: Relay 7 [6], Relay 8 [7] and Relay 9 [8]).
Select options to dene the function of the relays.
The selection of each mechanical relay is realized in an array
parameter.
Option: Function:
[236] Ext. CL 1 on
Ref
[237] Ext. CL 2 on
Ref
[238] Ext. CL 3 on
Ref
[240] RS Flipop 0
[241] RS Flipop 1
[242] RS Flipop 2
[243] RS Flipop 3
[244] RS Flipop 4
[245] RS Flipop 5
[246] RS Flipop 6
[247] RS Flipop 7
5-41 On Delay, Relay
Array [20]
Range: Function:
0.01 s* [0.01 - 600 s] Enter the delay of the relay cut-in
time. Select 1 of 2 internal
mechanical relays in an array
function. See
parameter 5-40 Function Relay for
details.
Selected
Event
Relay
output
Selected
Event
Relay
output
On Delay
P 5-41
On Delay
P 5-41
O Delay
P 5-42
130BA171.10
Illustration 3.26 On Delay, Relay
