2.1.11 Changing a Group of Numeric Data
Values
If the selected parameter represents a numeric data value,
change the data value pressing the [
â—€
] [
â–¶
] navigation keys,
as well as the [
â–²
] [
â–¼
] navigation keys. Press [
â—€
] [
â–¶
] keys to
move the cursor horizontally.
130BP069.10
1- 6*
113 RPM 1.78 A 1(1)
Load depen. setting
1 - 60 Low speed load
compensation
100%

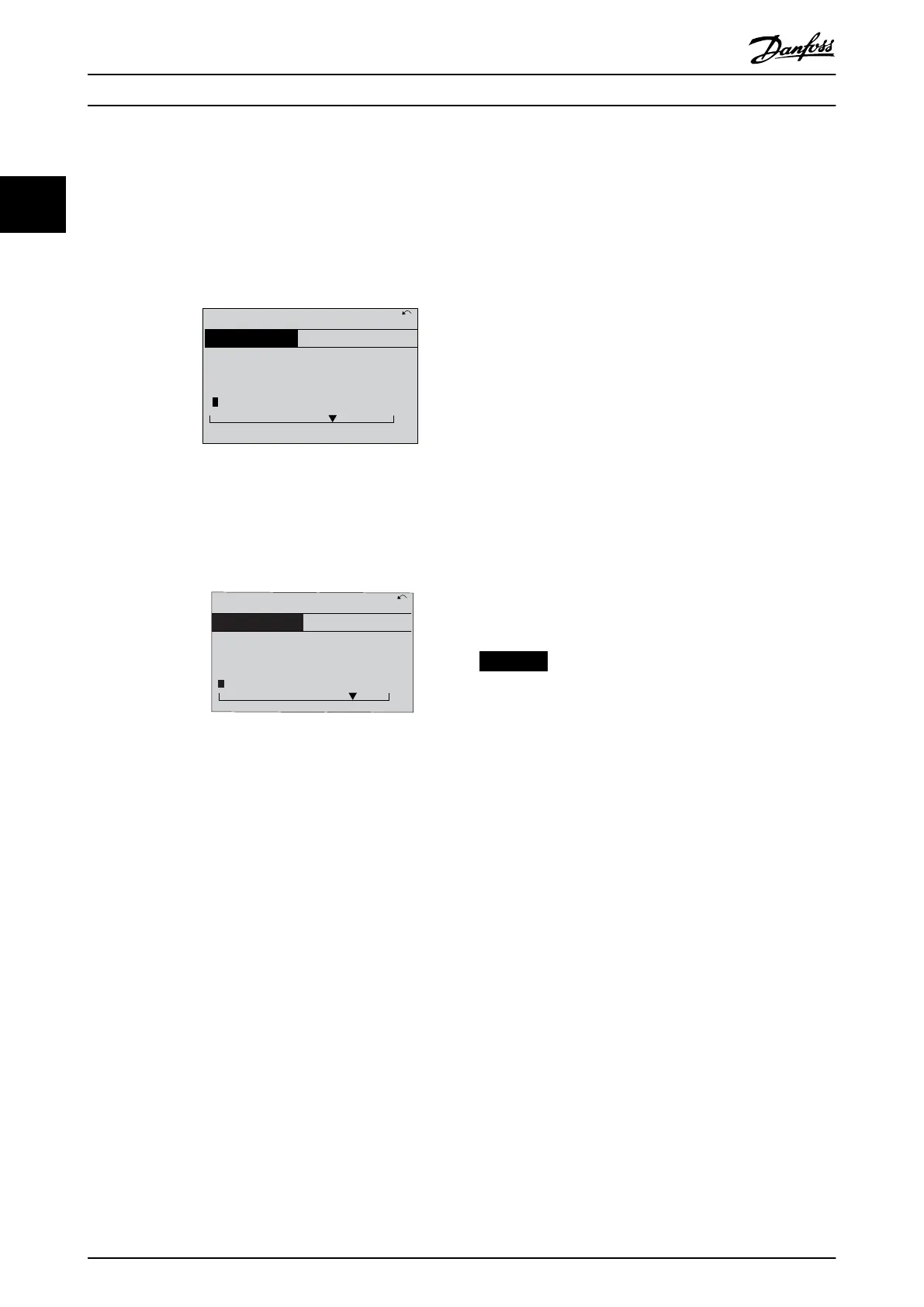

Illustration 2.30 Changing a Group of Numeric Data Values
Press the [
â–²
] [
â–¼
] keys to change the data value. [
â–²
]
increases the data value, and [
â–¼
] decreases the data value.
Place the cursor on the value to save and press [OK].
130BP070.10
1 - 60 Low speed load
compensation
1 0%
Load depen. setting 1- 6*
729RPM 6.21A 1(1)
6
Illustration 2.31 Changing a Group of Numeric Data Values
2.1.12 Value, Step by Step
Certain parameters can be changed step by step. This
applies to:
•
Parameter 1-20 Motor Power [kW].
•
Parameter 1-22 Motor Voltage.
•
Parameter 1-23 Motor Frequency.
The parameters are changed both as a group of numeric
data values and as numeric data values that are innitely
varying.
2.1.13 Read out and Programming of
Indexed Parameters
Parameters are indexed when placed in a rolling stack.
Parameter 15-30 Alarm Log: Error Code to
parameter 15-33 Alarm Log: Date and Time contain a fault
log which can be read out. Select a parameter, press [OK],
and use the [â–²]/[â–¼] navigation keys to scroll through the
value log.
Use parameter 3-10 Preset Reference as another example:
Select the parameter, press [OK], and use the [â–²]/[â–¼]
navigation keys to scroll through the indexed values. To
change the parameter value, select the indexed value and
press [OK]. To change the value, press the [â–²]/[â–¼] keys.
Press [OK] to accept the new setting. Press [Cancel] to
abort. Press [Back] to leave the parameter.
2.1.14 Initialization to Default Settings
Initialize the frequency converter to default settings in 2
ways.
Recommended initialization (via
parameter 14-22 Operation Mode)
1. Select parameter 14-22 Operation Mode.
2. Press [OK].
3. Select [2] Initialization.
4. Press [OK].
5. Cut oîš„ the mains supply and wait until the
display turns
oîš„.
6. Reconnect the mains supply - the frequency
converter is now reset.
7. Change parameter 14-22 Operation Mode back to
[0] Normal Operation.
NOTICE
Resets parameters selected in Personal Menu with
default factory setting.
Parameter 14-22 Operation Mode initializes all
except:
Parameter 14-50 RFI Filter.
Parameter 8-30 Protocol.
Parameter 8-31 Address.
Parameter 8-32 Baud Rate.
Parameter 8-35 Minimum Response Delay.
Parameter 8-36 Maximum Response Delay.
Parameter 8-37 Maximum Inter-Char Delay.
Parameter 15-00 Operating hours to
parameter 15-05 Over Volt's.
Parameter 15-20 Historic Log: Event to
parameter 15-22 Historic Log: Time.
Parameter 15-30 Alarm Log: Error Code to
parameter 15-32 Alarm Log: Time.
How to Programme
VLT
®
HVAC Drive FC 102
24 Danfoss A/S © 10/2019 All rights reserved. M0010001
