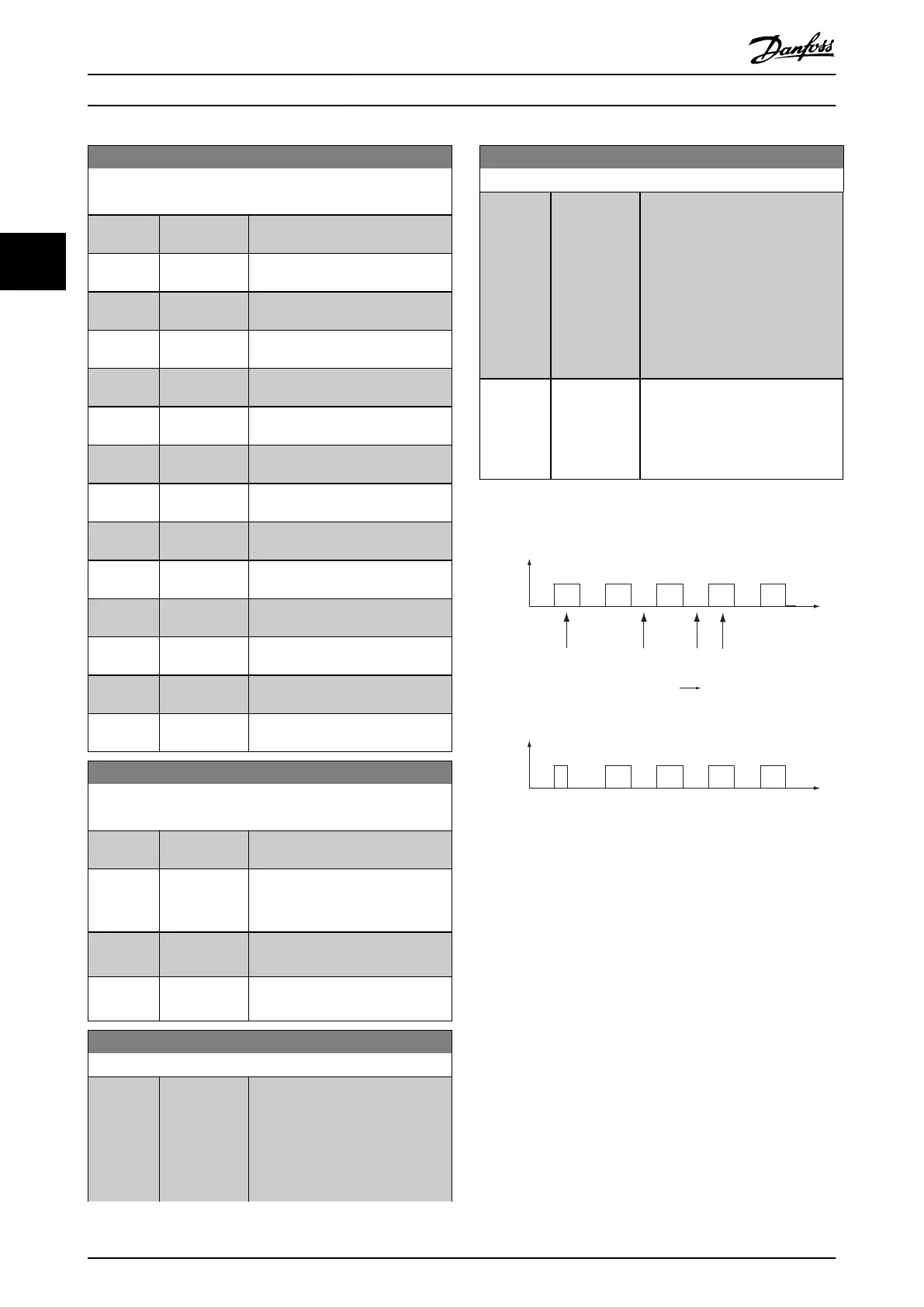

23-04 Occurrence
Array [10]
Option: Function:
[27] Day 18 of
month
[28] Day 19 of
month
[29] Day 20 of
month
[30] Day 21 of
month
[31] Day 22 of
month
[32] Day 23 of
month
[33] Day 24 of
month
[34] Day 25 of
month
[35] Day 26 of
month
[36] Day 27 of
month
[37] Day 28 of
month
[38] Day 29 of
month
[39] Day 30 of
month
[40] Day 31 of
month
23-08 Timed Actions Mode
Used to enable and disable automatic timed actions.
Option: Function:
[0] * Timed Actions
Auto
Enable timed actions.
[1] Timed Actions
Disabled
Disable timed actions, normal
operation according to control
commands.
[2] Constant On
Actions
Disable timed actions. Constant On
Actions activated.
[3] Constant O
Actions
Disable timed actions. Constant O
Actions activated.
23-09 Timed Actions Reactivation
Option: Function:
[0] Disabled After an update of time/condition
•
power cycling
•
setting date
•
time
•
change of summertime
23-09 Timed Actions Reactivation
Option: Function:
•
change of Hand Auto
mode
•
change of Constant ON
and OFF
set-up change all activated ON
actions are overridden to OFF
actions until passing the next time
for an ON action. Any OFF actions
remain unchanged.
[1] * Enabled After an update of time/condition
On and OFF actions are
immediately set to the actual time
programming of ON and OFF
actions.
See the example of a reactivation test in Illustration 3.66.
Timed Action
ON: RUN
OFF: STOP
Power
Cycle
P23-09:
Disabled
Power
Cycle
P23-09:
Disabled
P23-09:
Disable
Enable
Power
Cycle
P23-09:
Enabled
Status
RUNNING
STOPPED
130BB808.10
Illustration 3.66 Reactivation Test Diagram
