Danfoss vlt FC 102 - Page 28

e130bd468.11
99
MOTOR
U V W

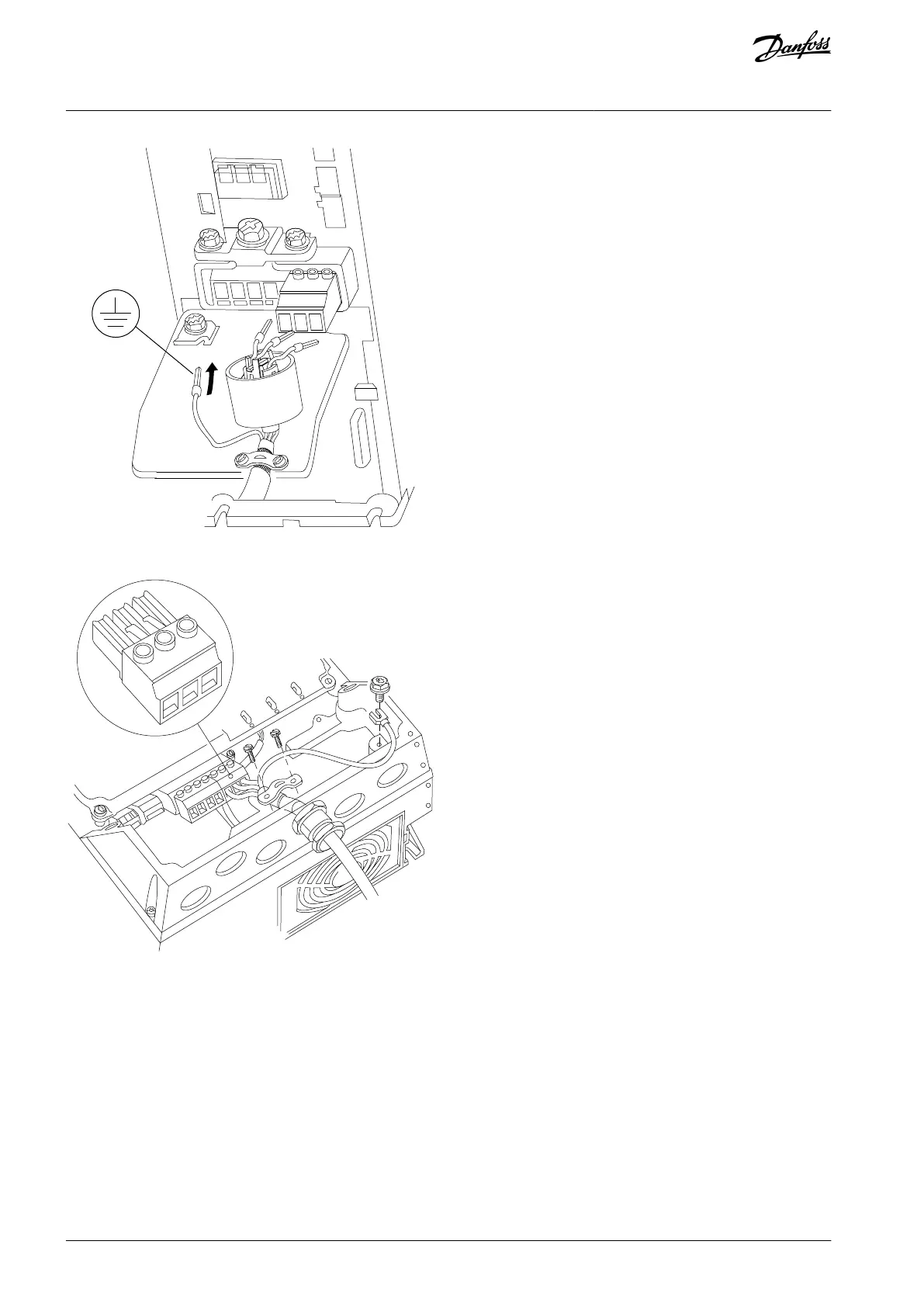

Illustration 15: Motor Connection with Category C1 Filter for Enclosure Types A2 and A3
U
V
W
96
97
98
e130bt337.11
Illustration 16: Motor Connection for Enclosure Types A4 and A5 (IP55/66/NEMA Type 12)
AQ267037536117en-000101 / 130R008328 | Danfoss A/S © 2023.09
Electrical Installation
VLT HVAC Drive FC 102
Operating Guide
