Danfoss vlt FC 102 - Page 29

e30bd469.11
U
V
W
96
97
98

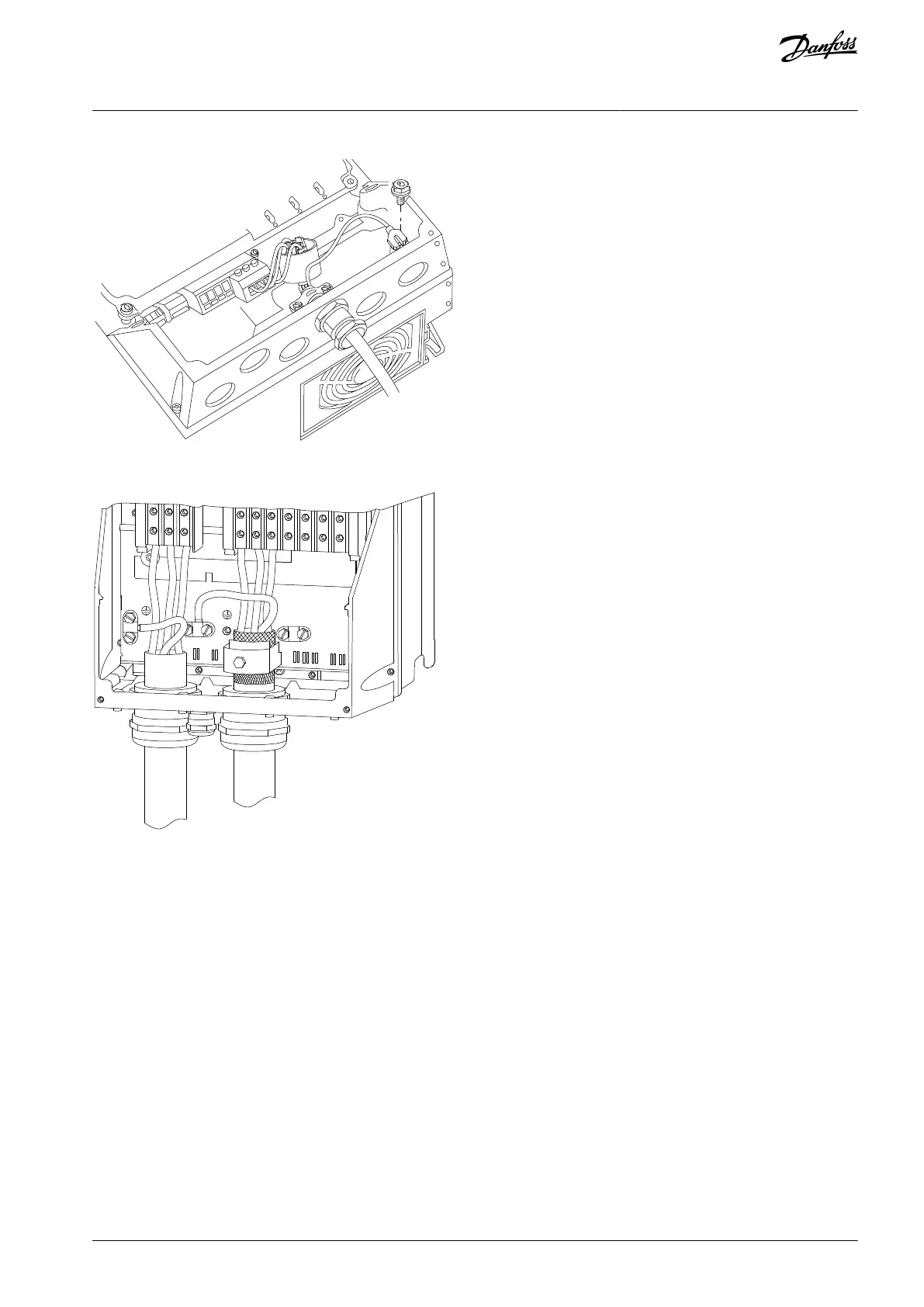

Illustration 17: Motor Connection with Category C1 filter for Enclosure Types A4 and A5 (IP55/66/NEMA Type 12)
91
L1
92
L2
93
L3
96
U
97
V
98
W
88
DC-
89
DC+
81
R-
8
R+
e30ba390.12
99
95
Illustration 18: Motor, Mains, and Ground Wiring for Enclosure Types B and C Using Shielded Cable
AQ267037536117en-000101 / 130R0083 | 29Danfoss A/S © 2023.09
Electrical Installation
VLT HVAC Drive FC 102
Operating Guide
