Step 3
Place bracket on back of the LCP, then slide down. Tighten
screws and connect cable to LCP.
NOTE
Use the provided thread cutting screws to fasten
connector to LCP. Tightening torque: 1.3 Nm.

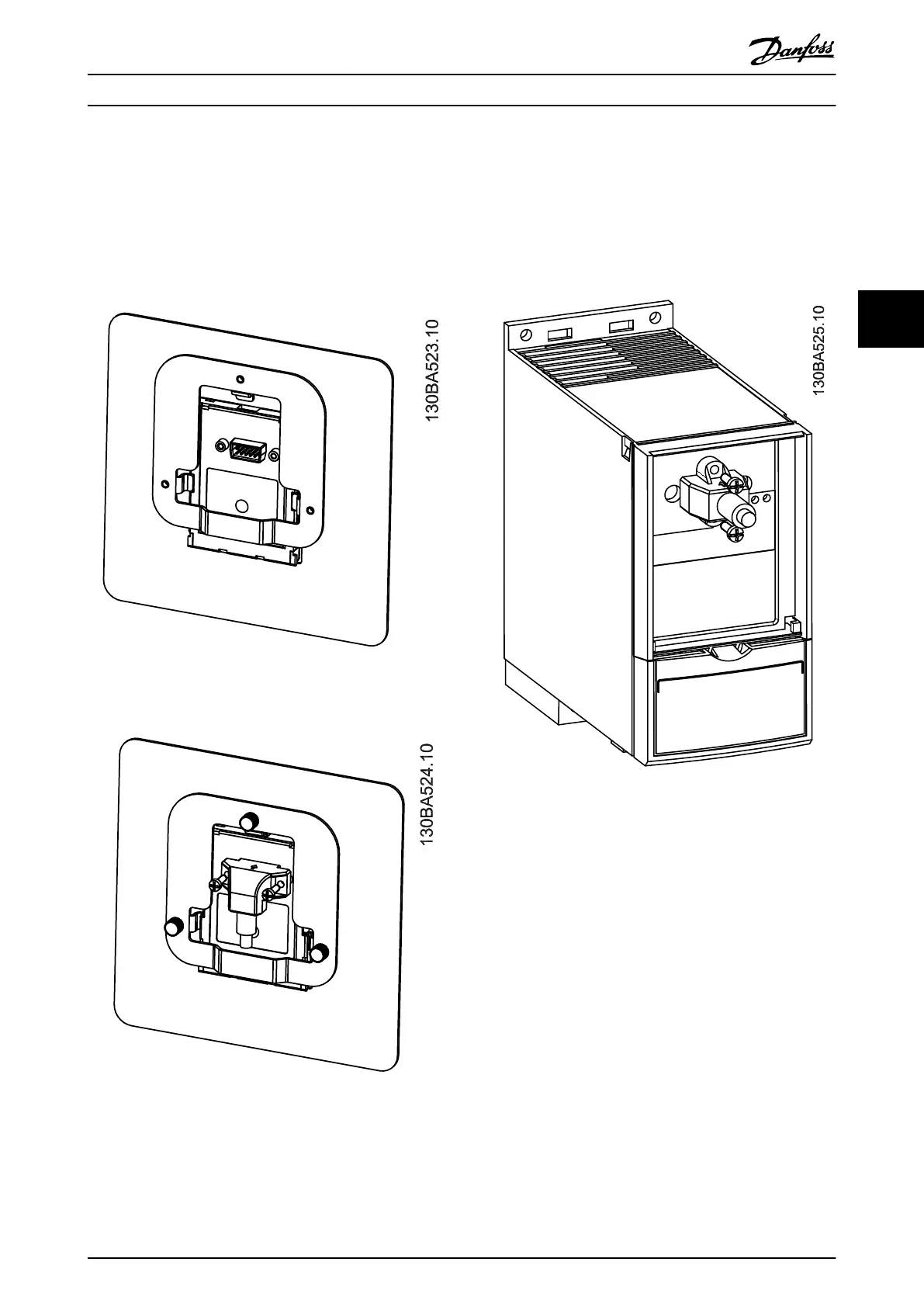

Illustration 4.7
Illustration 4.8
Step 4
Connect cable to frequency converter.
NOTE
Use the provided thread cutting screws to fasten
connector to the frequency converter. Tightening torque:
1.3 Nm.
Illustration 4.9
VLT
®
Micro Drive Selection VLT
®
Micro Drive FC 51 Design Guide
MG02K202 - VLT
®
is a registered Danfoss trademark
