Danfoss VLT Micro Drive FC 51 - Mechanical Dimensions

6.4 Mechanical Dimensions
A template for drilling can be found on the flap of the
packaging.
B
a A
a A
a A
a A
a A
C
C
C C C
b
B
b
B
b
B
b
B
b
Ø 7mm
M5
M4
M3
M2
M1
Ø 7mm Ø 5.5mm Ø 4.5mm
130BB321.11
Ø 4.5mm

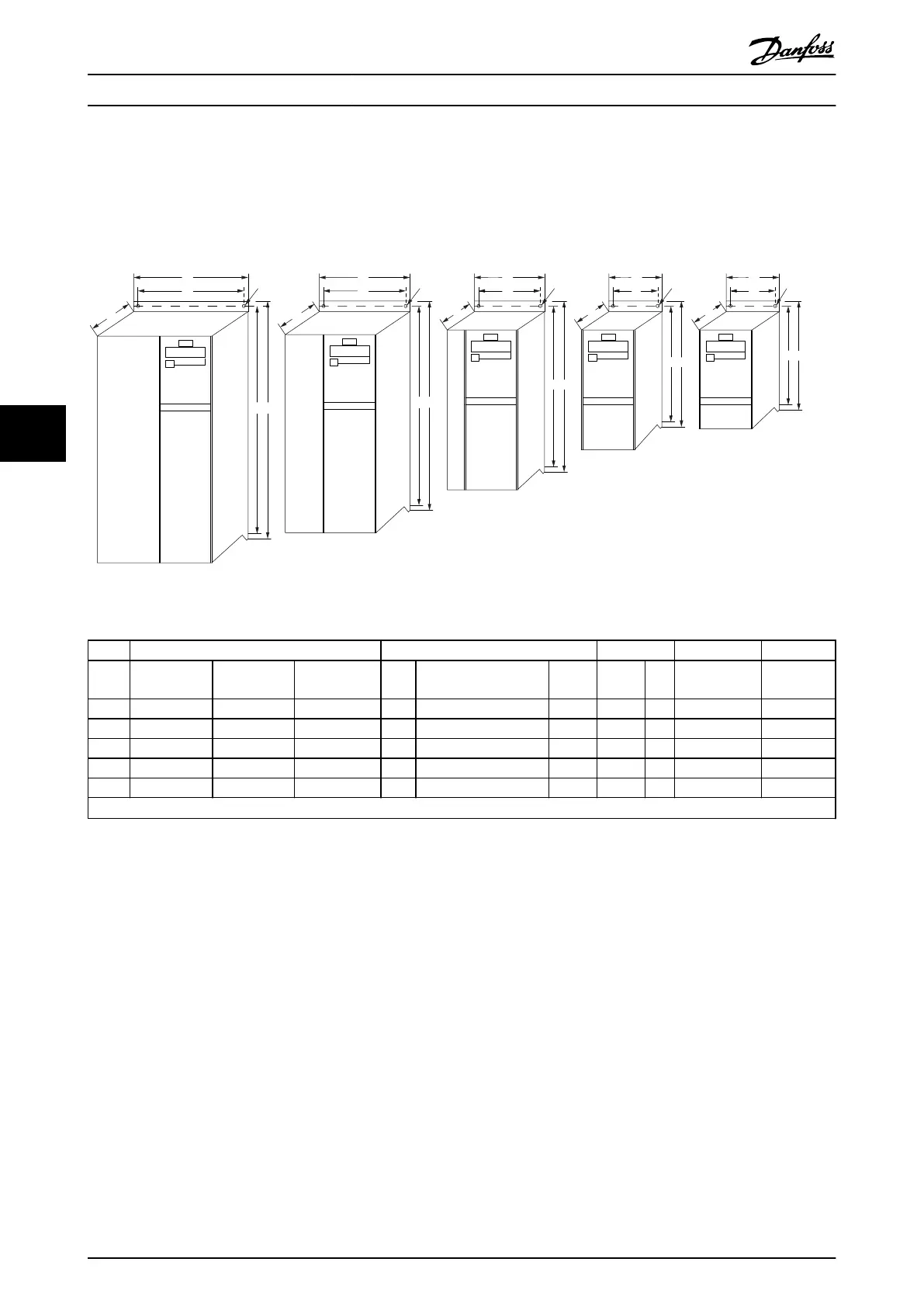

Illustration 6.3 Mechanical Dimensions
Power [kW] Height [mm] Width [mm]
Depth
1)
[mm]
Max. Weight
Frame 1X200-240 V 3X200-240 V 3X380-480 V A
A (incl. decoupling
plate)
a B b C kg
M1 0.18-0.75 0.25-0.75 0.37-0.75 150 205 140.4 70 55 148 1.1
M2 1.5 1.5 1.5-2.2 176 230 166.4 75 59 168 1.6
M3 2.2 2.2-3.7 3.0-7.5 239 294 226 90 69 194 3.0
M4 11.0-15.0 292 347.5 272.4 125 97 241 6.0
M5 18.5-22.0 335 387.5 315 165 140 248 9.5
1)
For LCP with potentiometer, add 7.6 mm.
Table 6.1 Mechanical Dimensions
