Danfoss VLT Micro Drive FC 51 Design Guide

3.
Press [
▲
] [
▼
]
to browse through the parameters
in the Quick Menu.
4. Press [Ok] to select a parameter.
5.
Press [
▲
] [
▼
] to change the value of a parameter
setting.
6. Press [Ok] to accept the change.
7.
To exit, press either [Back] twice to enter Status
,
or
press [Menu] once to enter Main Menu.

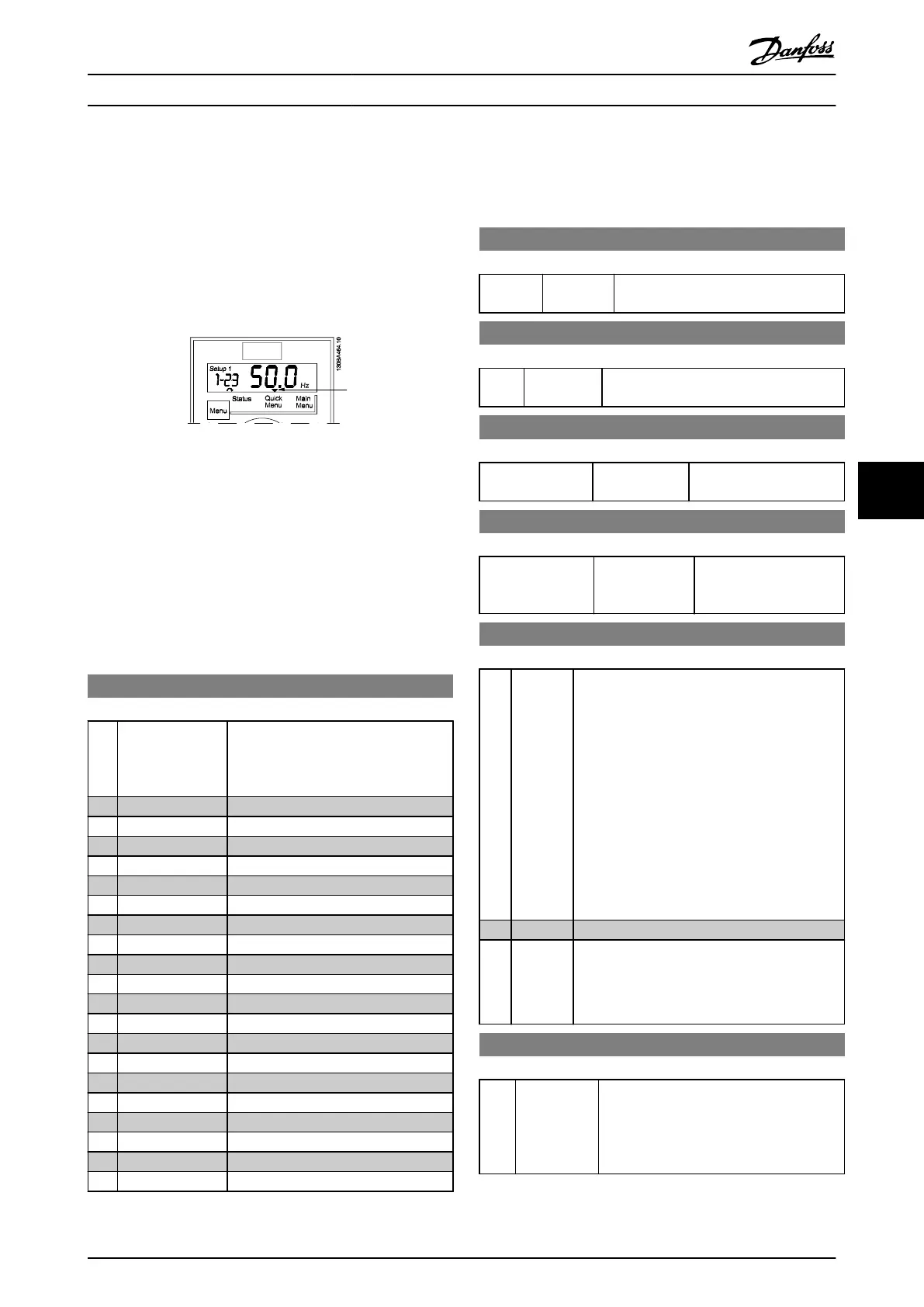

Illustration 7.9 Indicating Quick Menu Mode
7.4 Quick Menu Parameters
7.4.1 Quick Menu Parameters - Basic
Settings
QM1
Below are descriptions of all parameters found in the Quick
Menu.
＊=Factory setting.
1-20 Motor Power [kW]/[HP] (P
m.n
)
Option: Function:
Enter motor power from nameplate
data.
Two sizes down, one size up from
nominal VLT rating.
[1] 0.09 kW/0.12 HP
[2] 0.12 kW/0.16 HP
[3] 0.18kW/0.25 HP
[4] 0.25 kW/0.33 HP
[5] 0.37kW/0.50 HP
[6] 0.55 kW/0.75 HP
[7] 0.75 kW/1.00 HP
[8] 1.10 kW/1.50 HP
[9] 1.50 kW/2.00 HP
[10] 2.20 kW/3.00 HP
[11] 3.00 kW/4.00 HP
[12] 3.70 kW/5.00 HP
[13] 4.00 kW/5.40 HP
[14] 5.50 kW/7.50 HP
[15] 7.50 kW/10.0 HP
[16] 11.00 kW/15.00 HP
[17] 15.00 kW/20.00 HP
[18] 18.50 kW/25.00 HP
[19] 22.00 kW/29.50 HP
[20] 30.00 kW/40.00 HP
NOTE
Changing this parameter
affects parameter 1-22 to 1-25,
1-30, 1-33 and 1-35.
1-22 Motor Voltage (U_
m.n
)
Range: Function:
230/400 V [50-999 V] Enter motor voltage from nameplate
data.
1-23 Motor Frequency (f_
m.n
)
Range: Function:
50 Hz* [20-400 Hz] Enter motor frequency from nameplate
data.
1-24 Motor Current (I_
m.n
)
Range: Function:
M-type dependent* [0.01-100.00 A] Enter motor current from
nameplate
data.
1-25 Motor Nominal Speed (n_
m.n
)
Range: Function:
M-type Dependent* [100-9999 RPM] Enter motor nominal
speed from nameplate
data.
1-29 Automatic Motor Tuning (AMT)
Option: Function:
Use AMT to optimize motor performance.
NOTE
This parameter cannot
be changed while
motor runs.
1. Stop the frequency converter - make
sure motor is at standstill
2.
Choose [2] Enable AMT
3. Apply start signal
- Via LCP: Press [Hand On]
- Or in Remote On mode: Apply start
signal on terminal 18
[0] * Off AMT function is disabled.
[2] Enable
AMT
AMT function starts running.
NOTE
To gain optimum tuning of the frequency
converter, run AMT on a cold motor.
3-02 Minimum Reference
Range: Function:
0.00* [-4999-4999] Enter value for minimum reference.
The sum of
all internal and external
references are clamped (limited) to the
minimum reference value, 3-02 Minimum
Reference
.
Programming
VLT
®
Micro Drive FC 51 Design Guide
MG02K202 - VLT
®
is a registered Danfoss trademark
65
7 7
