Danfoss VLT Micro Drive FC 51 Design Guide

4.1.13 FC 51 DIN Rail Kit Mounting
Instruction

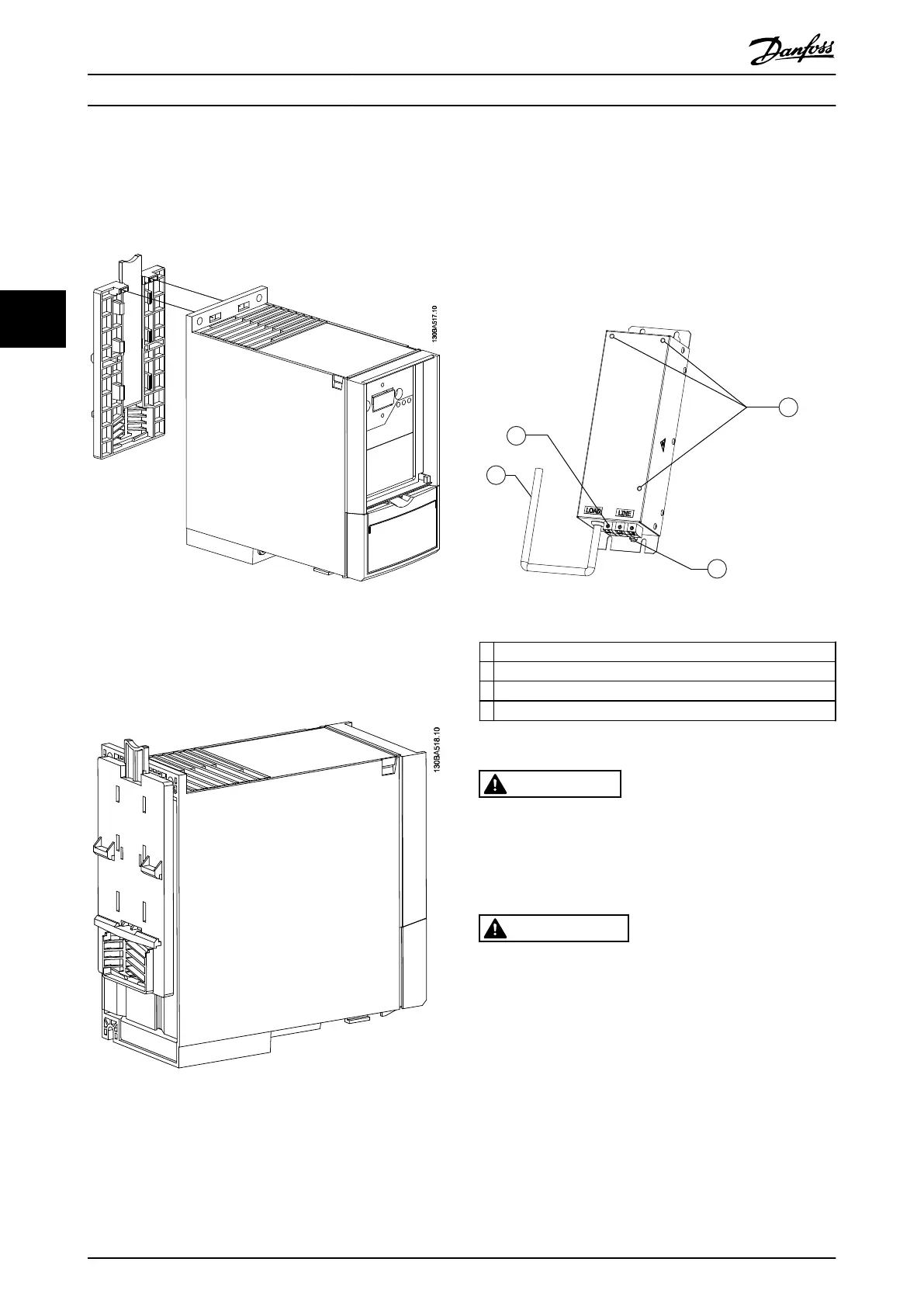

Step 1
Mount plastic part on frequency converter.
Illustration 4.28
Step 2
Fit frequency converter on DIN rail (Din Rail kit is only for
M1 and M2).
Illustration 4.29
4.1.14 Line Filter MCC 107 Installation
Instructions
Line Filters of the type MCC 107 combine a harmonic filter
and
an EMC filter. The line filters improve performance of
the line current to the VLT
®
Micro Drive FC 51. The three
different Line Filter frame sizes correspond to the M1, M2
and M3 Micro Drives.
4
130BC160.10
2
3
1
Illustration 4.30 Line Filter MCC 107 with Micro Drive FC 51
1 Mounting holes for frequency converter
2 Input terminal
3 Output line
4 Protective earth (PE)
Table 4.7
CAUTION
Hot surfaces
Risk of high surface temperatures.
•
Do NOT touch the Line Filter during operation or
wear protective gloves
WARNING
High voltage
Risk of electric shock.
•
Never carry out maintenance work on the Line
Filter during operation. Wait at least 4 minutes
after the equipment has been disconnected from
the frequency converter before touching any
potentially live parts.
NOTE
•
Never repair a defective filter
VLT
®
Micro Drive Selection VLT
®
Micro Drive FC 51 Design Guide
38 MG02K202 - VLT
®
is a registered Danfoss trademark
44
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

Danfoss VLT Micro Drive FC 51 Specifications

General

Enclosure	IP20
Output Voltage	0-100% of supply voltage
Altitude	Up to 1000 m without derating
Power Range	0.18-22 kW
Control Method	V/f
Communication	Modbus RTU
Protection Features	Over-voltage, under-voltage, over-current, over-temperature
Ambient Temperature	-10°C to 50°C
Storage Temperature	-25°C to 65°C
Relative Humidity	5-95% (non-condensing)
Input Voltage	200-240 V, 380-480 V
Braking Function	Integrated braking chopper (optional)
