Danfoss VLT Micro Drive FC 51 Design Guide

L1
L2
L3
PE
Min. 16 mm
2
Equalizing cable
Control cables
All cable entries in
one side of panel
Earthing rail
Cable insula-
tion stripped
Output con-
tactor etc.
Motor cable
Motor, 3 phases and
PLC etc.
Panel
Mains-supply
Min. 200mm
between control
cable, mains cable
and between mains
motor cable
PLC
Protective earth
Reinforced protective earth
130BB965.10

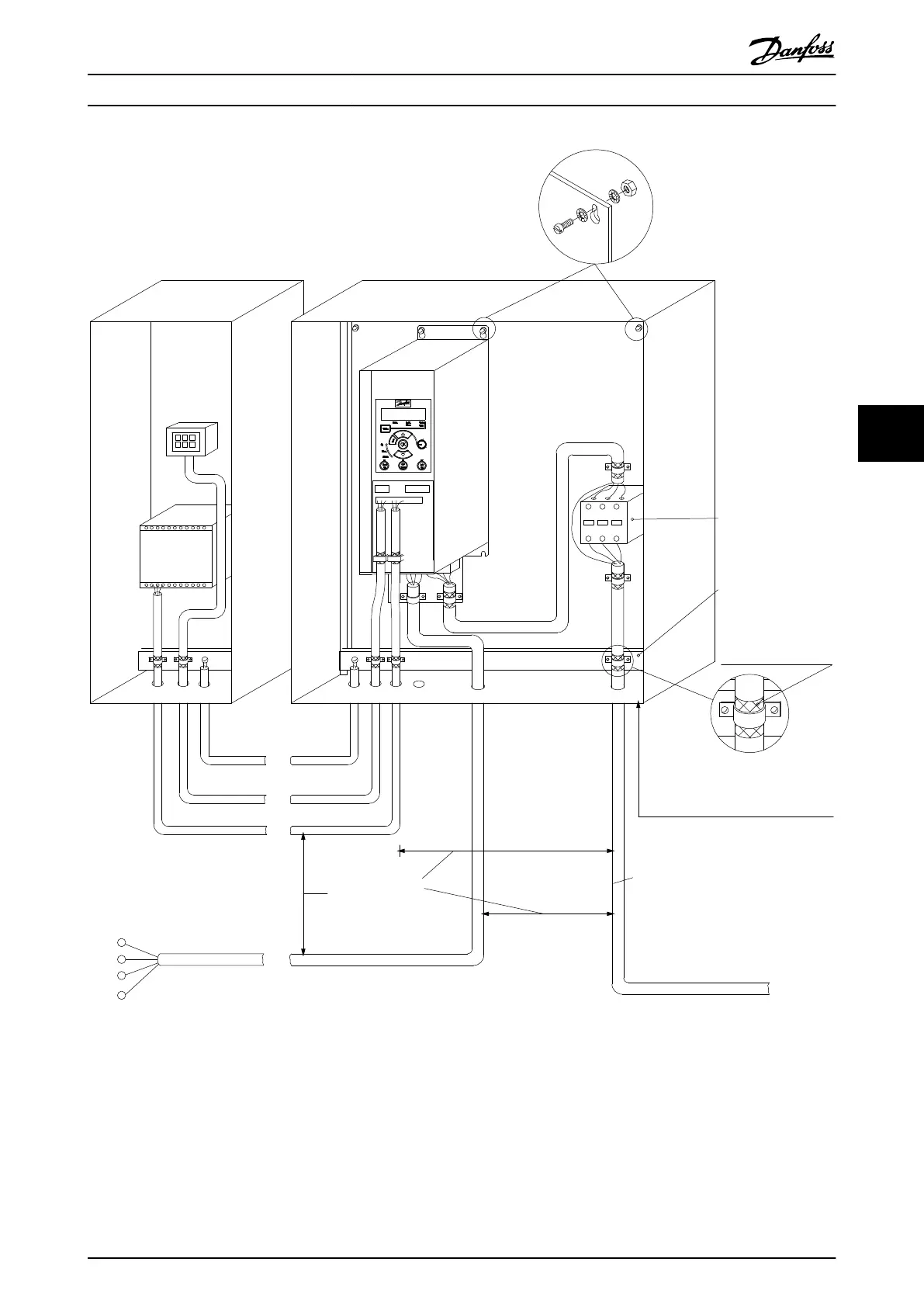

Illustration 6.9 EMC-correct Electrical Installation
NOTE
For North America use metal conduits instead of shielded
cables.
How to Install
VLT
®
Micro Drive FC 51 Design Guide
MG02K202 - VLT
®
is a registered Danfoss trademark
53
6 6
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

Danfoss VLT Micro Drive FC 51 Specifications

General

Enclosure	IP20
Output Voltage	0-100% of supply voltage
Altitude	Up to 1000 m without derating
Power Range	0.18-22 kW
Control Method	V/f
Communication	Modbus RTU
Protection Features	Over-voltage, under-voltage, over-current, over-temperature
Ambient Temperature	-10°C to 50°C
Storage Temperature	-25°C to 65°C
Relative Humidity	5-95% (non-condensing)
Input Voltage	200-240 V, 380-480 V
Braking Function	Integrated braking chopper (optional)
