DataCard CP80 Plus

CP80 and CP80 Plus Service Manual 6-13
Enclosure Components
Swingarm Cover
Removal Procedure

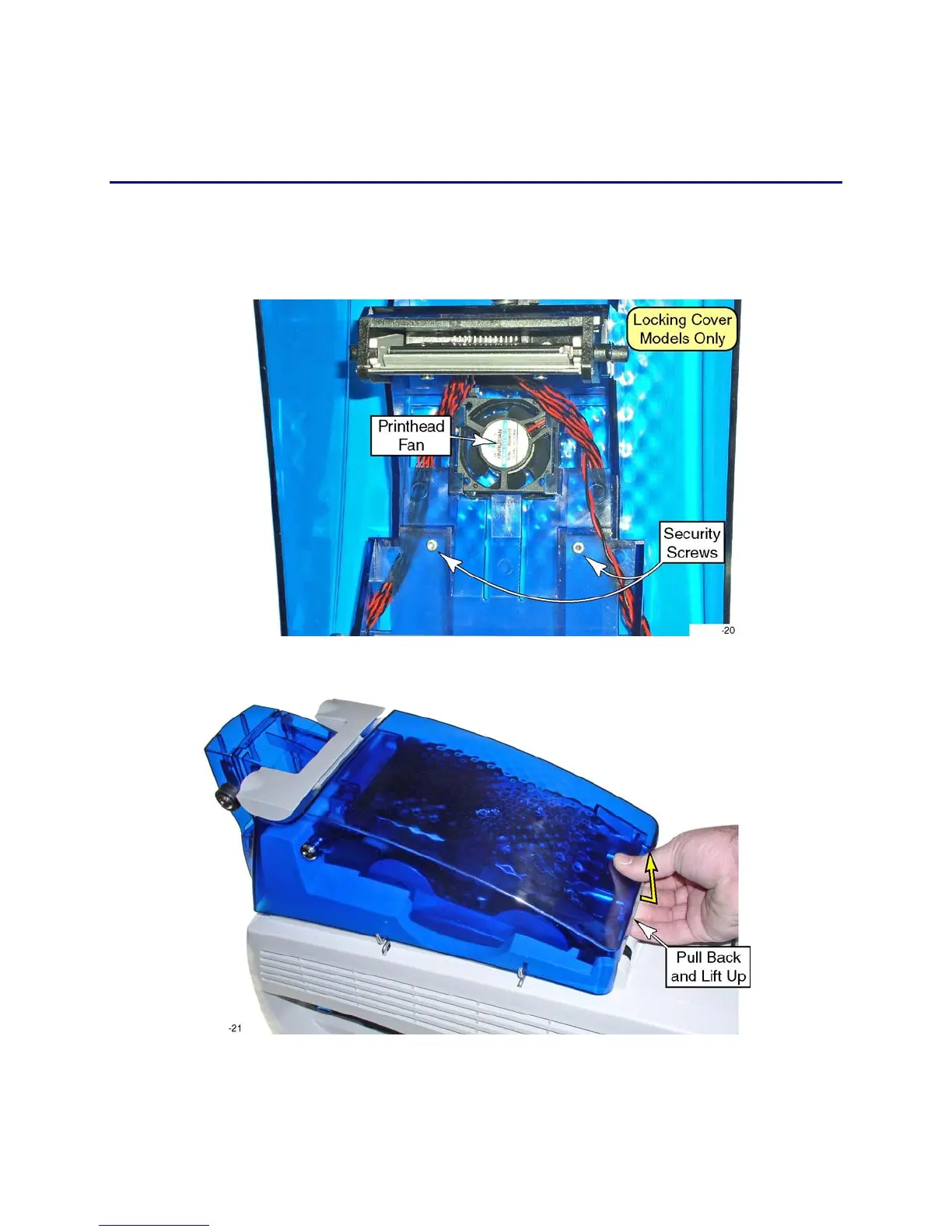

1. If the printer is equipped with locking covers, you will need to remove the
two security screws from the inside of the swingarm just below the printhead
fan.
2. Place your fingertips under the back of the cover and pull back to release the
retaining tab.
