6-76 Removal and Replacement

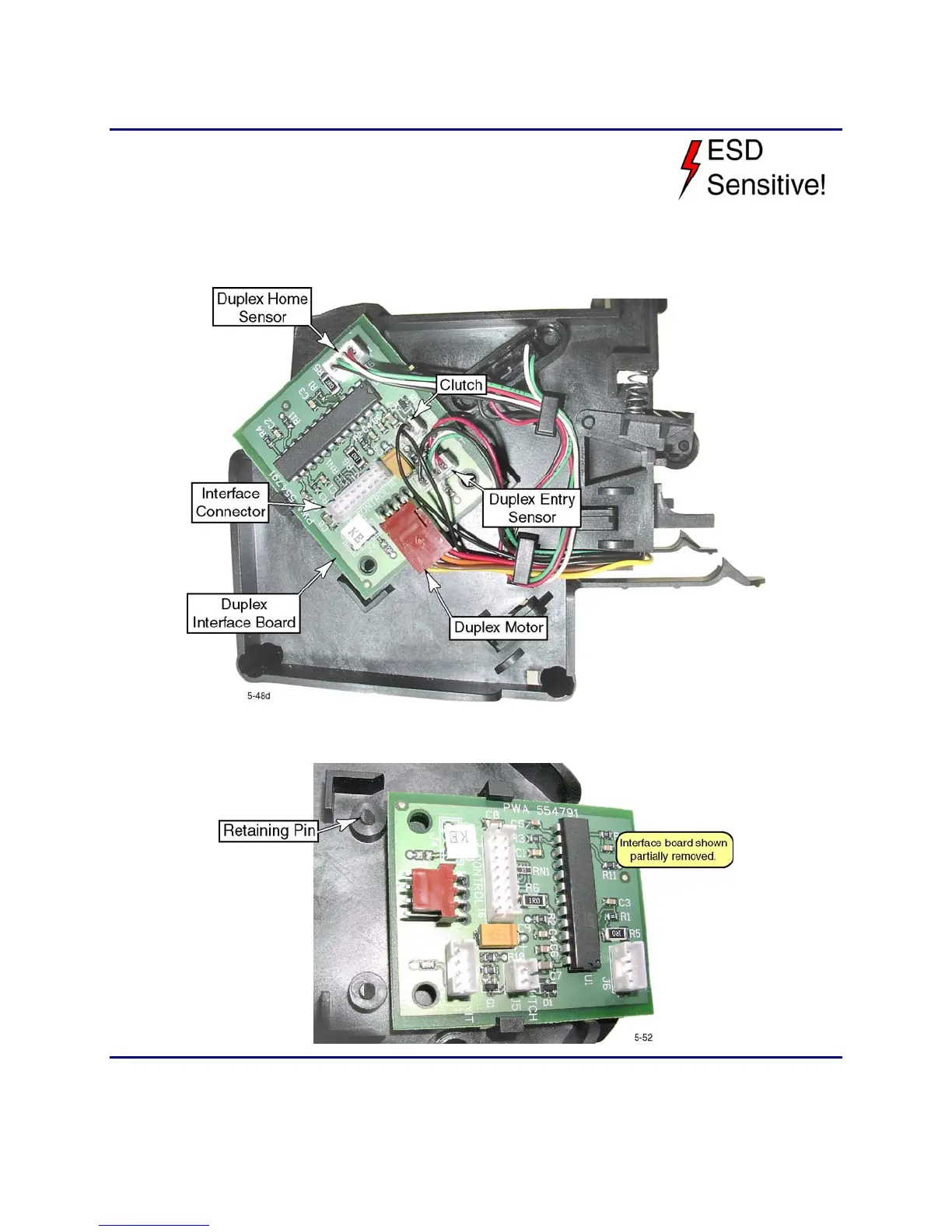

Duplex Interface Board
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Disconnect all connectors from the duplex interface board.
5. Lift the edge of the board slightly and slide it off the retaining pins. Remove
the board.
Follow-up Procedure
Print several test cards to ensure the duplex is operating properly.
