6-78 Removal and Replacement
Duplex Motor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).

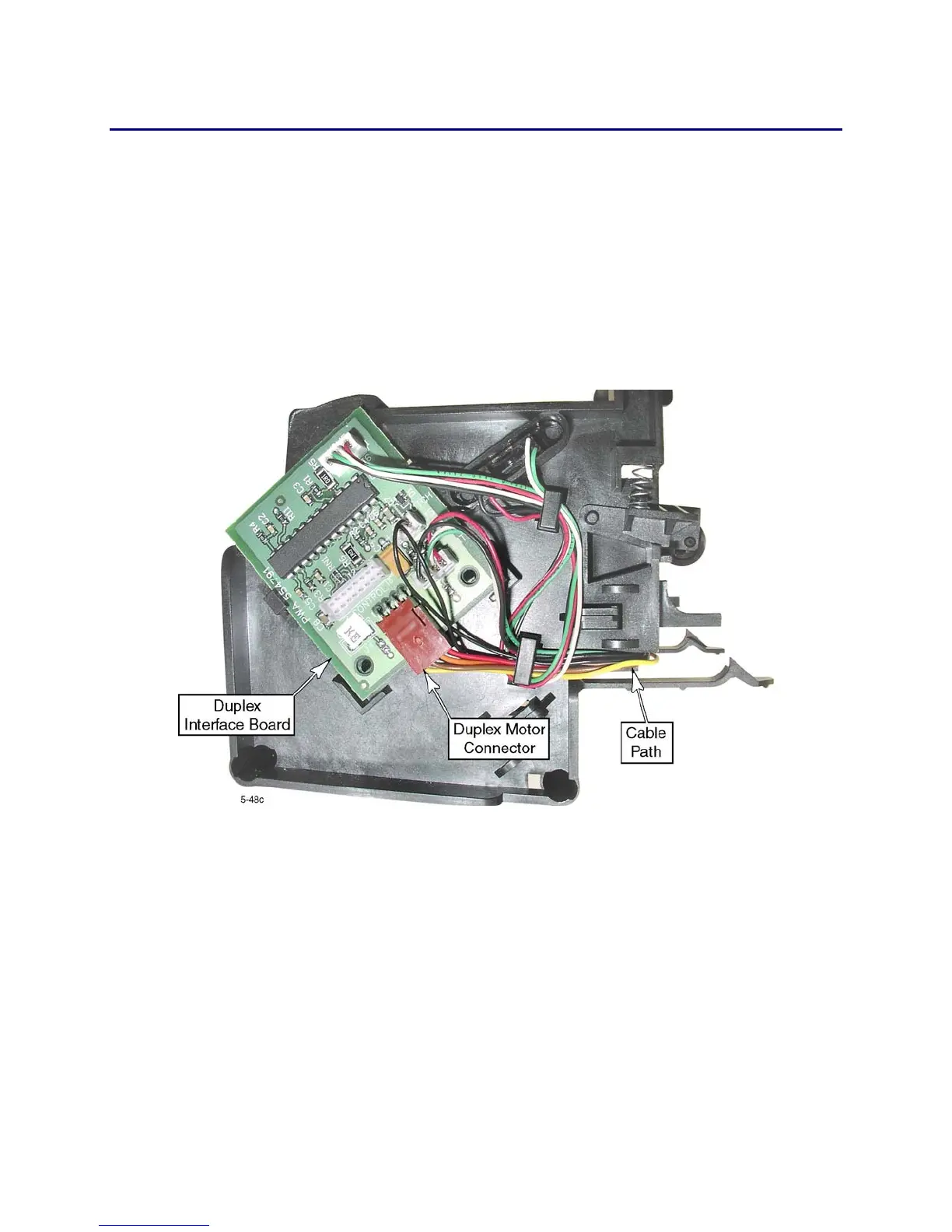

4. Disconnect the duplex interface cable from the interface board.
5. Remove the
Upper Duplex Module (page 6-71) from the printer.
6. Disconnect the motor connector from the interface board.
7. Free up the cable from the retaining tabs.
To Next Page
