DataCard CP80 Plus

CP80 and CP80 Plus Service Manual 6-79

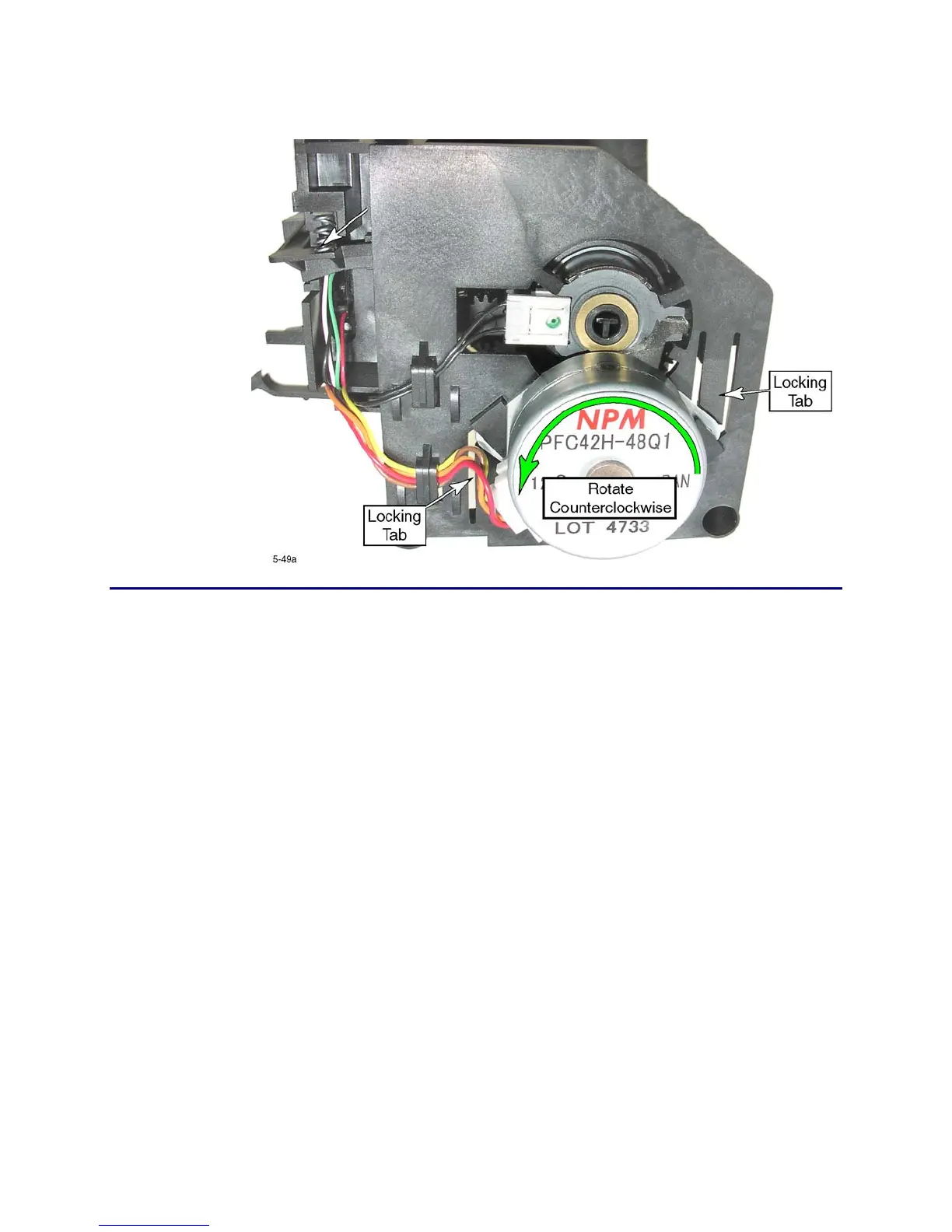

8. Simultaneously press in on the locking tabs, and rotate the motor to remove
it.
Replacement Notes
• When inserting the motor into the duplex chassis, make sure the gears mesh
properly.
• Print several test cards to verify that the duplex is functioning properly.
