6-70 Removal and Replacement
RFID Antenna
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Disconnect the cable connector from the bottom of the antenna board.

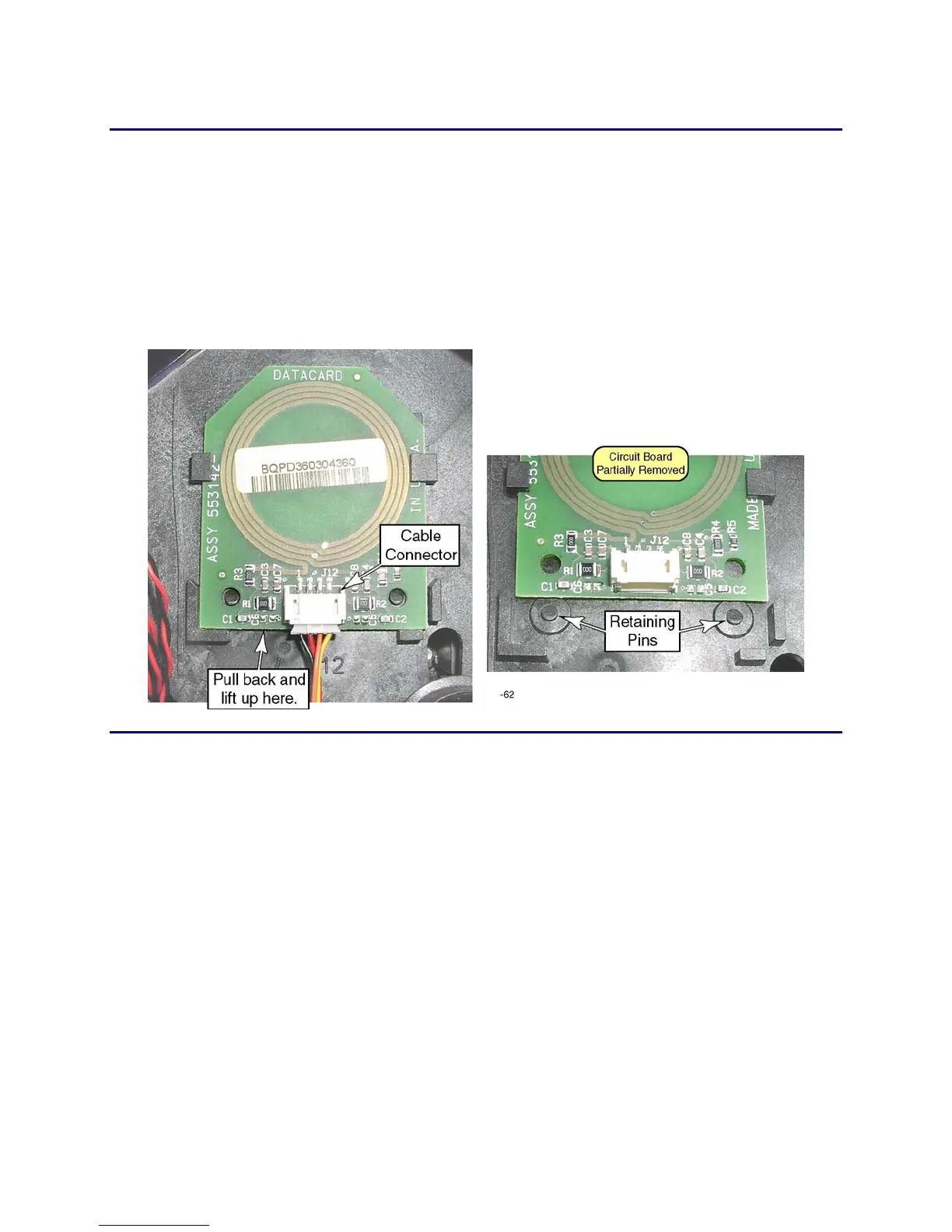

5. With the tip of your finger or a screwdriver, pull back slightly on the bottom
of the circuit board, and lift the board out of the slots.
Follow-up Procedure
• Make sure the cable is routed through the opening in the chassis side wall.
• Place a ribbon cartridge in the printer and verify that the printer is able to
identify the type of ribbon.
