6-120 Removal and Replacement
Laminator Motors
Card Transport Motor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15) and the Upper Printer Assembly
(page
6-38).
3. Remove the
Upper Foil Drive Assembly (page 6-126).
4. Remove the
Upper Heater Assembly (page 6-124) from the laminator.

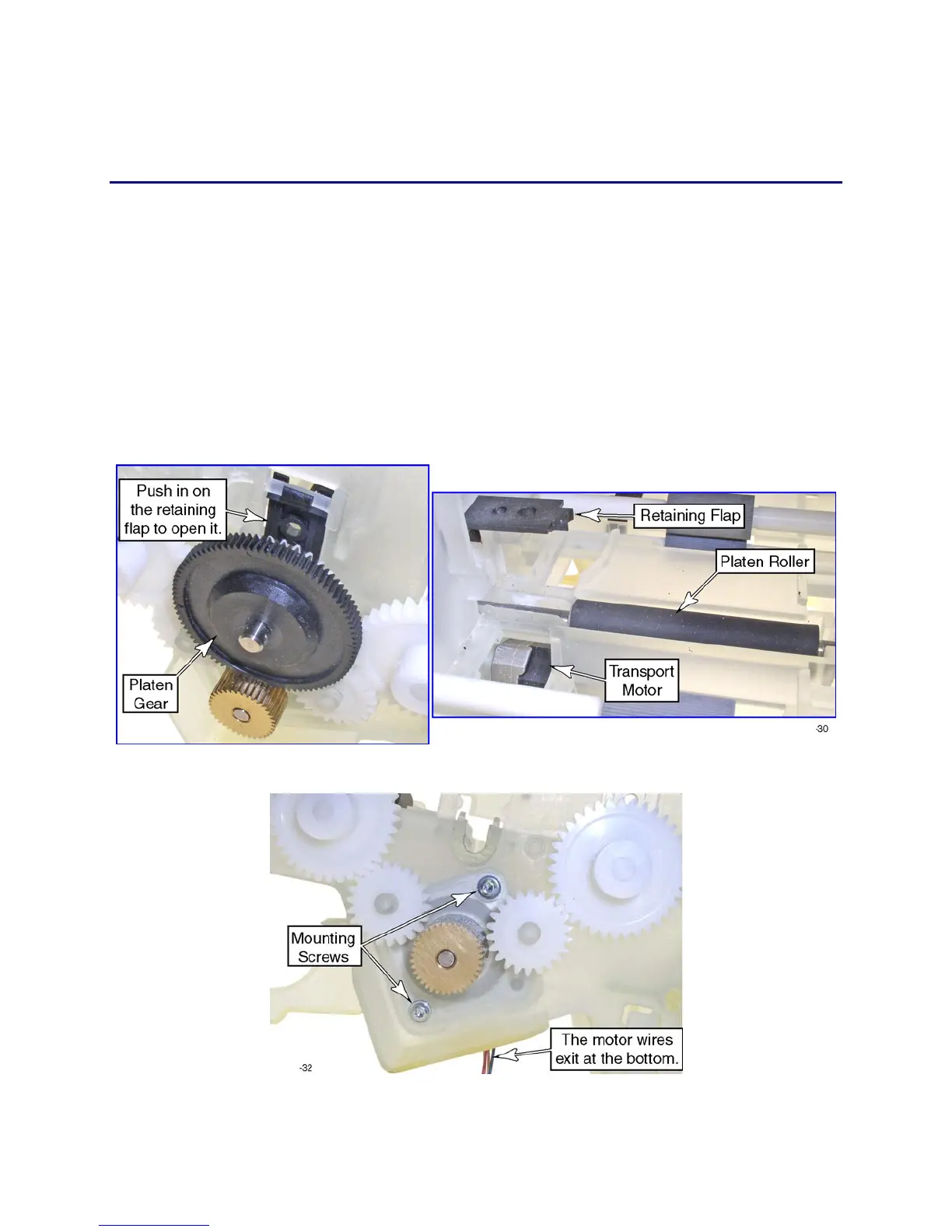

5. Remove the upper platen roller:
A. Open the retaining flap above the platen roller.
B. Lift the gear-end of the platen roller, and pull it out the side of the chassis.
6. Remove the two screws that secure the transport motor to the chassis.
