CP80 and CP80 Plus Service Manual 6-55
Pick Roller
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. To access the pick motor mounting screws, remove the card hopper.

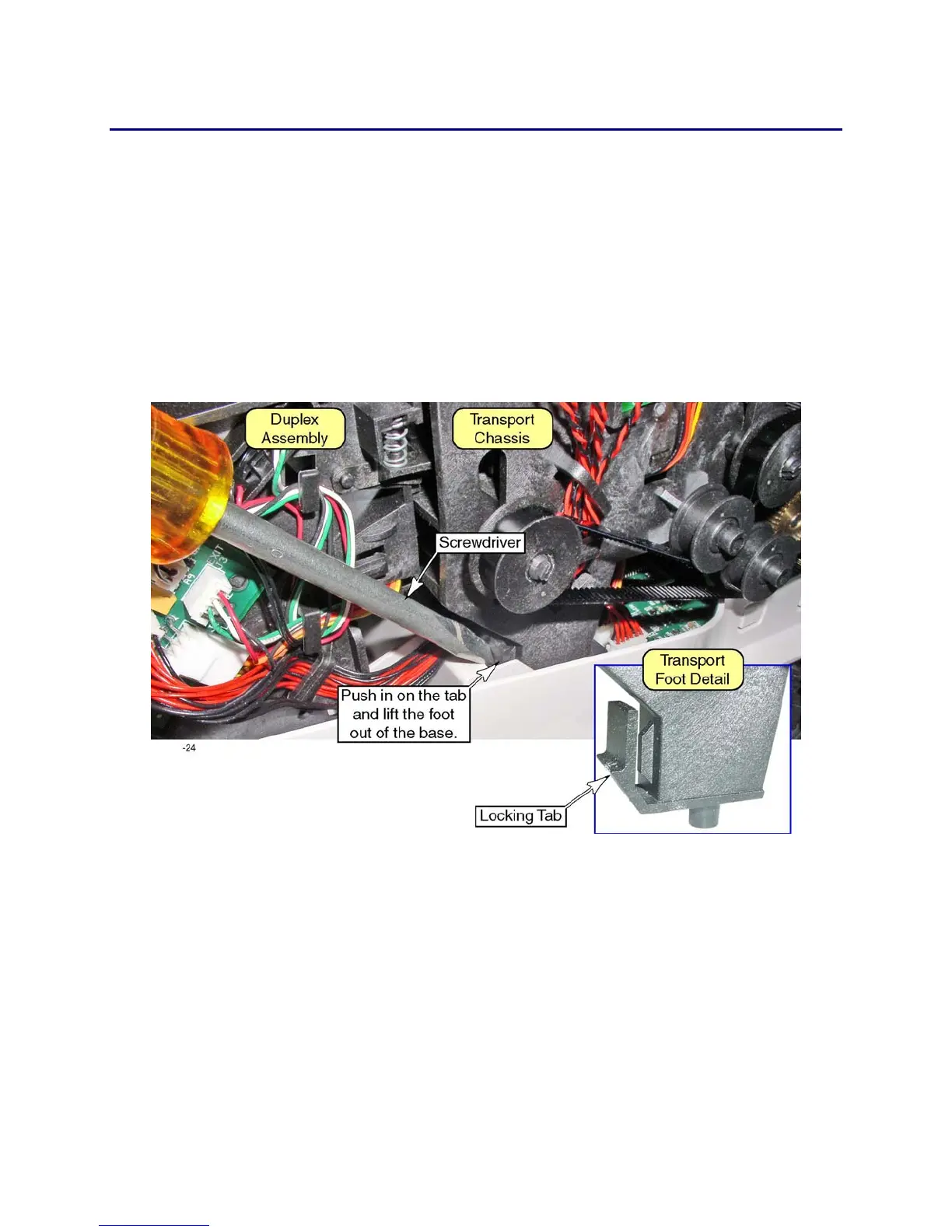

A. Press in on the transport chassis locking tabs, and lift up on the back of
the transport assembly.
B. Slide the transport chassis back, and simultaneously pull forward on the
card hopper. Remove the card hopper.
